2DA/2DB-1
1-6-9
(5) Detaching and refitting the drawer forwarding pulley and drawer paper feed pulley (20 ppm model only)
Follow the procedure below to replace the drawer forwarding pulley and drawer paper feed pulley.
Procedure
1. Remove the main body from the paper feeder
(see page 1-6-7).
2. Remove the lower paper feed unit (see page
1-6-8).
3. Remove the drawer rear cover.

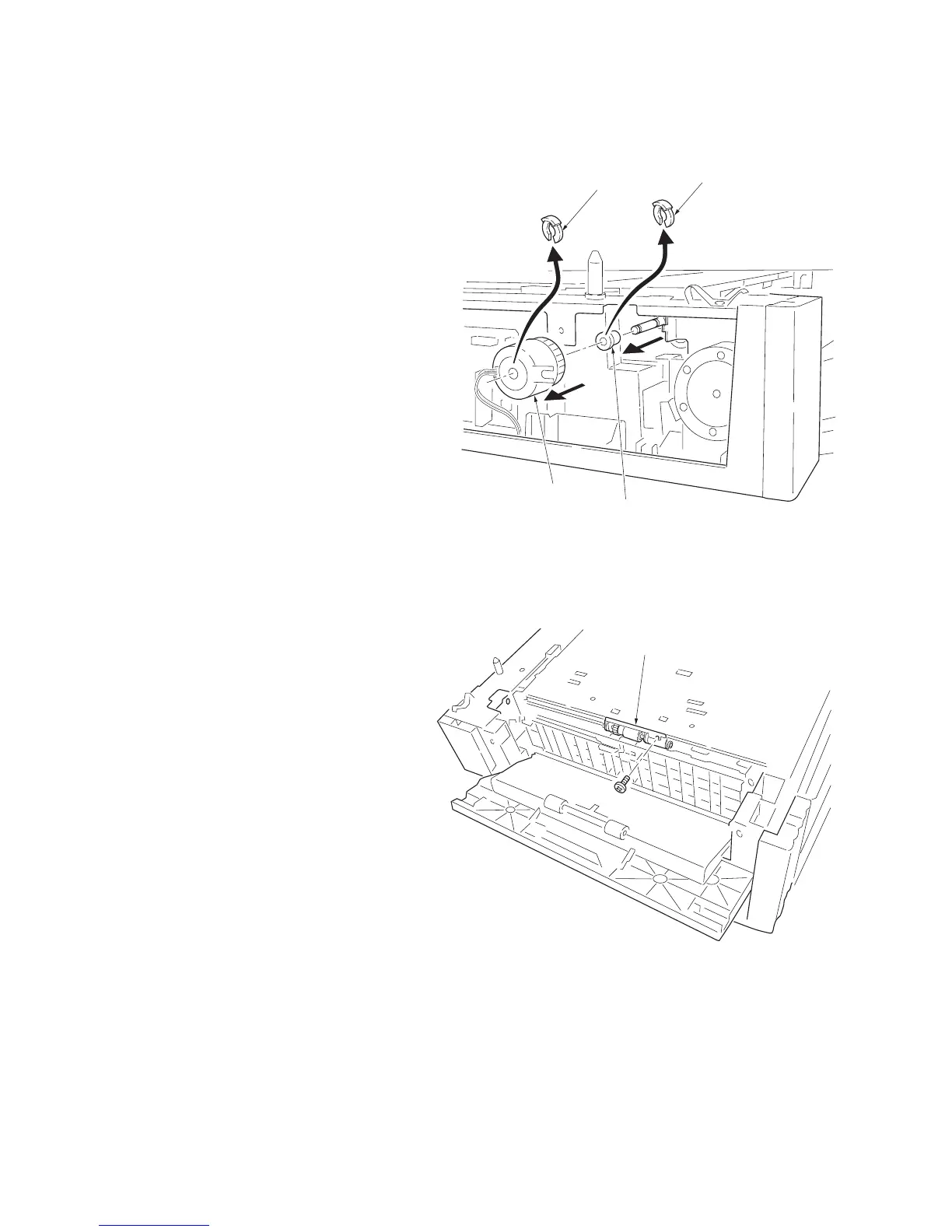

4. Remove the stop ring and drawer paper feed
clutch from the machine rear side. Remove
the stop ring and bushing.
5. Remove the screw and then the upper paper
feed unit.
Drawer paper
feed clutch
Stop ring
Bushin
g
Stop ring
Upper paper feed unit
Figure 1-6-13
Figure 1-6-14
