(4) Detaching and refitting the drawer separation pulley (20 ppm model only)
Follow the procedure below to replace the drawer separation pulley.
Procedure

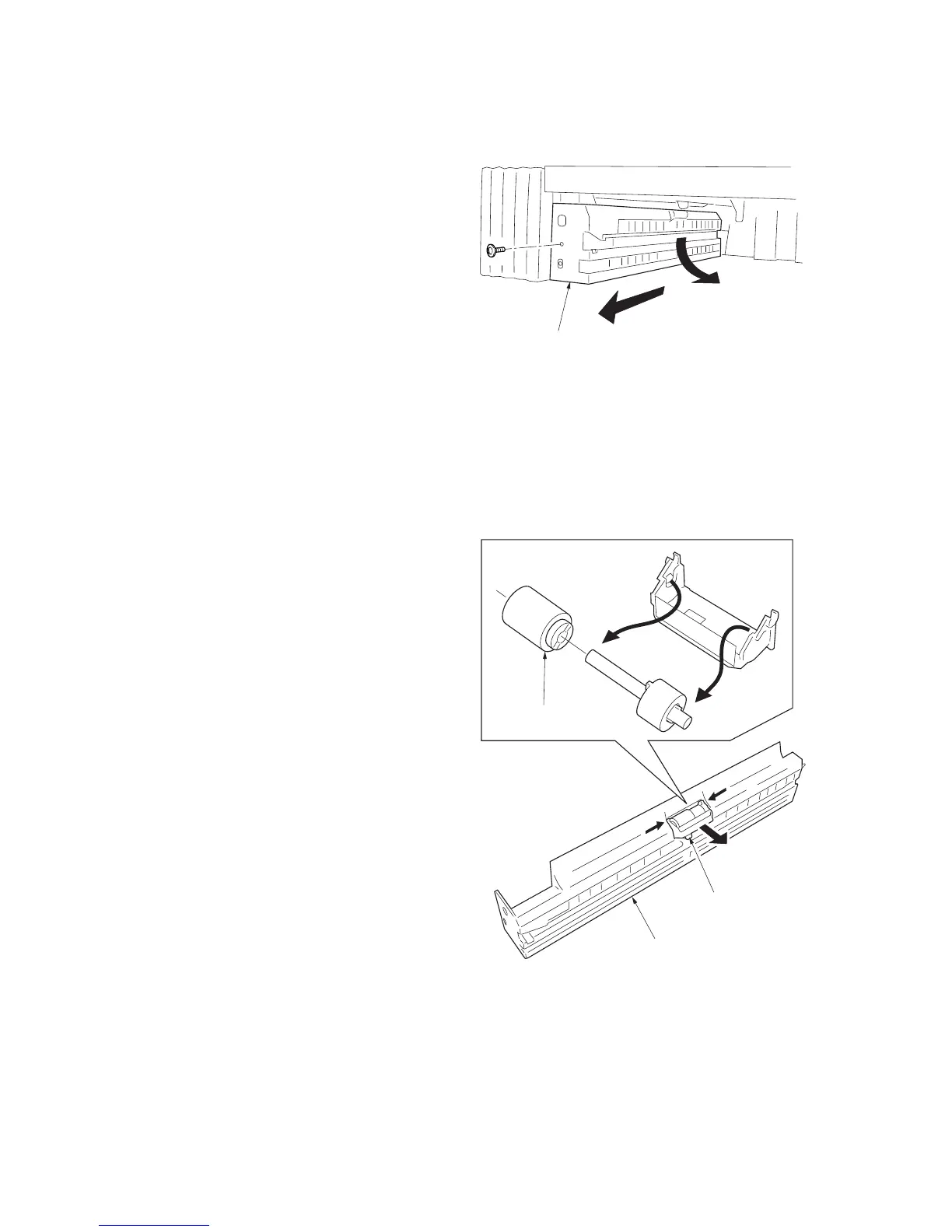

1. Pull out the drawer. Open the drawer left
cover.
2. Remove the screw and then the lower paper
feed unit.
3. Remove the drawer separation pulley unit
from the lower paper feed unit.
4. Remove the drawer separation pulley from
the drawer separation pulley unit.
5. Replace the drawer separation pulley and
refit all the removed parts.
Lower
p
a
p
er feed unit
Drawer separation pulley
Lower paper feed unit
Drawer separation
pulley unit
Figure 1-6-11
Figure 1-6-12
