Utax cd 1120 User Manual

2DA/2DB-1
1-6-45

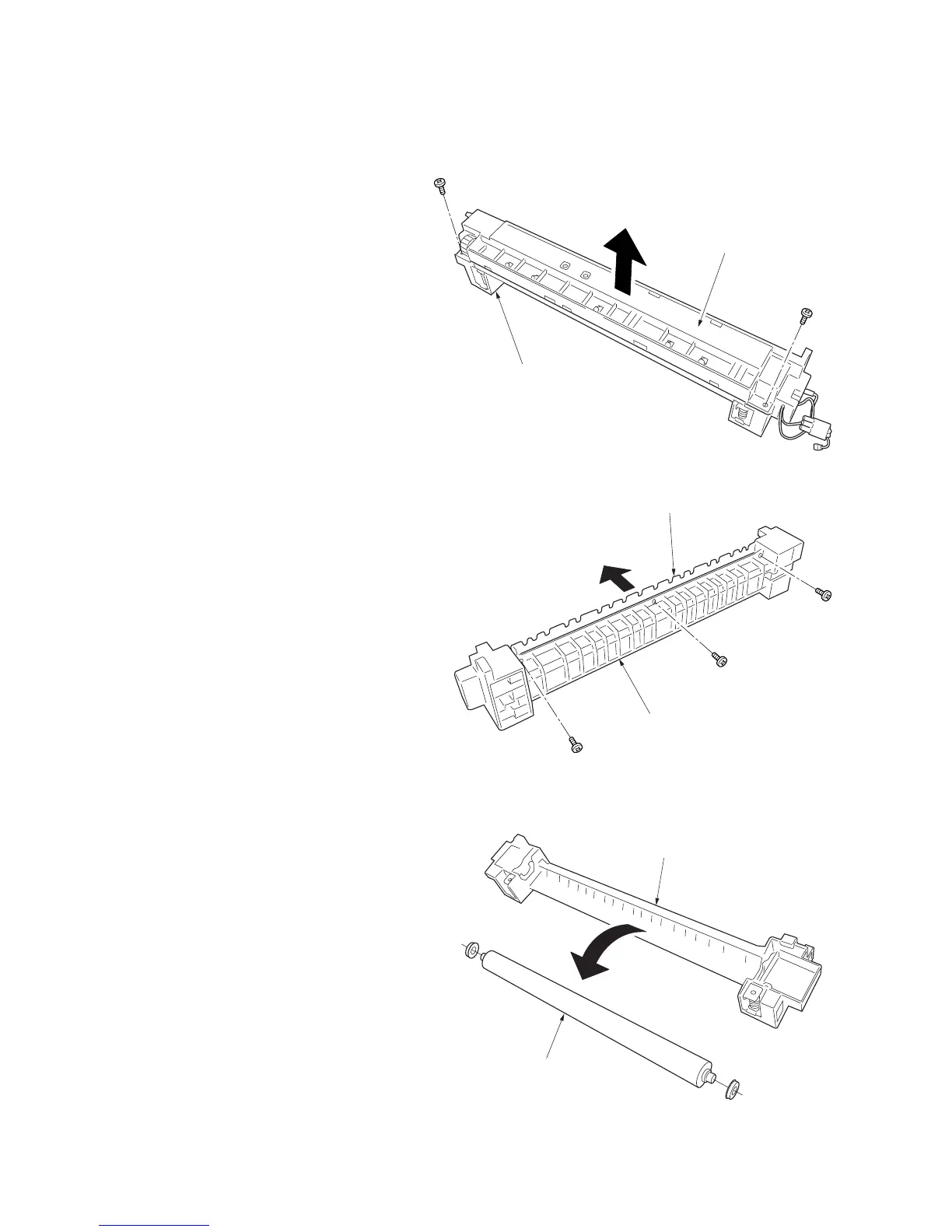

(2) Detaching and refitting the press roller
Follow the procedure below to replace the press roller.
Procedure
1. Remove the fixing unit (see page 1-6-43).
2. Remove the two screws and then separate
the fixing right unit and left unit.
3. Remove the three screws holding the press
roller guide from fixing right unit.
4. Remove the press roller from the fixing right
unit.
5. Replace the press roller and refit all the
removed parts.
Fixing left unit
Fixing right unit
Press roller guide
Fixing right unit
Press roller
Fixing right unit
Figure 1-6-82
Figure 1-6-81
Figure 1-6-80
