2DA/2DB
2-1-13
2-1-5 Transfer and separation sections
The transfer and separation sections consists of the transfer roller, separation electrode and drum separation claws.
A high voltage generated by the high-voltage PCB (HVTPCB) is applied to the transfer roller for transfer charging.
Paper after transfer is separated from the drum by applying separation bias that is output from the high-voltage PCB
(HVTPCB) to the separation electrode.

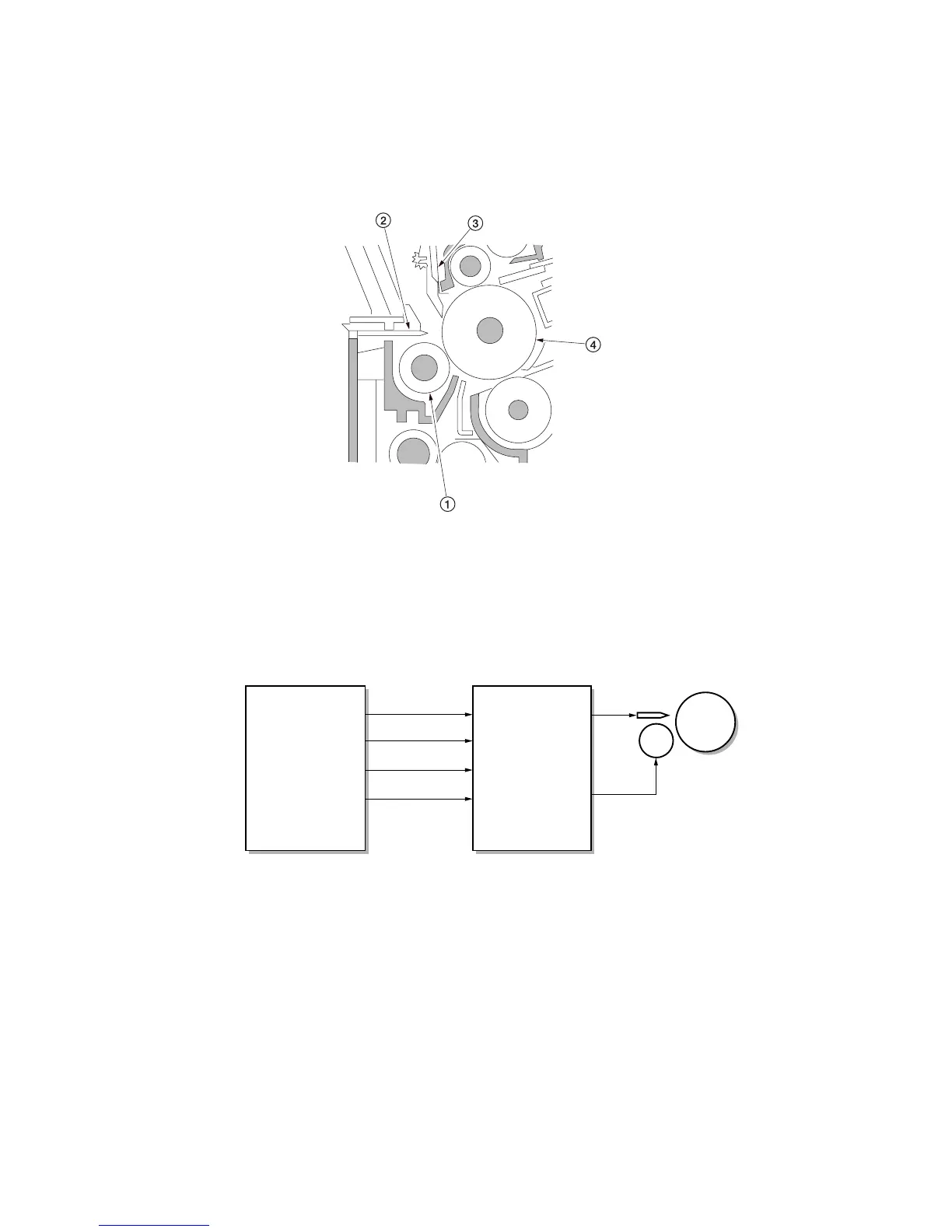

Figure 2-1-16 Transfer and separation sections block diagram
Figure 2-1-15 Transfer and separation sections
SHVDRN
TC
SC
THVDRN
YC1-10
YC1-6
YC9-7
SHVISELN
YC1-14YC9-3
YC9-11
THVADJ
YC1-4YC9-13
MPCB HVTPCB
Transfer roller
Separation
electrode
Drum
1 Transfer roller
2 Separation electrode
3 Drum separation claw
4 Drum
