Utax cd 1120

2DA/2DB
2-1-14

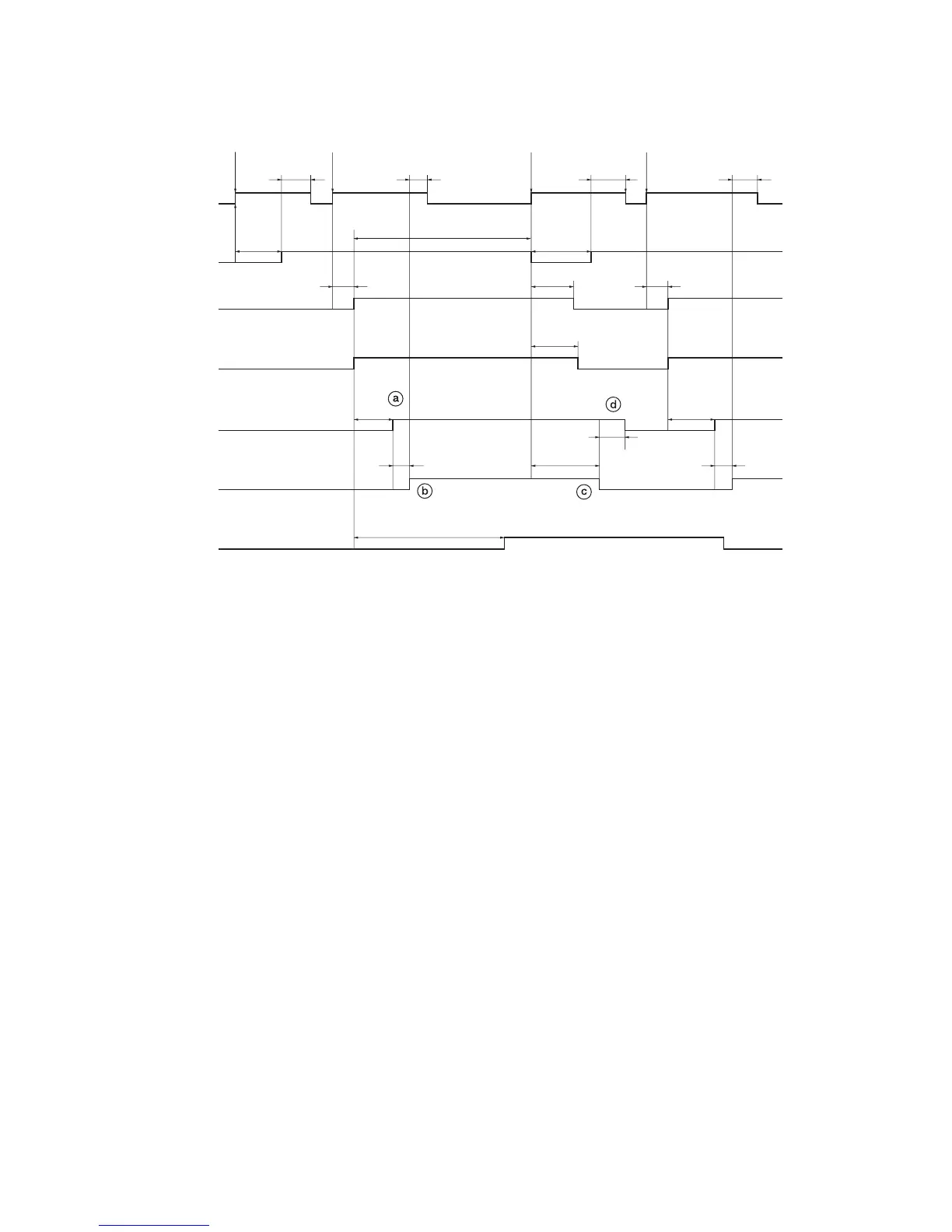

Timing chart 2-1-3 Transfer and separation sections operation
a: 290 ms after the registration motor (RM) turns on to start secondary paper feed, separation charging starts.
b: 10 ms after separation charging starts, transfer charging starts.
c: 670 ms after the registration switch (RSW) turns off, transfer charging ends.
d: 100 ms after transfer charging ends, separation charging ends.
PFCL
Primary feed
Secondary feed
Primary feed
Secondary feed
105 ms 250 ms 105 ms 250 ms
RSW
RM
Dev.BIAS
Separation
charging
Transfer
charging
ESW
430 ms 430 ms
150 ms
330 ms
320 ms
150 ms
290 ms
10 ms
670 ms10 ms
2020 ms
100 ms
1900 ms
