2DA/2DB
1-6-13

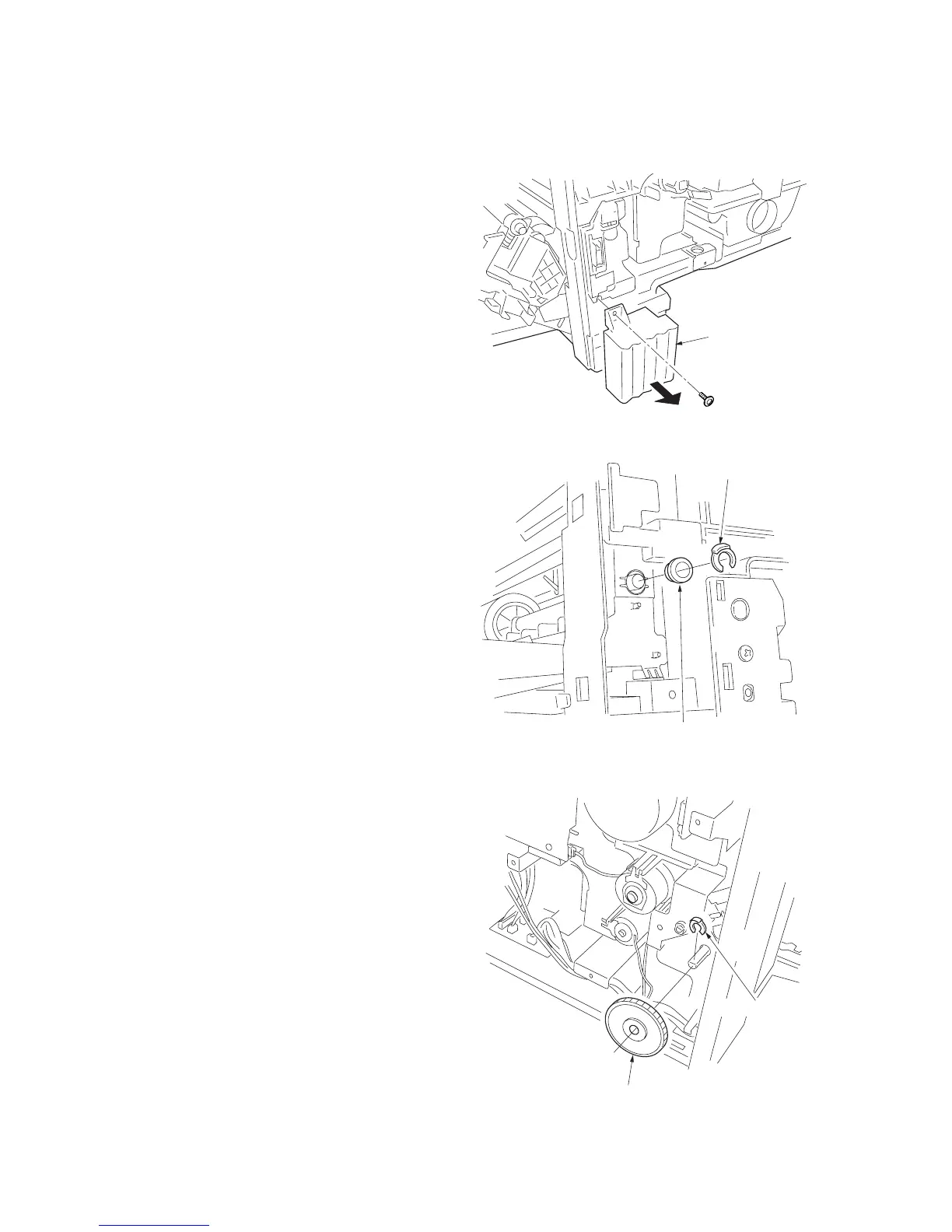

(7) Detaching and refitting the bypass paper feed pulley and bypass separation pad
Follow the procedure below to replace the bypass paper feed pulley and bypass separation pad.
Procedure
1. Open the front cover and remove the waste
toner box. Pull out the drawer.
2. Remove the screw and then the front left
lower cover.
3. Remove the paper conveying unit (see page
1-6-11).
4. Remove the stop ring and bushing at the
machine front side.
5. Remove the rear cover.
6. Remove the stop ring and bypass paper feed
clutch gear at the machine rear side.
Front left lower
cover
Bushing
Stop ring
Bypass paper feed clutch gear
Stop ring
Figure 1-6-24
Figure 1-6-23
Figure 1-6-22
