7. Temporarily push the bypass paper feed
pulley unit into the rear side to unlock the
front side and then remove it from the MFP.
8. Remove the bypass paper feed pulley from
the bypass paper feed pulley shaft.
9. Push the fitting portions of the bypass
separation pad. Remove the bypass
separation pad from the MFP.
10. Replace the bypass paper feed pulley and
bypass separation pad and refit all the
removed parts.
Bypass paper feed pulley unit
Bypass paper feed pulley
Bypass paper feed
pulley shaft
Bypass separation pad

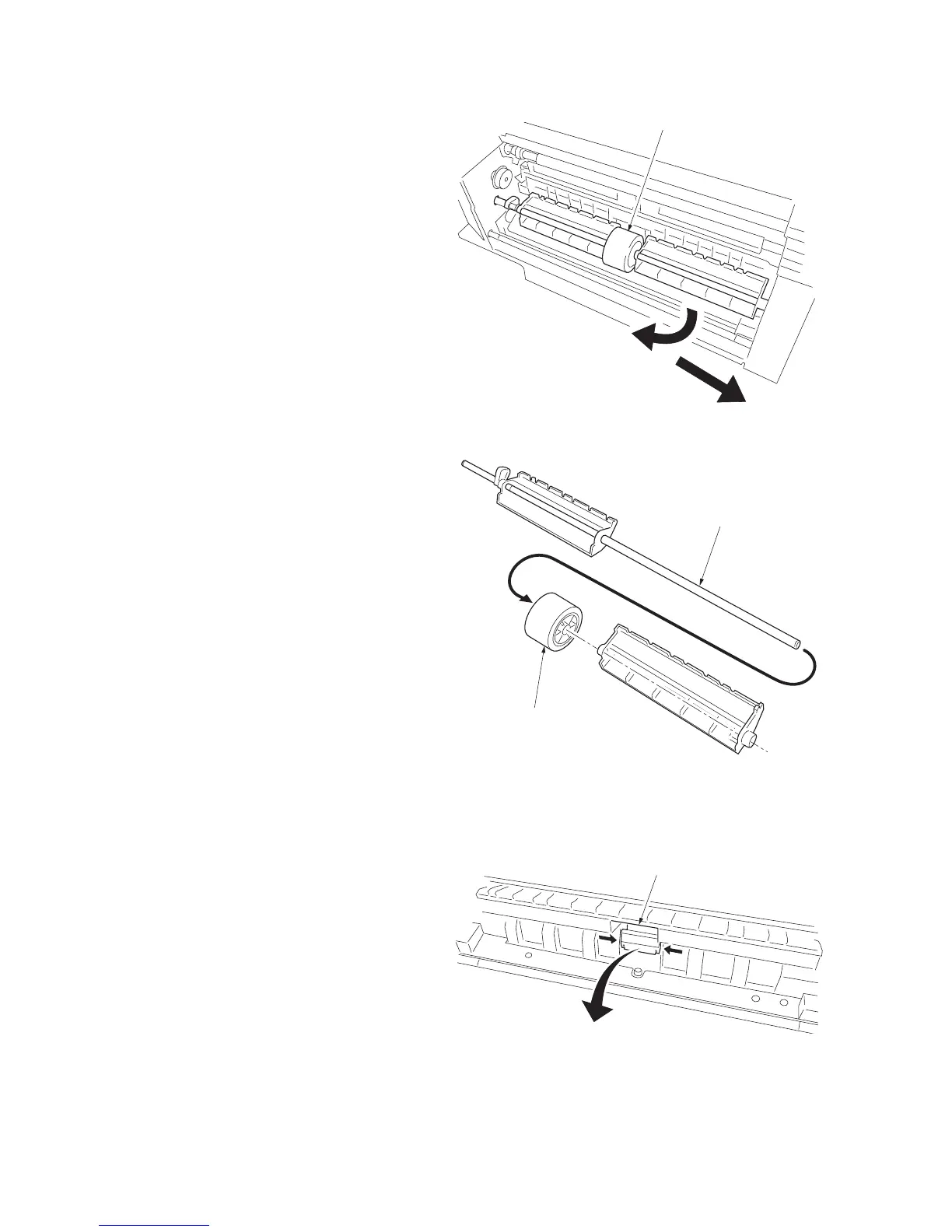

Figure 1-6-25
Figure 1-6-26
Figure 1-6-27
