(2) Detaching and refitting the forwarding pulley and paper feed pulley
Follow the procedure below to replace the forwarding pulley and paper feed pulley.
Procedure
1. Remove the lower paper feed unit (see page
1-6-3).
2. Remove the drum unit (see page 1-6-38).
3. Remove the rear cover.
4. Remove the paper feed clutch, stop ring and
bushing at the machine rear.
Bushin
g
Paper feed clutch
Stop ring
Upper paper feed unit

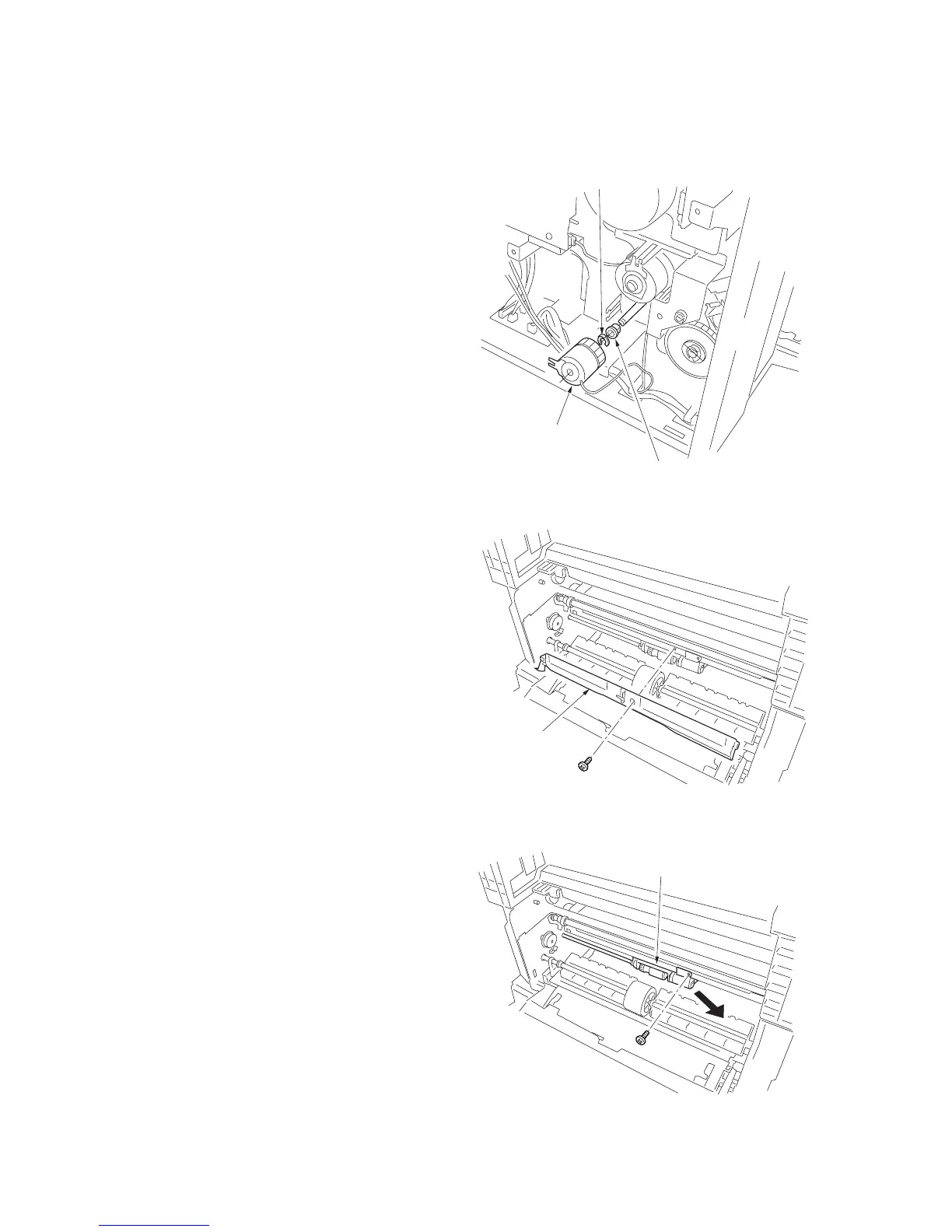

Figure 1-6-7
Figure 1-6-6
Figure 1-6-5
5. Remove the screw and then the registration
guide.
6. Remove the screw and then the upper paper
feed unit.
Registration guide
