1-2-3 Installation environment
1. Temperature: 10 - 32.5°C/50 - 90.5°F
2. Humidity: 15 - 80%RH
3. Power supply: 120 V AC, 9.0 A
220 - 240 V AC, 5.0 A
4. Power source frequency: 50 Hz ±0.3%/60 Hz ±0.3%
5. Installation location
• Avoid direct sunlight or bright lighting. Ensure that the photoconductor will not be exposed to direct sunlight or other
strong light when removing paper jams.
• Avoid extremes of temperature and humidity, abrupt ambient temperature changes, and hot or cold air directed onto
the machine.
• Avoid dust and vibration.
• Choose a surface capable of supporting the weight of the machine.
•Place the machine on a level surface (maximum allowance inclination: 1° ).
• Avoid air-borne substances that may adversely affect the machine or degrade the photoconductor, such as
mercury, acidic of alkaline vapors, inorganic gasses, NOx, SOx gases and chlorine-based organic solvents.
• Select a room with good ventilation.
6. Allow sufficient access for proper operation and maintenance of the machine.
Machine front: 1000 mm/39
3
/
8
" Machine rear: 100 mm/3
15
/
16
"
Machine right: 300 mm/11
13
/
16
" Machine left: 300 mm/11
13
/
16
"

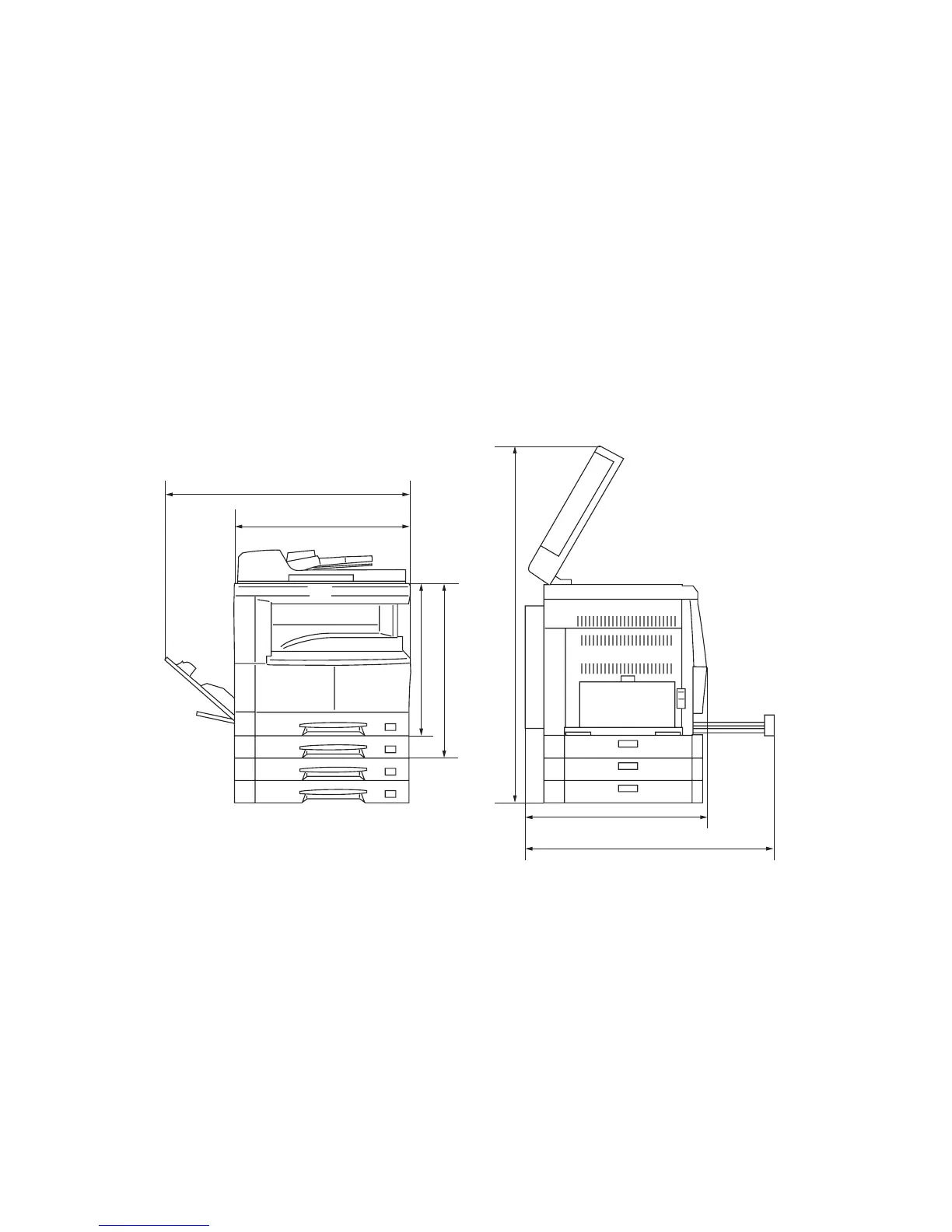

Figure 1-2-1 Installation dimensions
a: 571 mm/22
1
/
2
"
b: 593 mm/23
3
/
8
"
c: 500 mm/19
11
/
16
"
d: 1371.5 mm/54"
e: 1323 mm/52
1
/
16
"
f: 952.5 mm/37
1
/
2
"
g:605 mm/23
13
/
16
"
a
d
c
g
f
b
e
