2DA/2DB
1-6-26

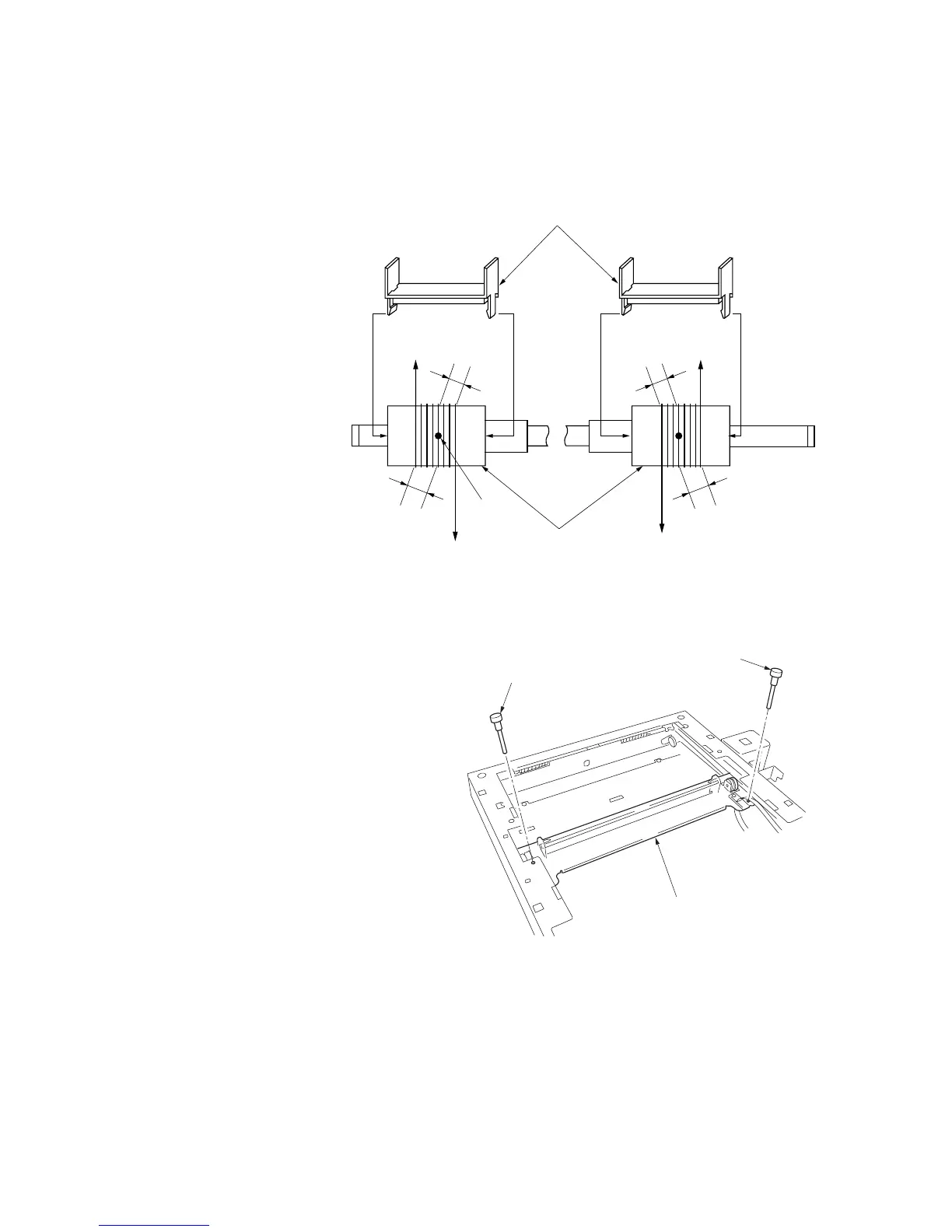

4. Insert the locating ball on each of the scanner
wires into the hole in the respective scanner
wire drum and wind the scanner wire three
turns inward and four turns outward.
•With the locating ball as the reference point,
wind the shorter end of each of the wires
outward.
5. Secure the scanner wires using the scanner
wire stoppers.
6. Refit the scanner wire drum shaft to the
scanner unit.
7. Insert the two frame securing tools into the
positioning holes at the front and rear of the
scanner unit to pin the mirror 2 frame in
position.
Three turns inward
Three turns inward
Four turns outward Four turns outward
Locating ball
Scanner wire drum
Scanner wire stoppers
Mirror 2 frame
Frame securing tool
Frame securing tool
Figure 1-6-47
Figure 1-6-48
To Next Page
