2DA/2DB
2-1-3

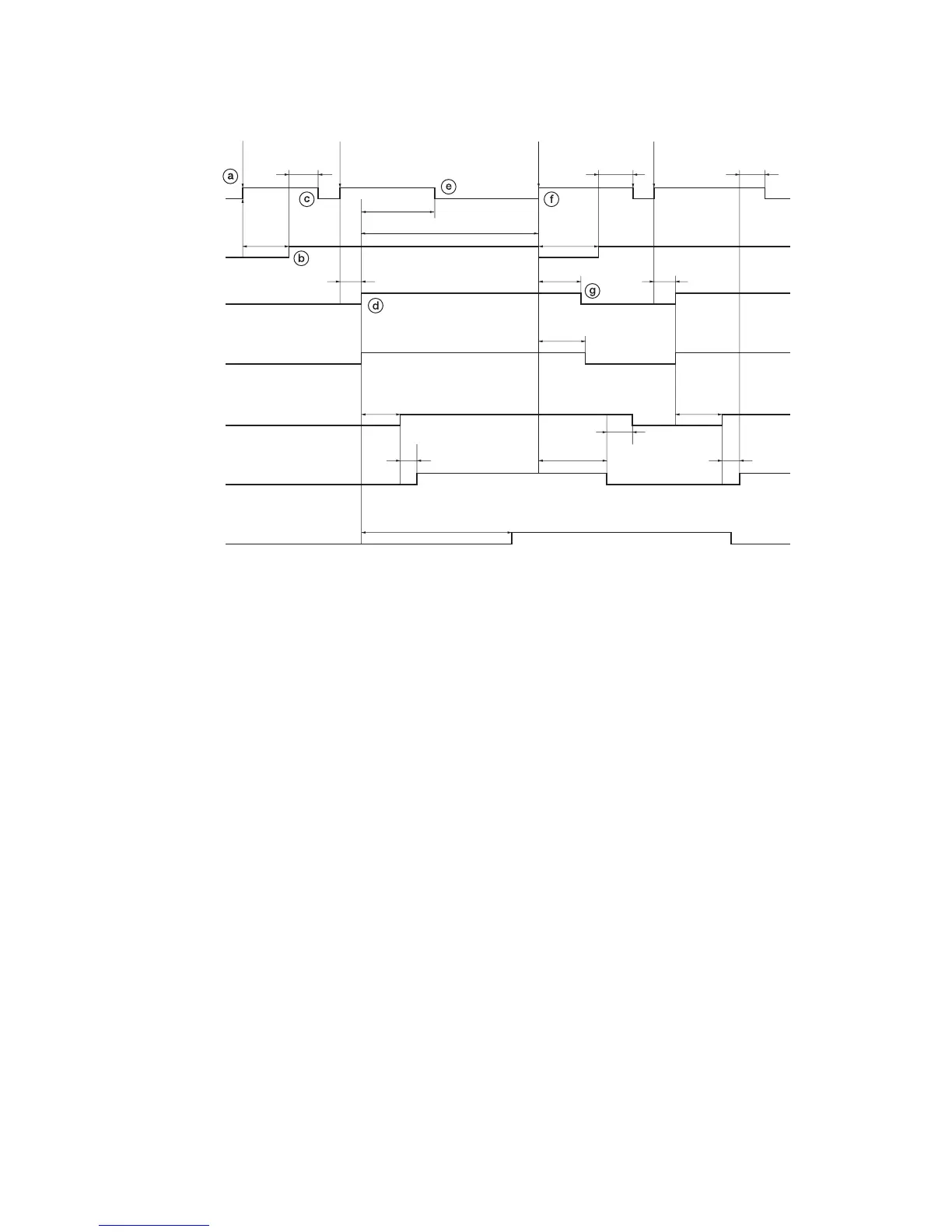

Timing chart 2-1-1 Paper feed from the drawer (A4, single-sided copy)
a: The paper feed clutch (PFCL) turns on to start primary paper feed.
b: 430 ms after the paper feed clutch (PFCL) turns on, the registration switch (RSW) turns on.
c: 105 ms after the registration switch (RSW) turns on, the paper feed clutch (PFCL) turns off.
d: 150 ms after the paper feed clutch (PFCL) turns on, the registration motor (RM) turns on to start secondary paper
feed.
e: 550 ms after the registration motor (RM) turns on, the paper feed clutch (PFCL) turns off.
f: 1900 ms after the registration motor (RM) turns on, the registration switch (RSW) turns off. At the same time, the
paper feed clutch (PFCL) turns on to start primary paper feed of the second sheet.
g: 320 ms after the registration switch (RSW) turns off, the registration motor (RM) turns off.
PFCL
105 ms 105 ms 250 ms
RSW
RM
Dev.BIAS
ESW
430 ms 430 ms
550 ms
150 ms
330 ms
320 ms
150 ms
290 ms 290 ms
10 ms
670 ms10 ms
2020 ms
100 ms
1900 ms
Primary feed
Secondary feed
Primary feed
Secondary feed
Separation
charging
Transfer
charging
