1-3-10
2DA/2DB-1

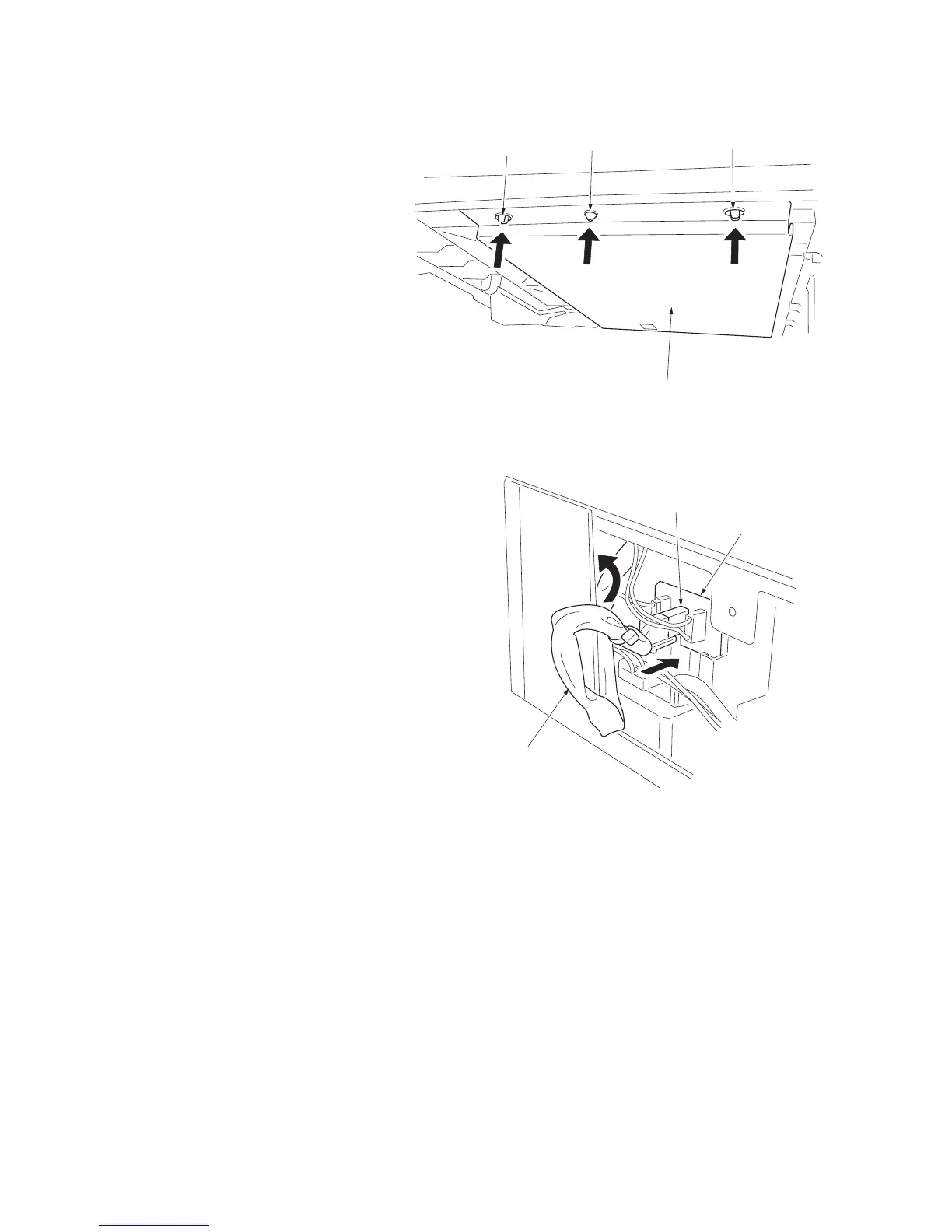

7. Fit the three holes on the front of the drawer
heater mounting plate to the positioning
portion and the fitting portions on the front
side of the machine.
Figure 1-3-9-3
Figure 1-3-9-4
Drawer heater mounting plate
Fitting portion
Fitting portion
Positioning portion
8. Connect the connector of the drawer heater
wire to YC3 on the drawer heater PCB.
Put the drawer heater wire inside the paper
feeder cover by bending.
9. Refit all the removed parts.
Drawer heater wire
Drawer heater PCB
YC3
1-3-8-2
To Next Page
