U089 Outputting a MIP-PG pattern
Description
Selects and outputs the MIP-PG pattern created in the machine.
Purpose
When performing respective image printing adjustments, used to check the machine status apart from that of
the scanner with a non-scanned output MIP-PG pattern.
Method
1. Press the start key. The screen for selecting an item is displayed.
2. Select the MIP-PG pattern to be output using the up/down cursor keys.
Display
GRAYSCALE To check the laser scanner unit
engine output characteristics.
MONO-LEVEL To check the drum quality.
256-LEVEL To check resolution
reproducibility in printing.
1 DOT-LEVEL To check fine line reproducibility.
To adjust the position of the laser
scanner unit (lateral squareness)

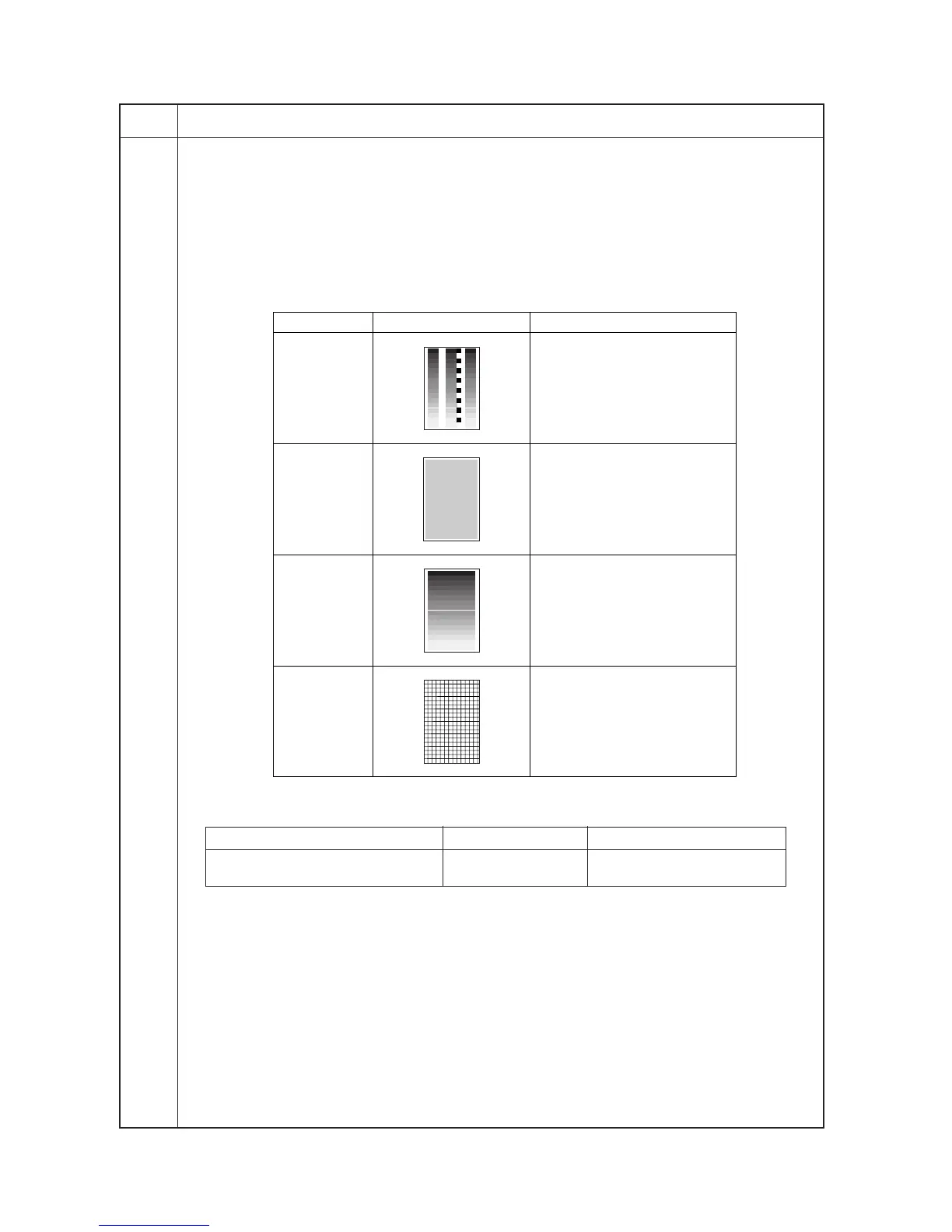

PG pattern to be output Purpose
3. To change the output conditions of MONO-LEVEL and 1dot-LEVEL, use the left/right cursor keys to
change the preset values and press the start key to register the setting.
Display Setting range Initial setting
Output density of MONO-LEVEL 0 or 35 0
1dot-LEVEL 0 to 21 0
4. Press the interrupt key. The copy mode screen is displayed.
5. Press the start key. A MIP-PG pattern is output.
Completion
Press the stop/clear key at the screen for selecting an item. The screen for maintenance item No. is displayed.
