Operation
P/N 06-237041-001 4-5 February 2011
4-7 LCD PANEL SYSTEM STATUS MESSAGES

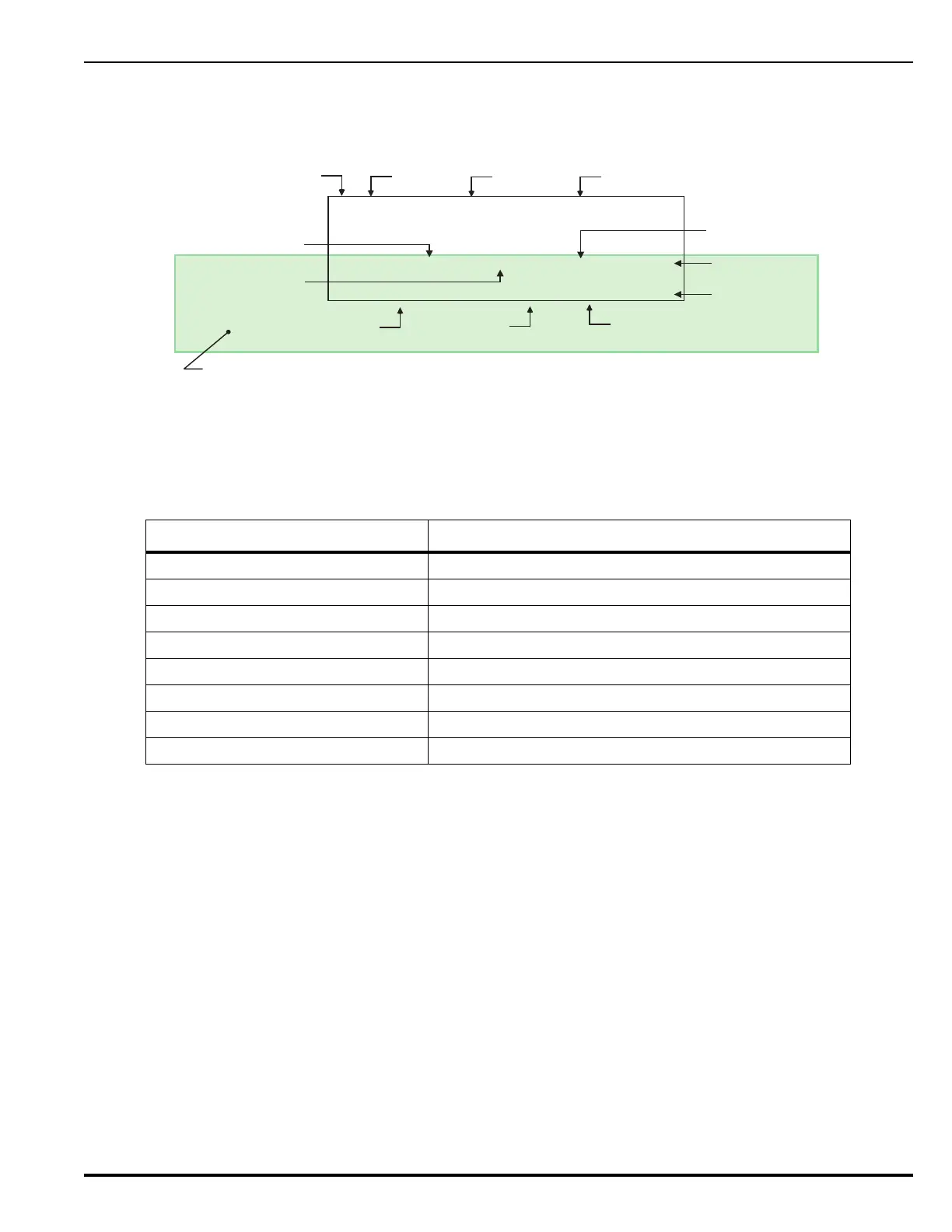

The highlighted area of Figure 4-2 shows the LCD panel system status messages.
Figure 4-2. Typical Multiple Level-2 Event-Type Display
Table 4-4 lists the names and indications of the System Status Messages on the display.
4-8 USING PASSWORDS FOR SYSTEM SECURITY
Before beginning the system startup procedure, the user should become familiar with the use of
password protection. The FenwalNET 8000-ML provides three distinct levels of program protection,
as required by UL Standard 864. The user can only access the system by entering a valid password.
Typical valid passwords consist of three or four characters, but may be up to eight characters in
length.
4-8.1 Levels of Security
The three security levels are Owner’s, Installer’s, and System Manufacturer. The highest security level
is reserved for the system manufacturer. System owner is level one; system installer is level two.
Passwords consist of up to eight alphanumeric characters which allows access from the
alphanumeric keypad.
Table 4-4. LCD Panel System Status Messages
LCD SYSTEM STATUS MESSAGE INDICATION
DISCHARGE-00 Number of activated discharges
CNTDN-00 Number of countdowns to release in progress
ABT-01 Number of activated abort stations
ALM-051 Number of alarms
PREALM-00 Number of initiating devices in the pre-alarm state
AVCNTDN-00 Number of alarm-verification countdowns
SPV-000 Number of supervisory events
TBL-000 Number of trouble events
L2:010 ALARM ON MANUAL STATION
COMPUTER ROOM
DISCHARGE-00 CNTDN-00 ABT-01 ALM-051
PREALM-00 AVCNTDN-00 SPV-000 TBL-000
Abort-On
Indication
SLC Loop
Number 2
Device
Address 003
Device Type
Number of
Trouble Events
Number of
Alarms
Number of
Activated
Discharges
Number of
Countdowns to
Release in Progress
Number of
Alarm-
Verification
Countdowns
Number of
Supervisory Events
Number of
Activated Abort
Stations
Number of
Initiating Devices
in the Pre-Alarm
State
STATUS MESSAGES
To Next Page
