Installation

February 2011 2-20 P/N 06-237041-001

2-5 MAKING INTERNAL 24VDC POWER CONNECTIONS

Figure 2-16 provides an overview of internal 24Vdc power supply connections for the FenwalNET

8000-ML system.

Note: Output connectors are white; input connectors are black. All connectors are keyed for correct

orientation when inserted.

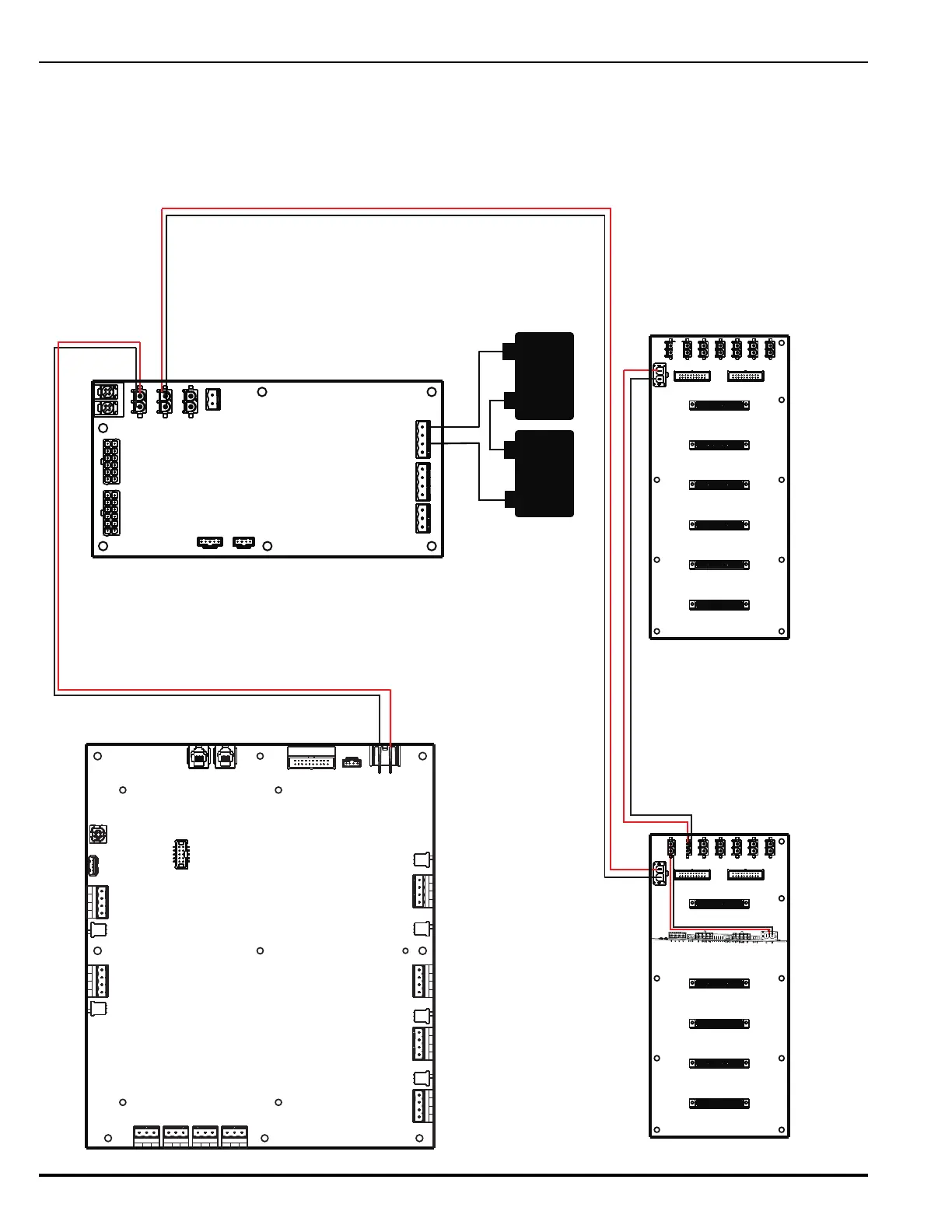

Figure 2-16. Internal 24 Vdc Power Connections

Battery

Card Cage Backplane

Additional Card Cage Backplane

PMU Board

Main Controller Board

R-NAC Card

J10

J12

J13

J12

J13
