FenwalNET 8000-ML For Canadian Applications
February 2011 F-2 P/N 06-237041-001
(a) Control Unit with Integrated LED Annunciator (b) Control Unit with Blanking Plate

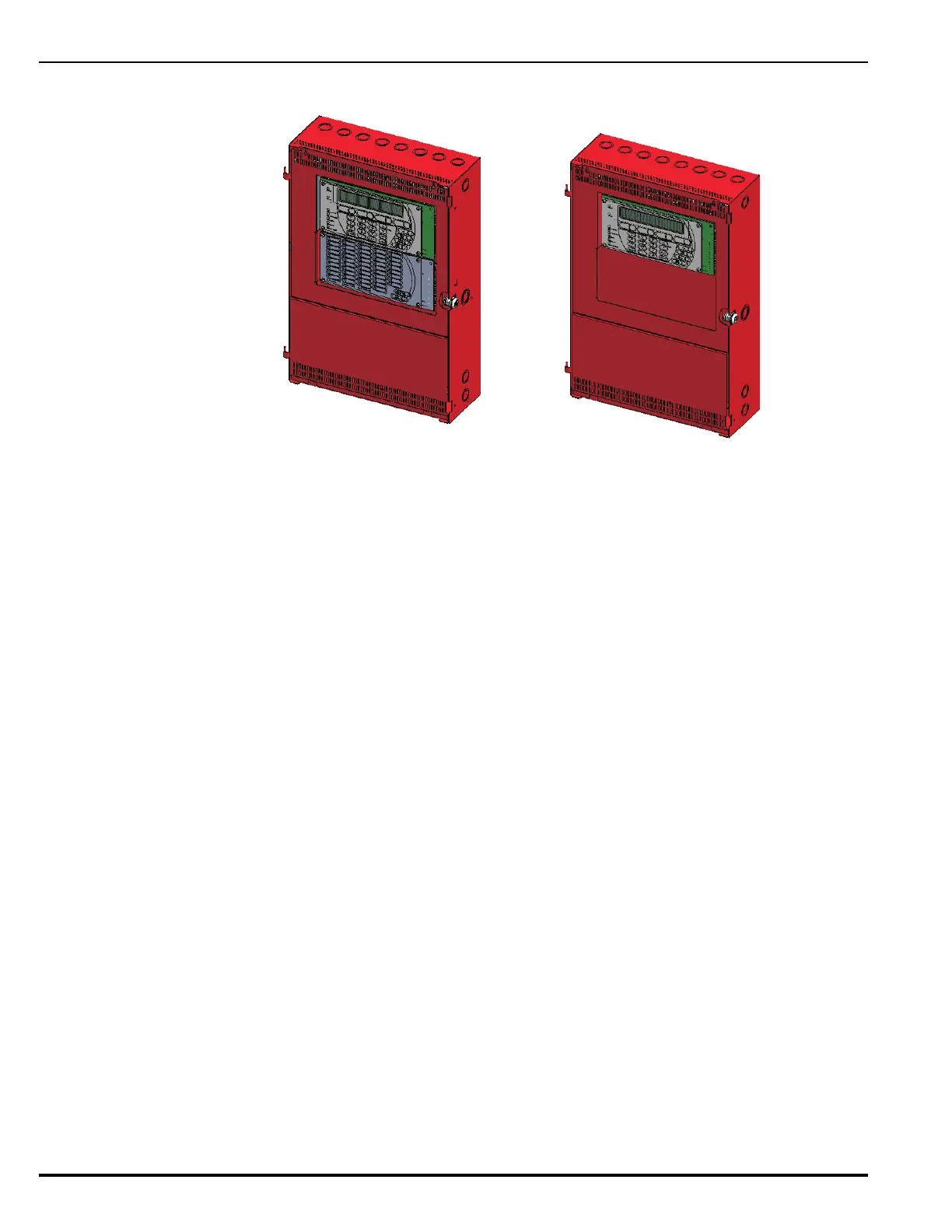

Figure F-2. 2-Tiered Canadian Application Enclosures (shown with Enlosure Door removed)
F-2 INSTALLATION
To install the Dead Front Cover and LED Annunciator Module (LAM):
1. Remove the control unit door by first unlocking it, disconnecting the door’s Earth Ground
assembly, and then lifting the door up to allow the hinges to clear the mating-hinge pins on the
enclosure. Set the door aside in a safe location to prevent damage.
2. Remove the Dead Front Cover from its packaging.
3. If installing the optional LED Annunciator Module (P/N 74-800020-003):
a. Remove the four (4) Phillips screws from the blanking plate and lift off the plate. Set plate
aside.
b. Remove the LED Annunciator Module from its packaging and mount the module in place
of the blanking plate, using the same screws.
c. Plug supplied wiring harness from U1 on the LED Annunciator Module to the connector
labeled “LAM” on the Operator Interface board.
4. Remove the 8/32” nuts from left and right studs located midway inside the enclosure.
5. Place the unthreaded side of one Dead Front “L” Bracket over the stud on one side and secure
with nut. Repeat for remaining “L” Bracket on other side.
6. Grasping the Dead Front Cover, insert the bottom retention tabs into the bottom lip of the
enclosure and lay flat over control unit.
7. Adjust and tighten the two (2) top Phillips mounting screws in their keyholes.
8. Secure the threaded hole of both “L” Brackets to the cover with a 6/32” screw.
9. Tighten the two (2) side Phillips mounting screws securely.
10. Replace the control unit door and reconnect the Earth Ground assembly.
