UTC Fire and Security FenwalNET 8000-ML User Manual

General Information
P/N 06-237041-001 1-23 February 2011
1-17 SMARTONE ADDRESSABLE MODULES
SmartOne addressable modules are of four general types:
• Monitor Modules: These modules provide a uniquely-identifiable interface between the
FenwalNET 8000-ML and an initiating device.
• Relay Module: This module supplies an unpowered, Form-C contact at a point-specific address.
• Control Modules: These modules provide a uniquely-identifiable interface between the
FenwalNET 8000-ML and conventional notification appliances such as horns and strobes.
• Remote Releasing Modules: These modules provide the ability to remotely activate extinguishing-
system control devices (i.e., electro-explosive initiators and solenoid valves).
AIR-Intelligence
ASD-640 /
AIR-Intelligence
Command Module
The AIR-Intelligence ASD-640 is identical to the
ASD-160H detector but offers protection for an even
larger air sampling pipe network up to 656 feet (200
meters) total.
An ASD-640 can be connected to the Signaling Line
Circuit using an Addressable Protocol Interface
Card (APIC), P/N 74-333001-001, which mounts
inside the detector housing. Up to 127 AIR-
Intelligence detectors can be networked together
using an AIR-Intelligence Command Module.

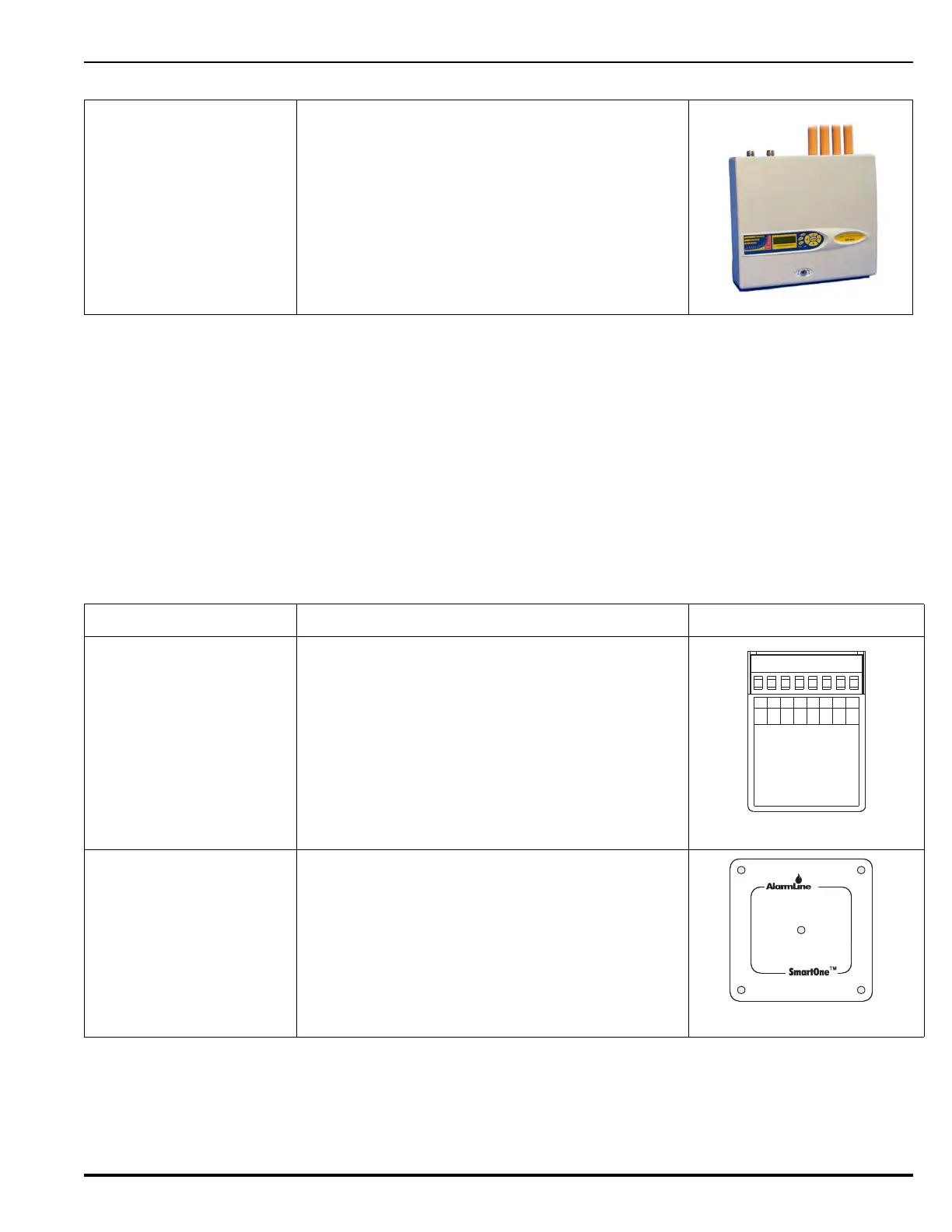

Table 1-6. Supported SmartOne Addressable Modules
Device Description Illustration
SmartOne Addressable
Monitor Module,
Model AI
The Model AI Addressable Monitor Module is used to
monitor conventional, unpowered, contact-type
initiating devices through a CLASS-B, Style-B initiating
device circuit. The AI Module is designed to be mounted
in the electrical box of the device being monitored.
P/N 70-4070X8-001 is used to monitor normally-open,
contact-type initiating devices such as manual stations,
waterflow switches, and supervisory switches and is
ANSI/UL 864 compliant.
SmartOne Addressable
AlarmLine Module,
Model AAM
The Model AAM Addressable AlarmLine Module is
a monitor module that enables an AlarmLine
sensor cable to report pre-alarm and alarm or
overheat events, and trouble signals to the
FenwalNET 8000-ML through the signaling line
circuit. The AAM, P/N 73-100001-003, is equipped
with a metal cover plate for mounting to a 4” square
electrical box. P/N 73-100003-001, is a surface-
mount, NEMA-4 enclosure for the AAM.
Table 1-5. Supported High Sensitivity Smoke Detectors
MODEL AI, N/O
INSTRUCTIONS
SEE INSTALLATION
CAT. NO. 70-407008-001
SmartOne
TM
FOR SERVICE SEND TO:
KIDDE-FENWAL, INC.
400 MAIN ST.
ASHLAND, MA 01721
DATE OF MANUFACTURE:
MAX. INSTALL. TEMP. 120°F
7654321
06-235578-001
PC PC PC PC
(+) (-) (+) (-)
8
A
SW
B
SW
(+)
LED
(-)
LED
ALL TERMINALSARE POWER LIMITED
TM
