UTC Fire and Security FenwalNET 8000-ML User Manual

Installation
February 2011 2-46 P/N 06-237041-001

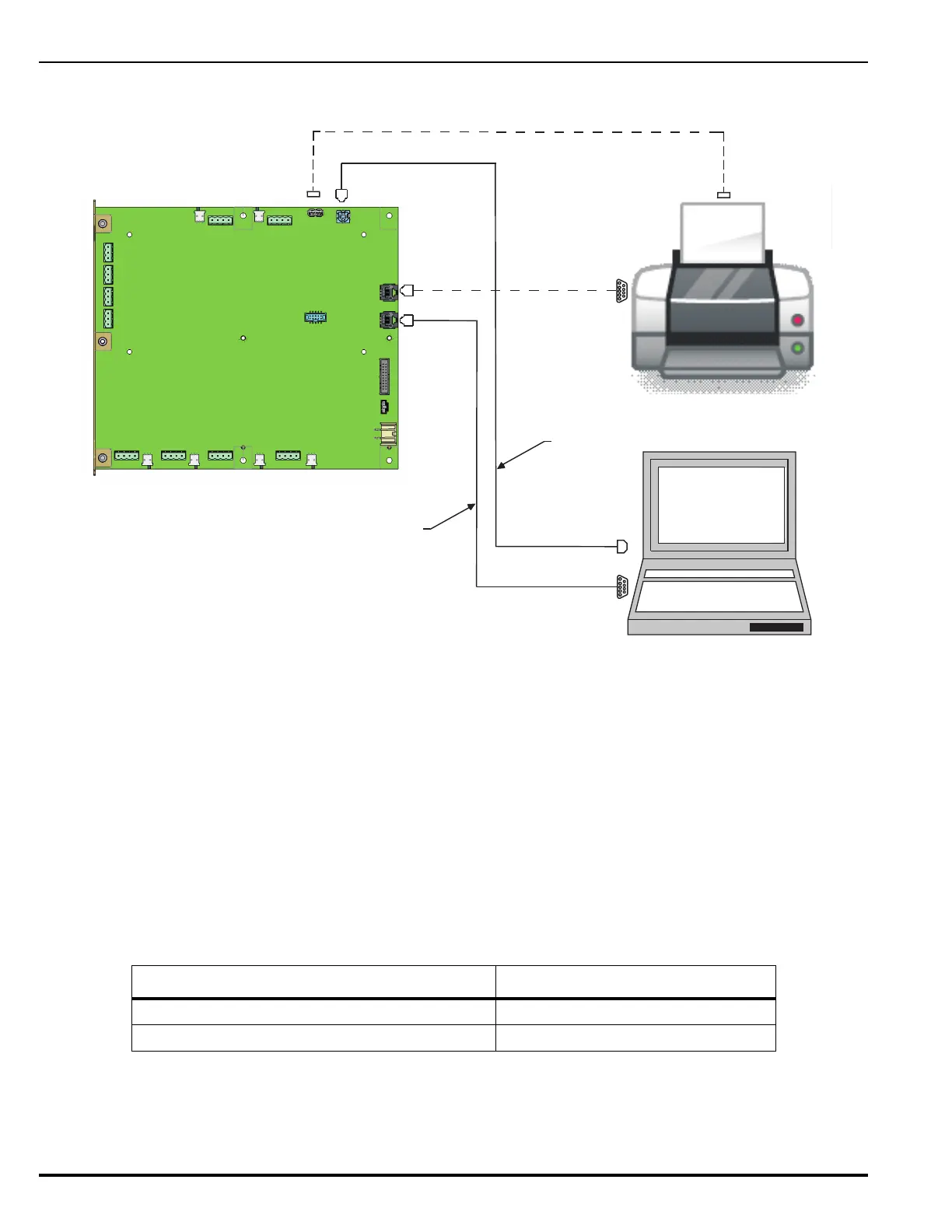

Figure 2-38. Laptop/Remote Computer and Optional Printer Connections to MCB
2-10 SETTING UP PERIPHERAL DEVICES AND ENCLOSURES
The FenwalNET 8000-ML control unit can communicate with up to 31 peripheral (remote) devices
via its RS485 communications circuit. The peripheral devices are listed below, along with the
maximum numbers for each particular type of device.
Note: If an integrated LED Annunciator is included in the FenwalNET 8000-ML, the total number
of remote devices cannot exceed more than 30 addresses.
Table 2-4. FenwalNET 8000-ML System Maximum Peripheral Devices
Device Maximum Number
Remote Display Control Module (RDCM) 15
Remote LED Annunciator Module (R-LAM) 16
RS-232 Serial Communications Cable
Standard USB Communications Cable
Tolaptopserial port
Tolaptop USB port
LaptopComputer
RS232 A
RS232 B
Printer
Main Controller Board
To serial printer
(optional)
To USB printer
(optional)
J11 J6
