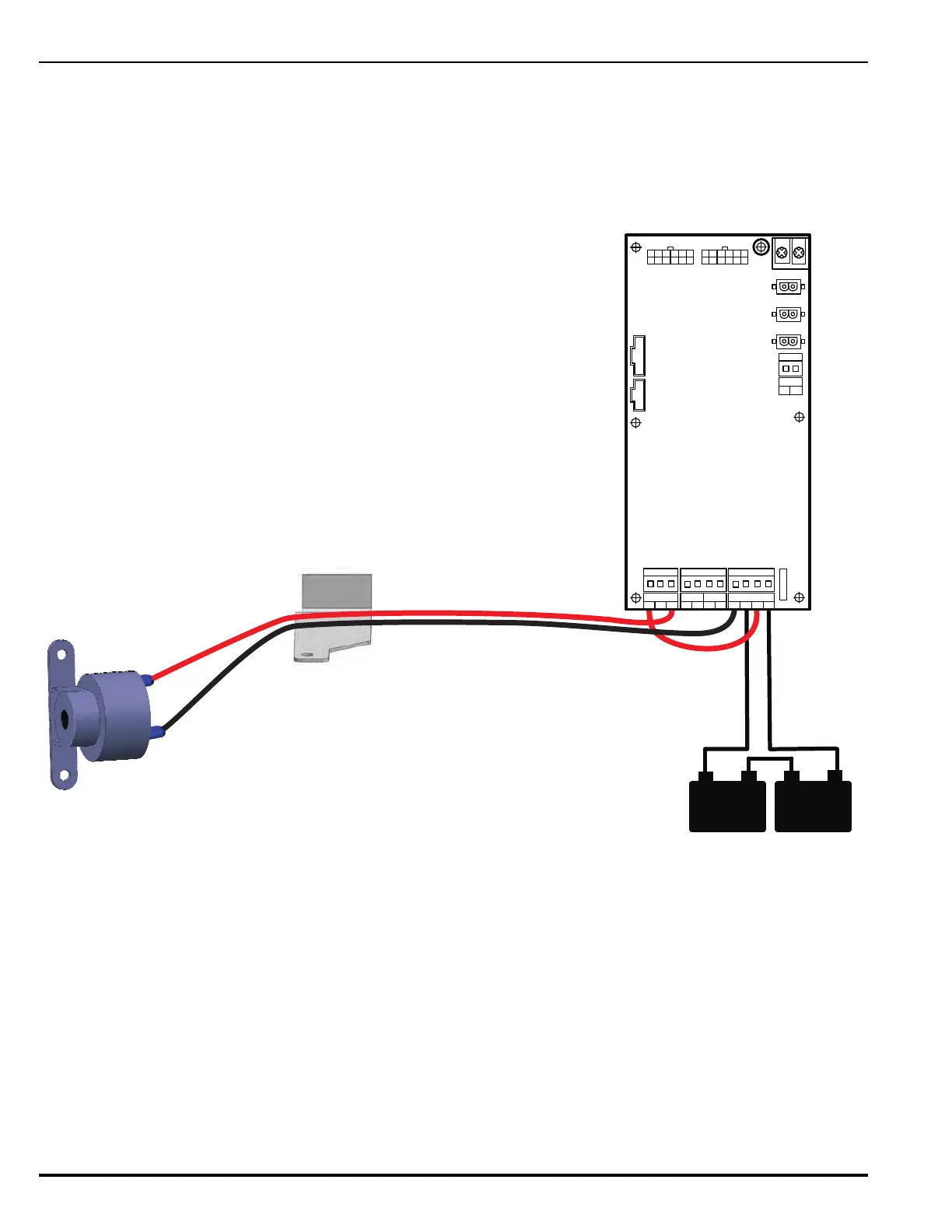

Figure 2-11. Audible PMU Trouble Sounder Wiring Diagram
BATTERY
-+-+
AUX-1
-
+
-
+
AUX-2
J9 J10J11
NO
C
NC
TBL RELAY
+-
24 VDC
Power Management Unit
(PMU)
12
V
Battery
12
V
Battery
+
-
+
-
F1
Positive (Red) Wire
Negative (Black) Wire
Power Jumper
(Red) Wire
NOTES:
1. Route wires over small bracket on enclosure.
2. Lay wires flat against the back of enclosure.
3. Maintain 1/4-in. separation between power-limited
and non-power-limited wiring.
