DE35-ST Operating Instructions
D292469I 23

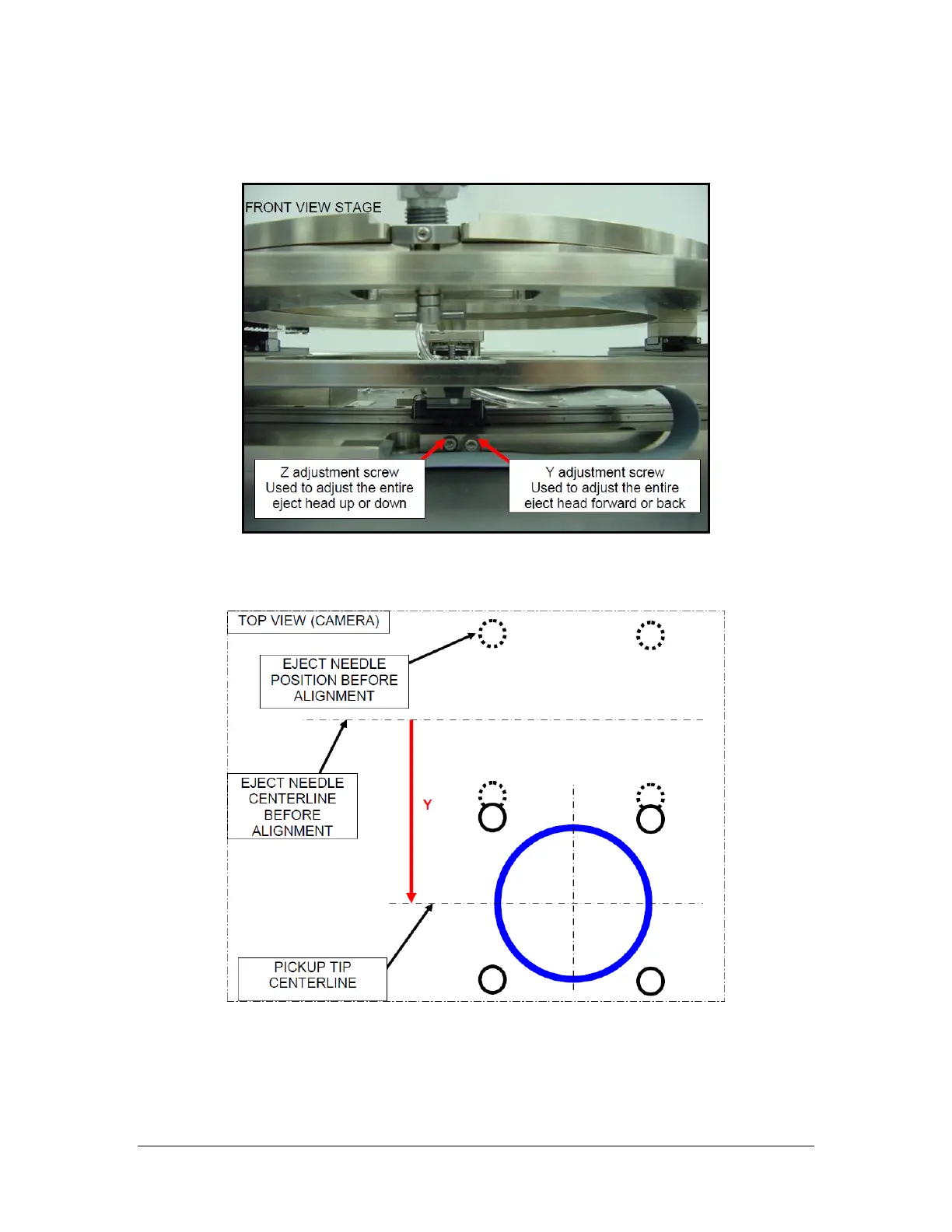

located under the Wafer Holder on the operator side of the base as
shown below.
WARNING: DO NOT MOVE THE EJECT HEAD Y POSITION WHILE THE NEEDLES
ARE UP, doing so may break the needles or tear the wafer tape.
10. Align the Vision System [X-Y] to the Eject Head and Pickup Tip.
a. Loosen the large thumbscrew on the top of the Camera Mount
