DE35-ST Operating Instructions
D292469I 59

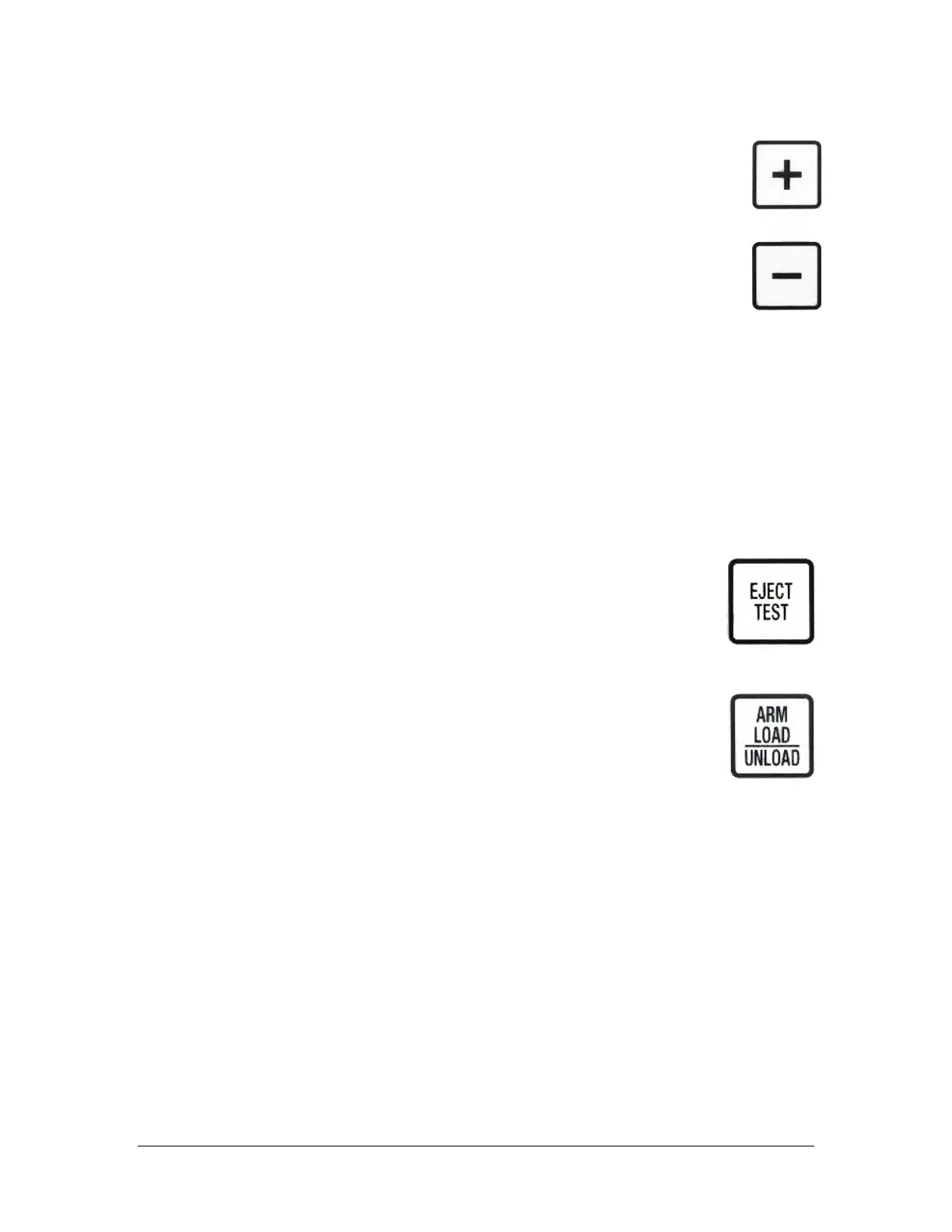

+/- Keys
Pressing the +/- keys with the Pick Arm in the wait position will move
the arm to the last placement position on the waffle pack.
Once the arm has moved to this position, the + key will move the arm
forward through each pocket of the current waffle pack until it reaches
the last pocket. It will then move to the first position of the next
waffle pack.
The - key will do the opposite, moving the arm backward through each pocket of
the current waffle pack until it reaches the first pocket. It will then move to the
last pocket of the previous waffle pack.
NOTE: The die count will be incremented each time the + key is depressed and
decremented each time the – key is depressed. The pocket that the tip is left in
will be the next pocket the die will be placed to when the foot pedal is pressed.
The die will then be placed in order from that position and the die count will be
adjusted.
Eject Test
Pressing the Eject Test key will eject the Eject Head needles.
Pressing this key again will retract the needles. If you are unsure if
the needles are ejected, pressing NO always retract the needles in
RUN Mode.
Arm Load/Unload
Pressing Arm Load/Unload will move the arm left or right,
depending on where the arm is positioned when pressed.
If the arm is in the Wait Position, pressing this key will move the arm left to the
Pick Position. Pressing this key again will cause the arm to move right, seeking its
Home Position. Continued pressing of this key will cycle the arm through various
positions, depending on the options on the machine, until it seeks its Home
Position again.
When Arm Load/Unload is pressed, the last placement position and die count
are remembered. This function is helpful when the arm needs to be moved out
of the way to replace a wafer in the Wafer Holder, waffle packs on the Output
Plate, or if the arm has run into something and has lost position.
When using Grades, pressing Arm Load/Unload after placing a die will move the
table out to the Load/Unload Position allowing that tray to be replaced without
affecting the count of the other grades.
