VARILITE VL4 - Page 192

4-38
V
ARI
*L
ITE
®
-
VL4
W
ASH
L
UMINAIRE
S
ERVICE
M
ANUAL
CONFIDENTIAL 02.9628.0010
7-Oct-97

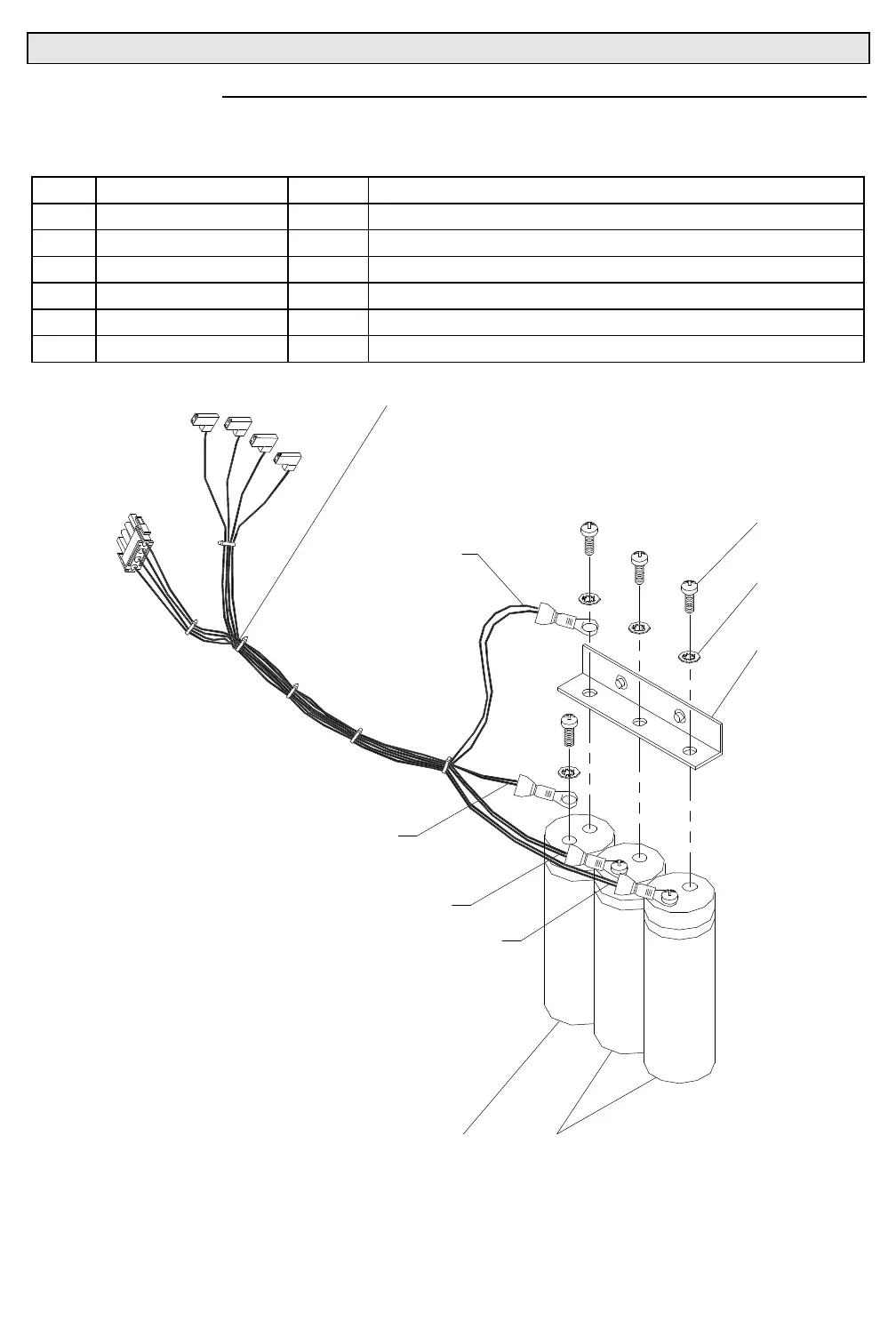

4.2.3.7 Assy, Mounted Capacitor ( VL4 )
23.9628.0234
NO. PART NO. QTY DESCRIPTION
1 10.9628.0122 1 EA BRACKET, MOUNTING, CAPACITOR
2 25.9628.0156 1 EA CABLE ASSY, XFRMR & CAPACITOR (VL4)
3 55.2114.0001 6 EA WASHER, LCK INT TTH #10
4 55.6564.0001 6 EA SCREW, 10.32X5/16"PPZ
5 62.2096.1900 2 EA CAP,19000UF, 40V,RAD,ALUMNUM, .500",REF
6 62.2097.5300 1 EA CAP,53000UF, 15V,RAD,ALUMNUM, .500",REF
4
3
1
56
2
YEL
BLU
ORG
GRN
