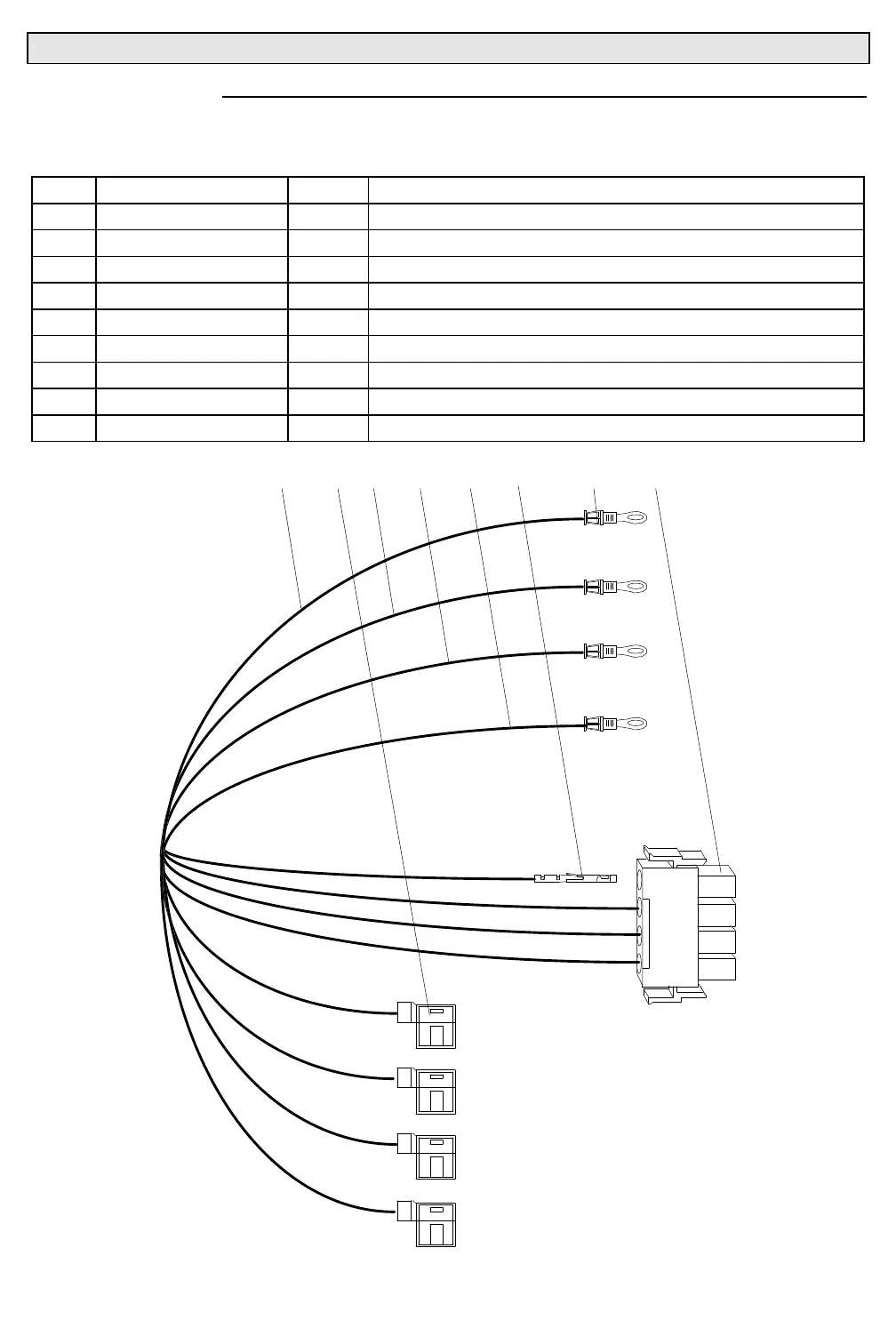

4.2.3.8 Cable Assy, Transformer & Capacitor (
VL4
)
25.9628.0156
NO. PART NO. QTY DESCRIPTION
1 52.6319.0001 1 EA PLUG HOUSING, MNLOK 4POS
2 52.8256.0001 4 EA CONTACT SCKT, 20AWG TIN MNLOK (LOOSE)
3 52.8244.0002 4 EA FASTON RECEPT FLAG,.250 16-14AWG (LOOSE)
4 52.8232.0001 4 EA TERM, RING #10 16-14AWG (LOOSE)
55.2186.0001 8 EA CABLE TIE, SMALL .10X4" (Not Shown)
5 73.7008.0001 47 IN WIRE, 16AWG STRND GREEN UL1061
6 73.7011.0001 48 IN WIRE, 16AWG STRND ORANGE UL1061
7 73.7013.0001 49 IN WIRE, 16AWG STRND BLUE UL1061
8 73.7042.0001 50 IN WIRE, 16AWG STRND YELLOW UL1061
12345
67
8
