C
HAPTER
4. I
LLUSTRATED
P
ARTS
B
REAKDOWN
4-41
02.9628.0010 CONFIDENTIAL
7-Oct-97

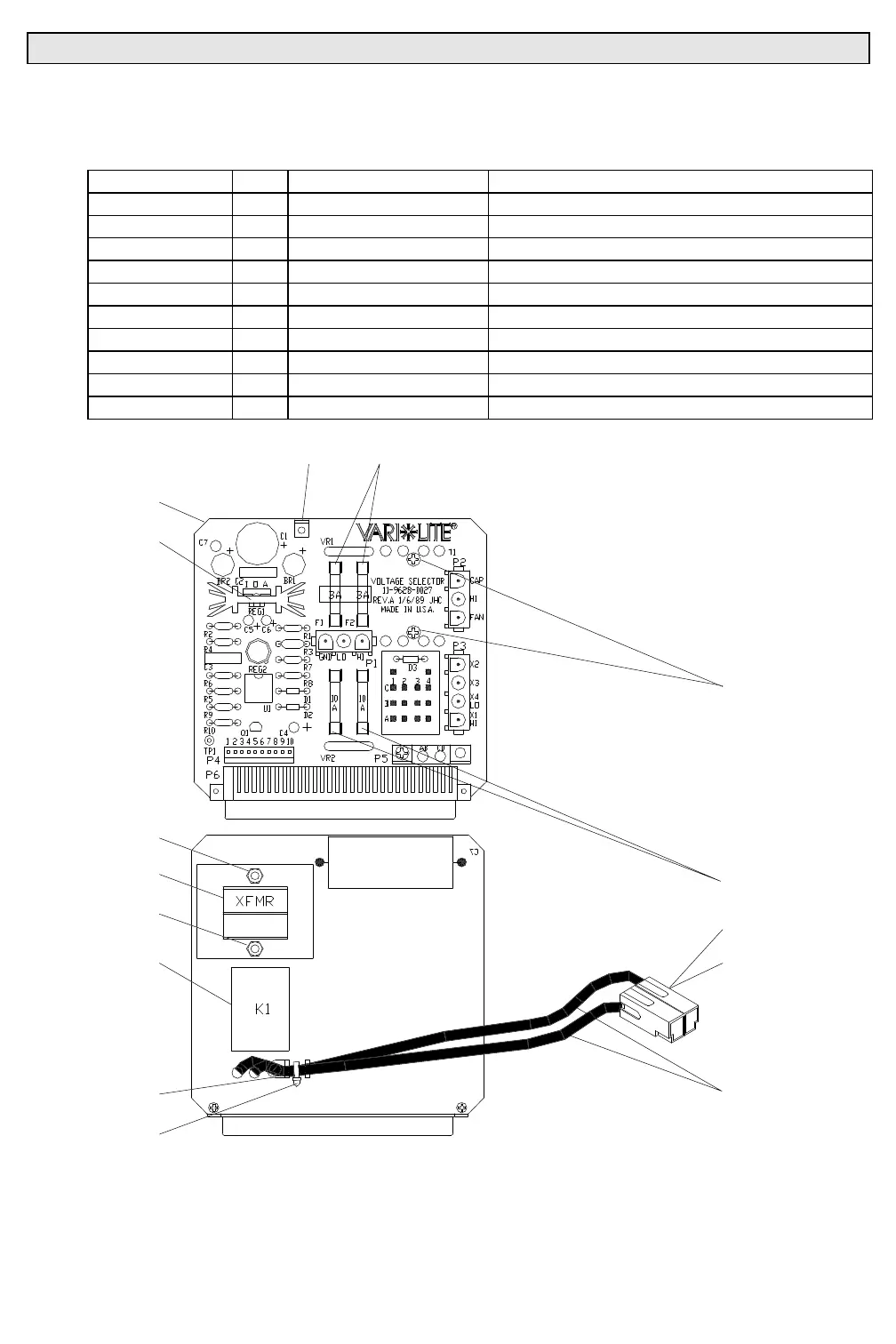

PCB Assy,
VL4
Voltage Selector (VSB) (continued)
24.9628.0026
PART NO. QTY REF DES DESCRIPTION
62.2098.0337 1 EA C1 CAP, 330UF, 63V,RAD,ALUMNUM, .300", 20%
63.2001.0001 2 EA VR1, 2 VARIS, MET. OX,250V, 100A, RAD
70.3725.0001 8 EA AP: F1-F4 FUSEHOLDER,PC MT,2 REQ'D
80.2513.0055 1 EA Q1 TRANSISTOR, MPSA55 PNP 60V 500MA TO92
82.4302.0004 2 EA BR1, 2 BRIDGE RECTIFIER, W06G 600V 1.5A
82.4306.4001 1 EA D3 DIODE, RECTIFIER, 1N4001 50V 1A
82.5302.4148 2 EA D1, 2 DIODE, ULTRAFAST, 1N4148 100V 10MA
83.3103.0001 1 EA REG1 IC, LM317T ADJ POS VOLT REGULATOR
83.3117.0001 1 EA U1 IC, LM393 DUAL COMPARATOR
83.3130.0002 1 EA REG2 IC, LM309H VOLT REG. +5V
4
2
3
17 (2x6")
8
4,6,7
5,10
12
16
1
14
4
13
4,9,11
F3
F4
15
To Next Page
