Adjusting the guide plate on the infeed conveyor
The height of both guide plates on the infeed conveyor must likewise be adapted to the height of the
sealed seam from the lower sealing bar.
The height of the guide plates above the conveyor belt can be:
without supports (3): 40 mm
with supports: 80 mm
The description below explains how to adjust the height of the guide plates to 80 mm.

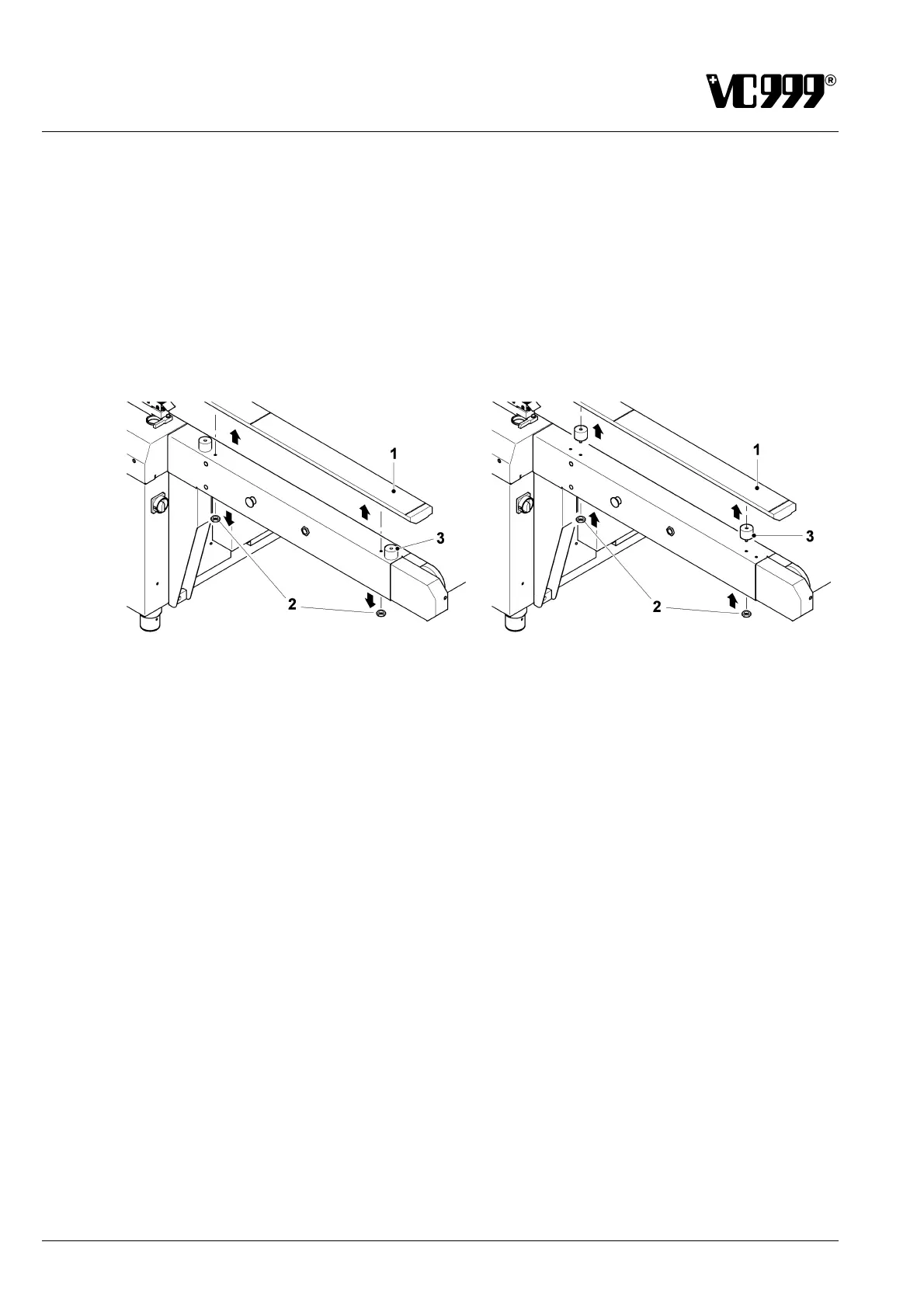

Fig. 9/5
Procedure:
1. To raise the guide plate (1) from the conveyor support, use a socket wrench to unscrew the nuts
(2) which hold it in position.
2. Subsequently lift up the guide plate (1).
3. Now remove the supports (3) from the conveyor support and screw them from below onto the set
screws on the guide plate (1).
4. Place the guide plate (1) on the conveyor support and fix it into position with the nuts (2).
