3. Loosen the screw (2) one turn.
4. Unscrew the screw (3). Firmly hold the sealing bar to ensure it cannot fall down.

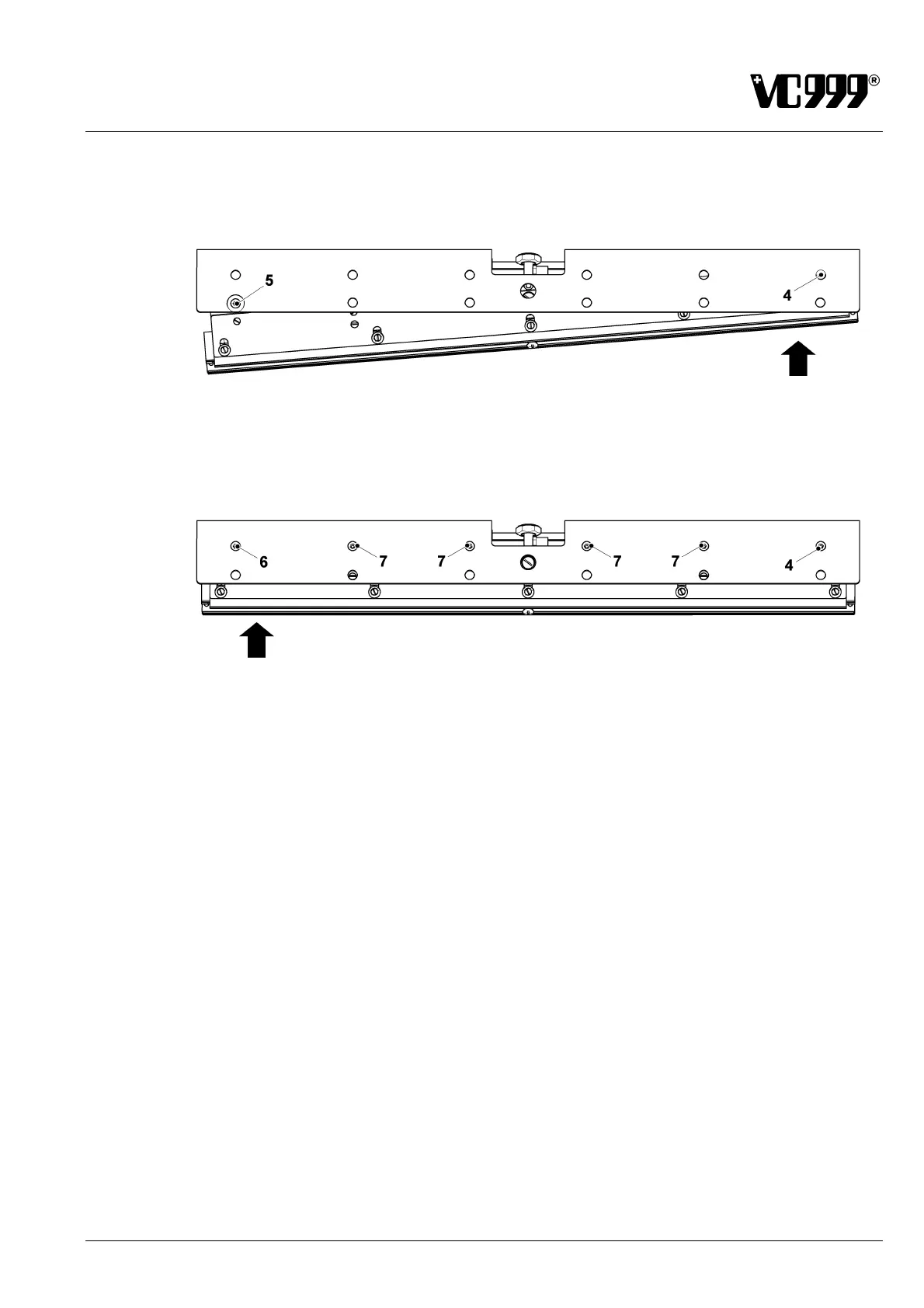

Fig. 9/3
5. Push the sealing bar up until it is possible to insert the removed screw (3) into the thread in the up-
per hole (4). Do not tighten the screw fully.
6. Unscrew the screw (5). Firmly hold the sealing bar to ensure it cannot fall down.
Fig. 9/4
7. Push the sealing bar up until it is possible to insert the removed screw (5) into the thread in the up-
per hole (6).
8. Screw in the screws (7).
9. Now fully tighten all 6 screws (Fig. 9/4, Pos. 4, 6, 7).
