Vertiv | NetSure™ 8200 Series -48 VDC Power System Installation Manual (IM582140000) | Rev. A
102

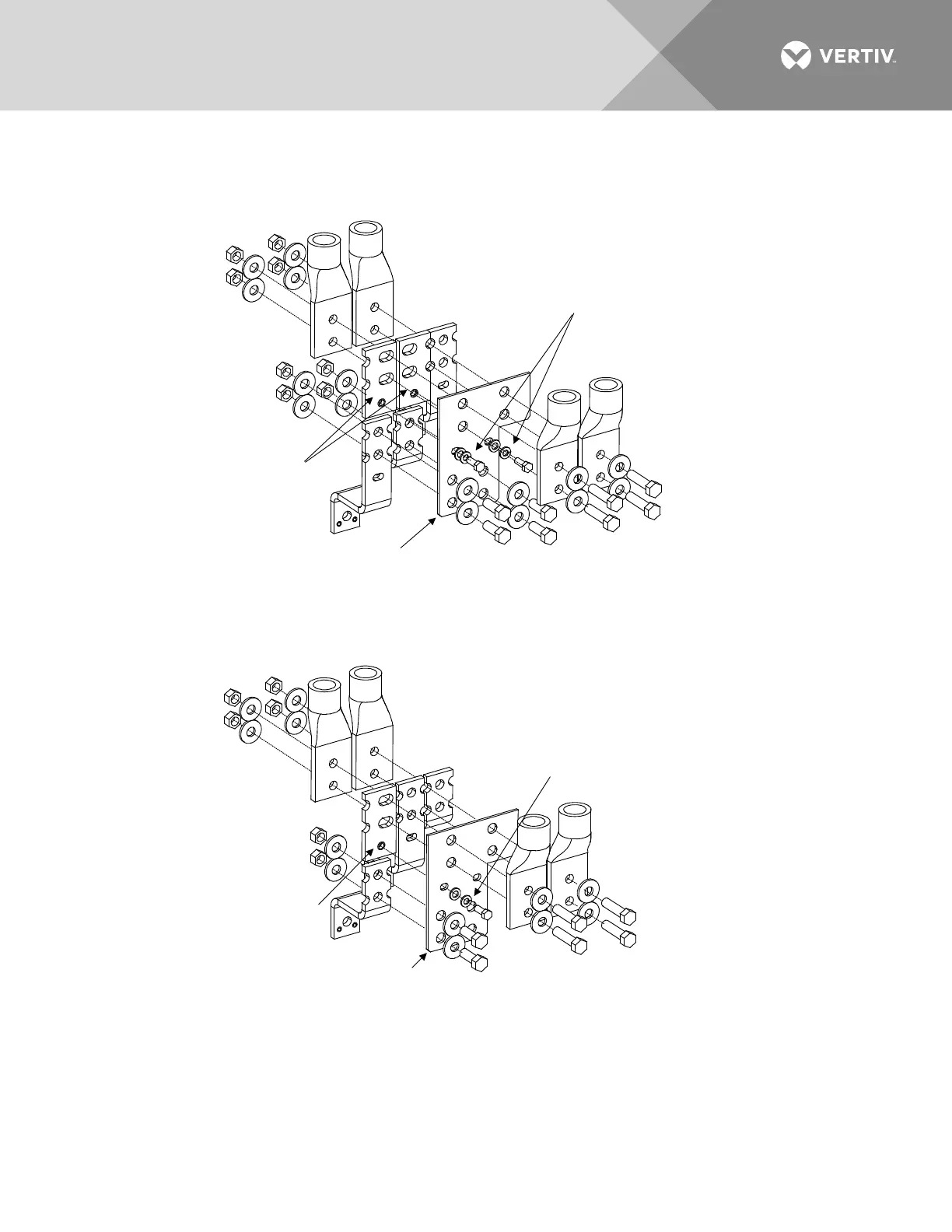

Figure 68: Installing Load Lug Adapter Plates into Distribution Only Bays (cont’d from previous page, cont’d on
next page)
3-Position
Lug Adapter Kit
P/N 529131
Customer
Supplied
Lugs
Customer
Supplied
Lugs
Customer
Supplied
Lugs
Customer
Supplied
Lugs
Busbars
P/O Dist.
Bay
Busbars
P/O Dist.
Bay
Note: Apply Electrical Anti-Oxidation
Compound to all Busbar
Mating Surfaces.
Note: Concave Side of Belleville Washer Faces Busbar,
Convex Side Faces Bolt or Nut.
(1) Adapter Busbar,
P/N 528795
(1) Spacer Busbar,
P/N 528806
(1) Spacer Busbar,
P/N 528806
(1) Adapter Busbar,
P/N 528795
Torque to 180 in-lbs.
(4) 3/8-16 Hex Nut,
P/N 228567100
(4) 3/8" Flat Washer,
P/N 214204100
(4) 3/8-16 x 1-1/2" Bolt,
P/N 227647000
(4) 3/8" Belleville Lock Washer,
P/N 214825000
(4) 3/8-16 x 1" Bolt,
P/N 227646600
(4) 3/8" Belleville Lock Washer,
P/N 214825000
(4) 3/8-16 Hex Nut,
P/N 228567100
(4) 3/8" Flat Washer,
P/N 214204100
(2) 1/4-20 x 5/8" Bolt,
P/N 227640300
(2) 1/4" Lock Washer,
P/N 215111100
(2) 1/4" Flat Washer,
P/N 214110100
Torque to 180 in-lbs.
(2) 3/8-16 Hex Nut,
P/N 228567100
(2) 3/8" Flat Washer,
P/N 214204100
(4) 3/8-16 Hex Nut,
P/N 228567100
(4) 3/8" Flat Washer,
P/N 214204100
(4) 3/8-16 x 1-1/2" Bolt,
P/N 227647000
(4) 3/8" Belleville Lock Washer,
P/N 214825000
(2) 3/8-16 x 1" Bolt,
P/N 227646600
(2) 3/8" Belleville Lock Washer,
P/N 214825000
(1) 1/4-20 x 5/8" Bolt,
P/N 227640300
(1) 1/4" Lock Washer,
P/N 215111100
(1) 1/4" Flat Washer,
P/N 214110100
Torque to 84 in-lbs.
Torque to 84 in-lbs.
