Vertiv | NetSure™ 8200 Series -48 VDC Power System Installation Manual (IM582140000) | Rev. A
103

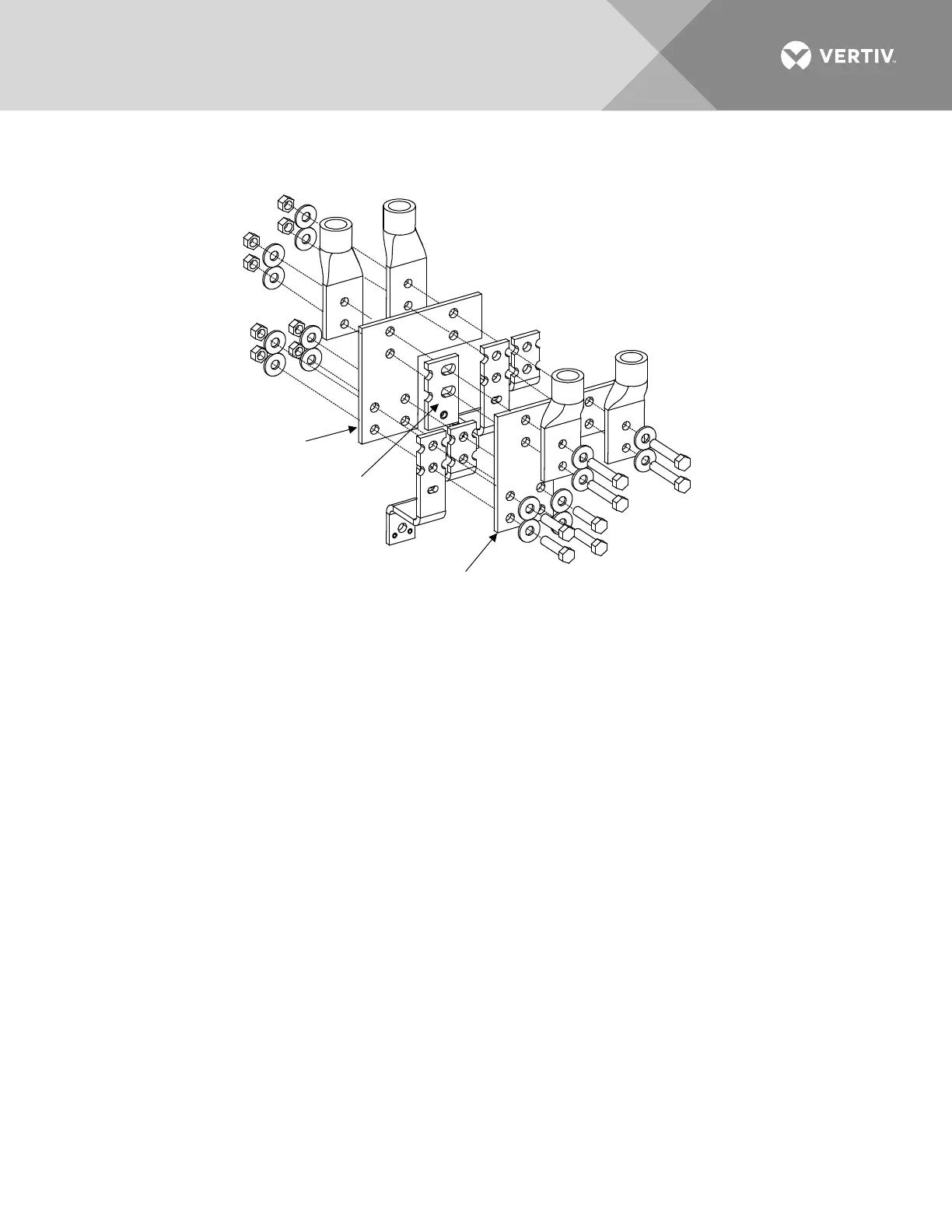

Figure 68: Installing Load Lug Adapter Plates into Distribution Only Bays (cont’d from previous page)
4-Position
Lug Adapter Kit
P/N 534420
Busbars
P/O Dist.
Bay
Customer
Supplied
Lugs
Customer
Supplied
Lugs
(4) 3/8-16 x 1-1/2" Bolt,
P/N 227647000
(4) 3/8" Belleville Lock Washer,
P/N 214825000
Torque to 180 in-lbs.
(1) Adapter Busbar,
P/N 534421
(1) Spacer Busbar,
P/N 528806
(1) Adapter Busbar,
P/N 534421
(8) 3/8-16 Hex Nut,
P/N 228567100
(8) 3/8" Flat Washer,
P/N 214204100
(4) 3/8-16 x 2" Bolt,
P/N 227647400
(4) 3/8" Belleville Lock Washer,
P/N 214825000
Note: Apply Electrical Anti-Oxidation
Compound to all Busbar
Mating Surfaces.
Note: Concave Side of Belleville Washer Faces Busbar,
Convex Side Faces Bolt or Nut.
