Vertiv NetSure 8200 Series Installation Manual

Vertiv | NetSure™ 8200 Series -48 VDC Power System Installation Manual (IM582140000) | Rev. A
104

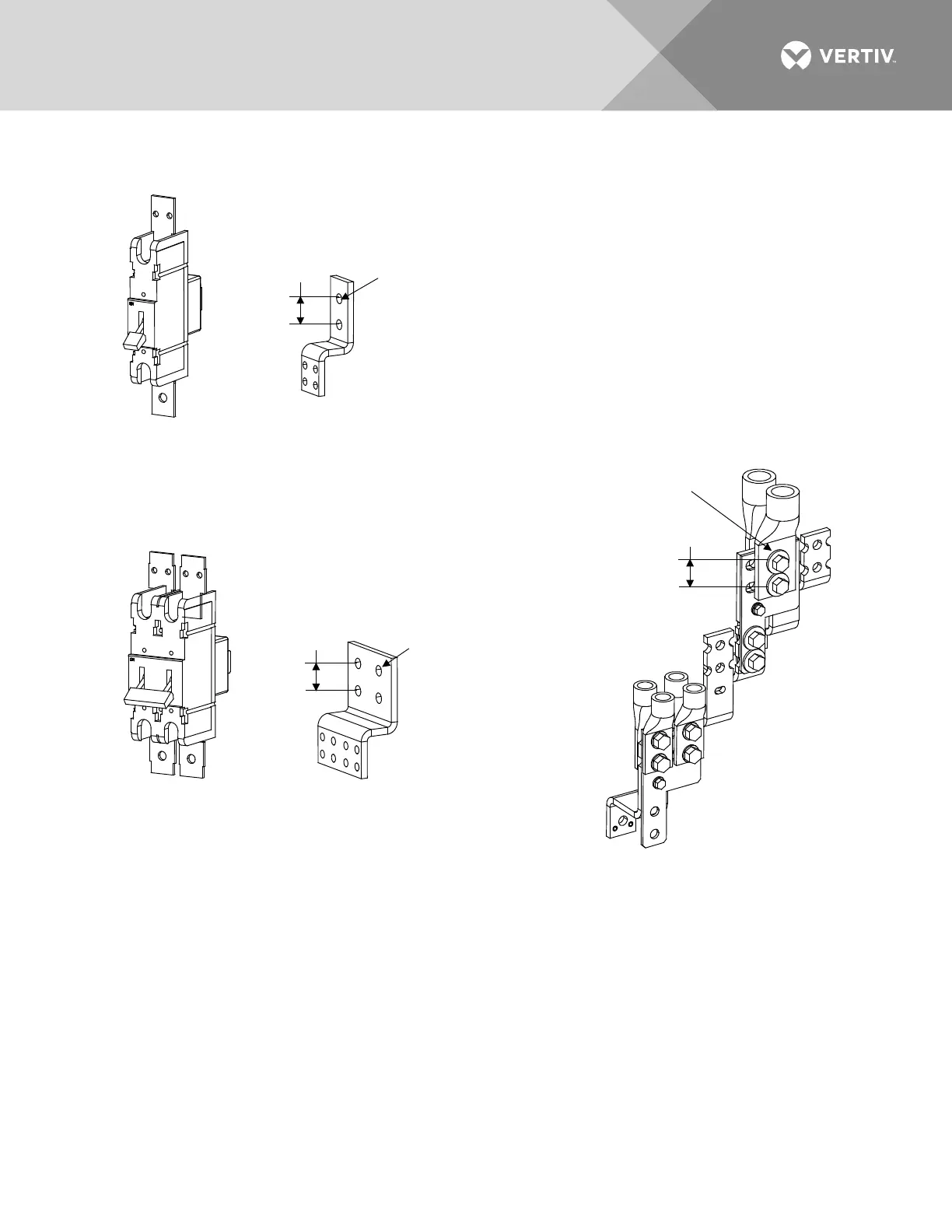

Figure 69: 218 Circuit Breakers Lug Adapter Kits (cont’d on next page)
1-Pole 218 Circuit
Breakers Assemblies
Load Lug Adapter Plate
for 1-Pole Devices
1.000"
3/8" Clearance Holes
Lug Adapter P/N 513700,
Kit P/N 520891
(see Notes 1, 2, 3)
2-Pole 218 Circuit
Breaker Assemblies
Load Lug Adapter Plate
for 2-Pole Devices
3/8" Clearance Holes
Lug Adapter P/N 513701,
Kit P/N 520892
(see Notes 1, 2, 3)
NO LUG ADAPTER KITS
REQUIRED WHEN USED IN
DISTRIBUTION ONLY BAYS
Lug Adapter Kits
Power/Distribution Bays
Lug Adapter Kits
Distribution Only Bays
2-Position
Lug Adapter Kit
P/N 529132
(see Notes 4, 6, 7, 8)
Lug Adapter Kits
Power/Distribution Bays
Lug Adapter Kits
Distribution Only Bays
Notes:
1. Maximum size of wire to be connected to a single lug position is 750 kcmil.
2. Maximum lug width is 1.937 inches.
3. Kit includes Load Lug Adapter Plate, plus 1/4" and 3/8" mtg. hardware.
4. Lug adapter accepts a maximum of (2) 750 kcmil or (4) 350 kcmil lugs.
5. Lug adapter accepts a maximum of (4) 750 kcmil lugs.
6. Lugs are not part of the kit, shown for illustration only.
7. Bay busbars are not part of the kit, shown for illustration only.
8. Two (2) kits shown for illustration of the kit installed on busbars with tops
even with each other and staggered.
1.000"
3/8" Clearance Hole
1.000"
