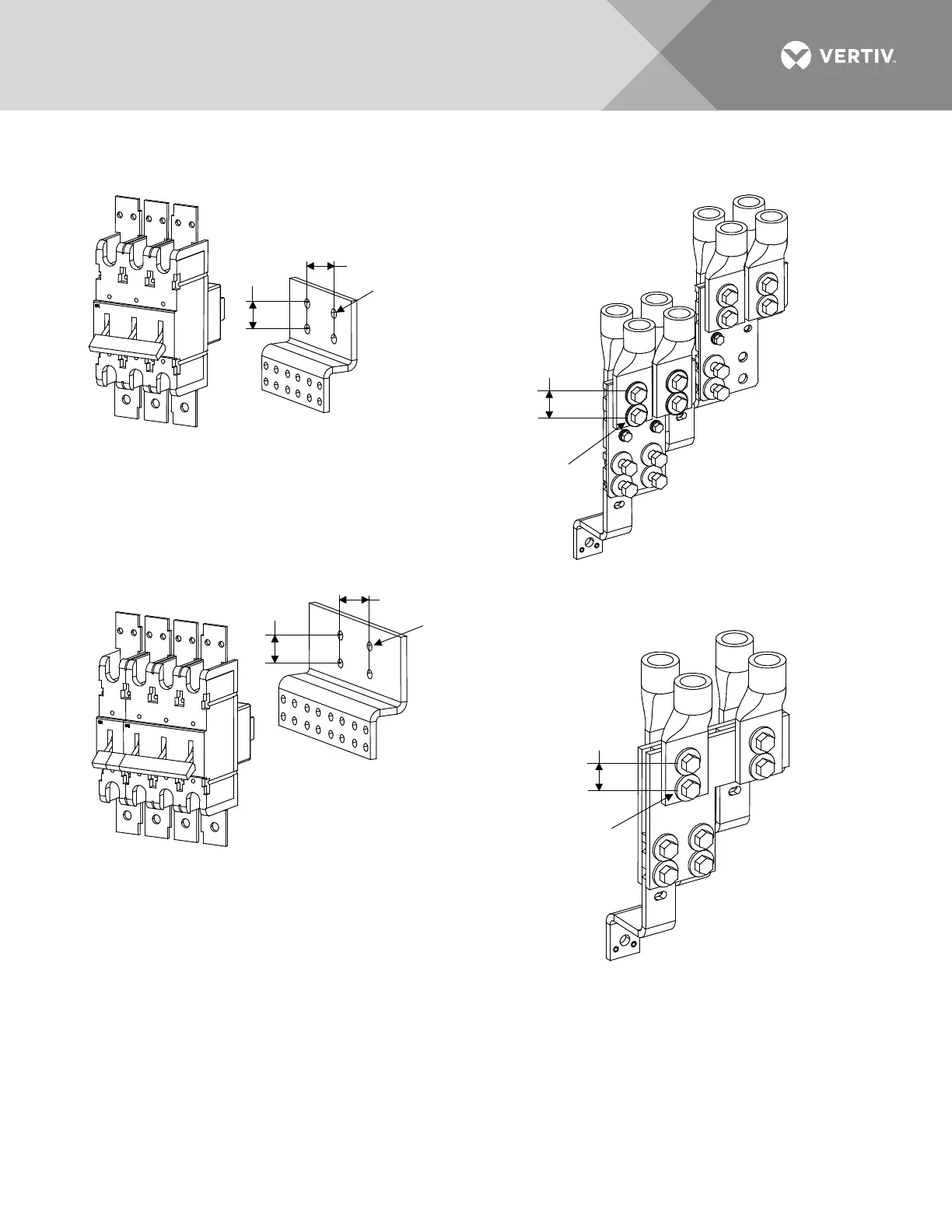

4-Pole 218 Circuit
Breaker Assemblies
3-Pole 218 Circuit
Breaker Assemblies
Load Lug Adapter Plate
for 3-Pole Devices
1.000"
2.000"
3/8" Clearance Holes
Lug Adapter P/N 513702,
Kit P/N 520893
(see Notes 1, 2, 3)
Lug Adapter Kits
Power/Distribution Bays
Load Lug Adapter Plate
for 4-Pole Devices
2.000"
1.000"
3/8" Clearance Holes
Lug Adapter P/N 514765,
Kit P/N 520894
(see Notes 1, 2, 3)
Lug Adapter Kits
Power/Distribution Bays
Notes:
1. Maximum size of wire to be connected to a single lug position is 750 kcmil.
2. Maximum lug width is 1.937 inches.
3. Kit includes Load Lug Adapter Plate, plus 1/4" and 3/8" mtg. hardware.
4. Lug adapter accepts a maximum of (2) 750 kcmil or (4) 350 kcmil lugs.
5. Lug adapter accepts a maximum of (4) 750 kcmil lugs.
6. Lugs are not part of the kit, shown for illustration only.
7. Bay busbars are not part of the kit, shown for illustration only.
8. Two (2) kits shown for illustration of the kit installed on busbars with tops
even with each other and staggered.
3-Position
Lug Adapter Kit
P/N 529131
(see Notes 5, 6, 7, 8)
Lug Adapter Kits
Distribution Only Bays
3/8" Clearance Hole
1.000"
4-Position
Lug Adapter Kit
P/N 534420
(see Notes 5, 6, 7)
Lug Adapter Kits
Distribution Only Bays
3/8" Clearance Hole
1.000"
To Next Page
