Vertiv | NetSure™ 8200 Series -48 VDC Power System Installation Manual (IM582140000) | Rev. A
111

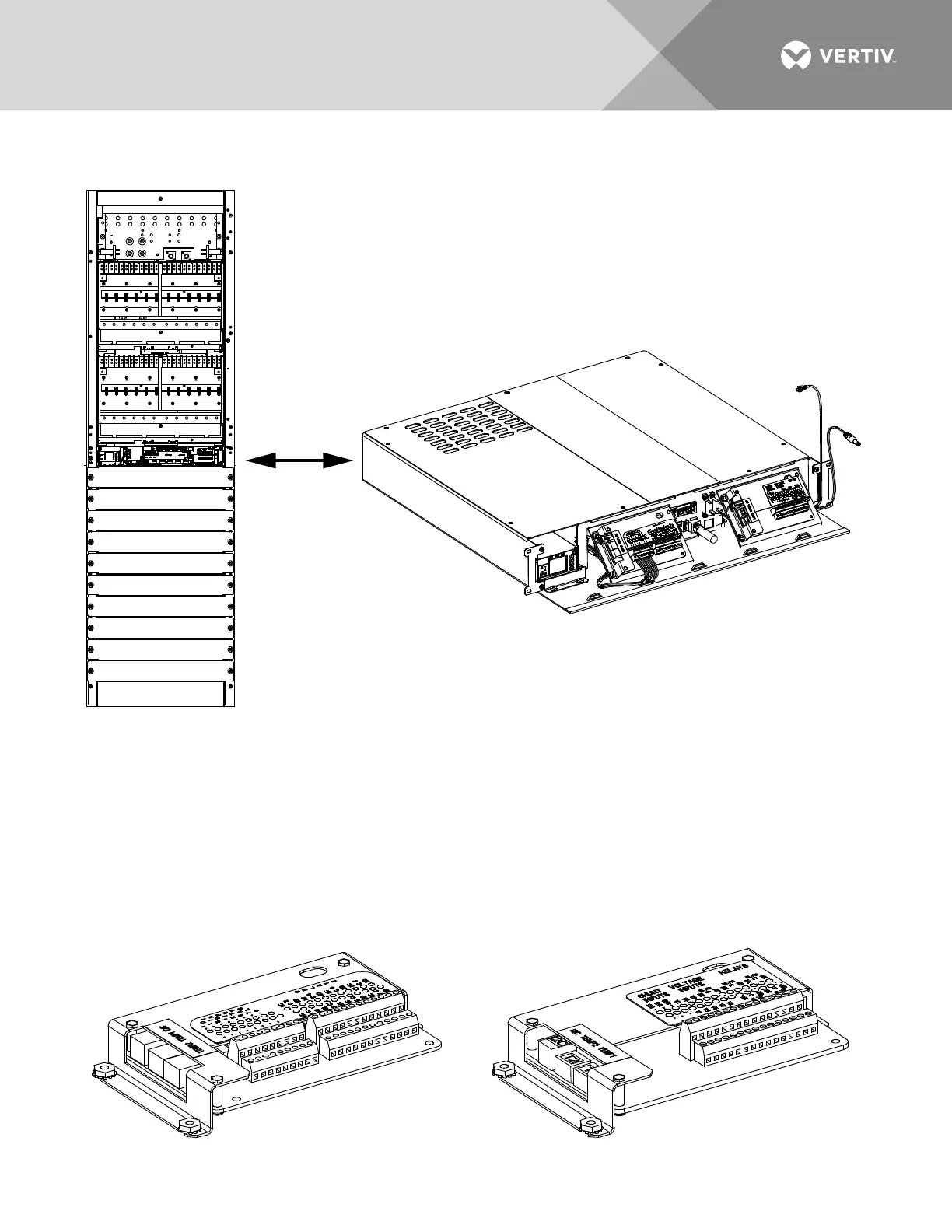

Figure 73: IB2 and EIB Interface Board Location
EIB Assembly
EIB Assembly
IB2 Assembly
IB2 Assembly
Primary Power/Distribution Bay
Primary Power Only Bay Similar
Front door removed in illustration for clarity only.
