Vertiv NetSure 8200 Series Installation Manual

Vertiv | NetSure™ 8200 Series -48 VDC Power System Installation Manual (IM582140000) | Rev. A
158

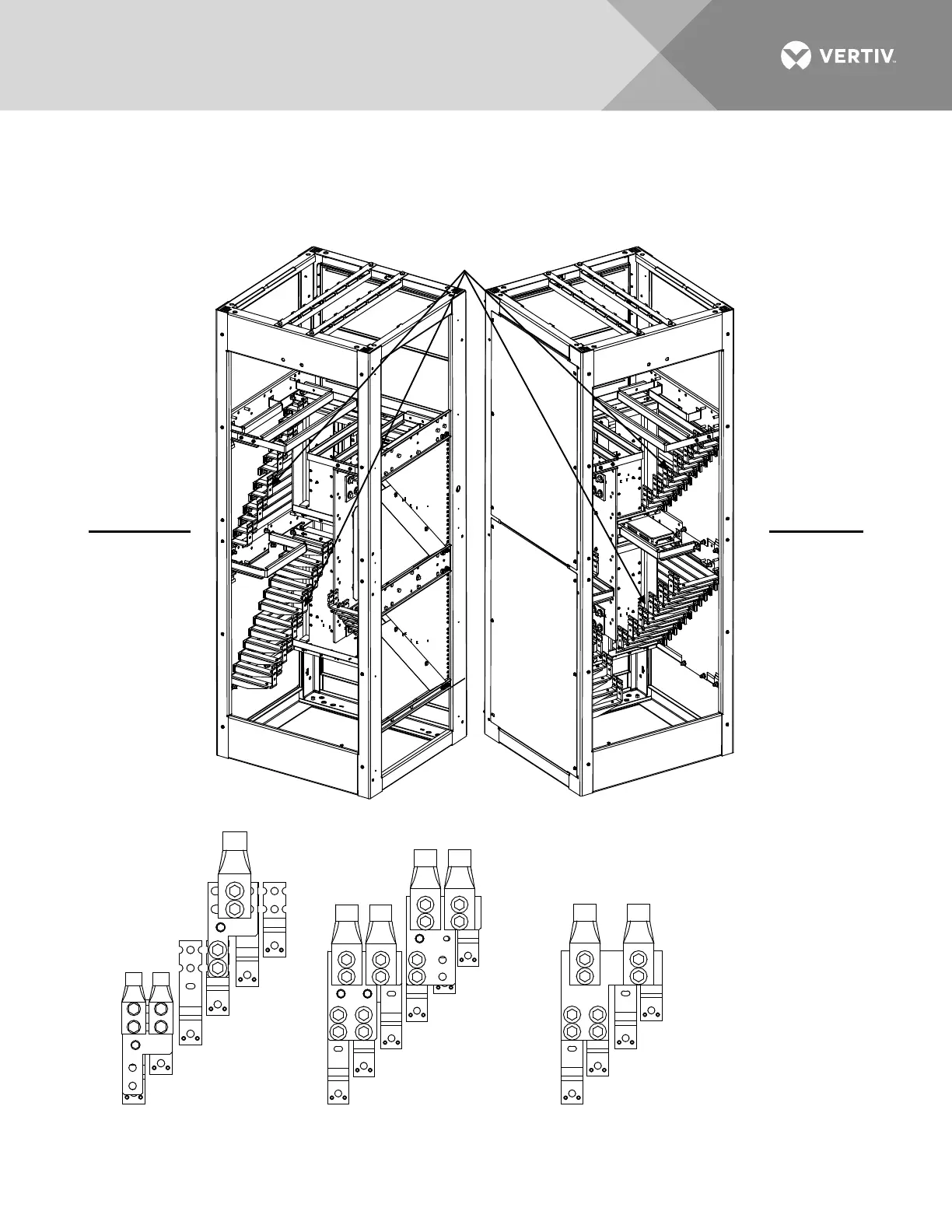

Figure 96: Load Connections to 218 Circuit Breakers and TPL Fuses
to Distribution:
Bus #2
Position #24
to Distribution:
Bus #2
Position #19
to Distribution:
Bus #2
Position #18
to Distribution:
Bus #2
Position #13
to Distribution:
Bus #4
Position #48
to Distribution:
Bus #4
Position #43
to Distribution:
Bus #4
Position #42
to Distribution:
Bus #4
Position #37
to Distribution:
Bus #1
Position #1
to Distribution:
Bus #1
Position #6
to Distribution:
Bus #1
Position #7
to Distribution:
Bus #1
Position #12
to Distribution:
Bus #3
Position #25
to Distribution:
Bus #3
Position #30
to Distribution:
Bus #3
Position #31
to Distribution:
Bus #3
Position #36
Rear cover panels removed in illustration for clarity.
Rear View Rear View
Connect Load Leads Here
(Load Lug Adapter Plates
May Be Required, Refer to
Previous Illustrations)
2-Position
Lug Adapter Kit
P/N 529132
3-Position
Lug Adapter Kit
P/N 529131
4-Position
Lug Adapter Kit
P/N 534420
Recm. Torque
3/8" Hardware
using Belleville
Lock Washer,
180 in-lbs
3/8" Hardware
using flat washer
and lock washer,
300 in-lbs
