Vertiv | NetSure™ 8200 Series -48 VDC Power System Installation Manual (IM582140000) | Rev. A
To Optional Bullet Device Panel (TLS/TPS Fuses and Bullet Nose-Type Circuit Breakers)
Refer to Figure 97 for load lug landing locations.
When lugs are secured using 1/4 inch hardware, recommended torque is 60 in-lbs when a Belleville lock washer
is used, and 84 in-lbs when a standard flat washer and lock washer are used.
Load Side
Connect load leads to the busbars provided on the List C Fuse/Circuit Breaker Panel. These busbars provide
1/4-20 threaded holes on 5/8" centers for installation of customer provided two-hole lugs.
Customer must provide lug mounting bolts and additional hardware.
Bolt length: 3/4”.
Load Return Side
Load return leads are terminated outside the bay to customer provided return busbars.

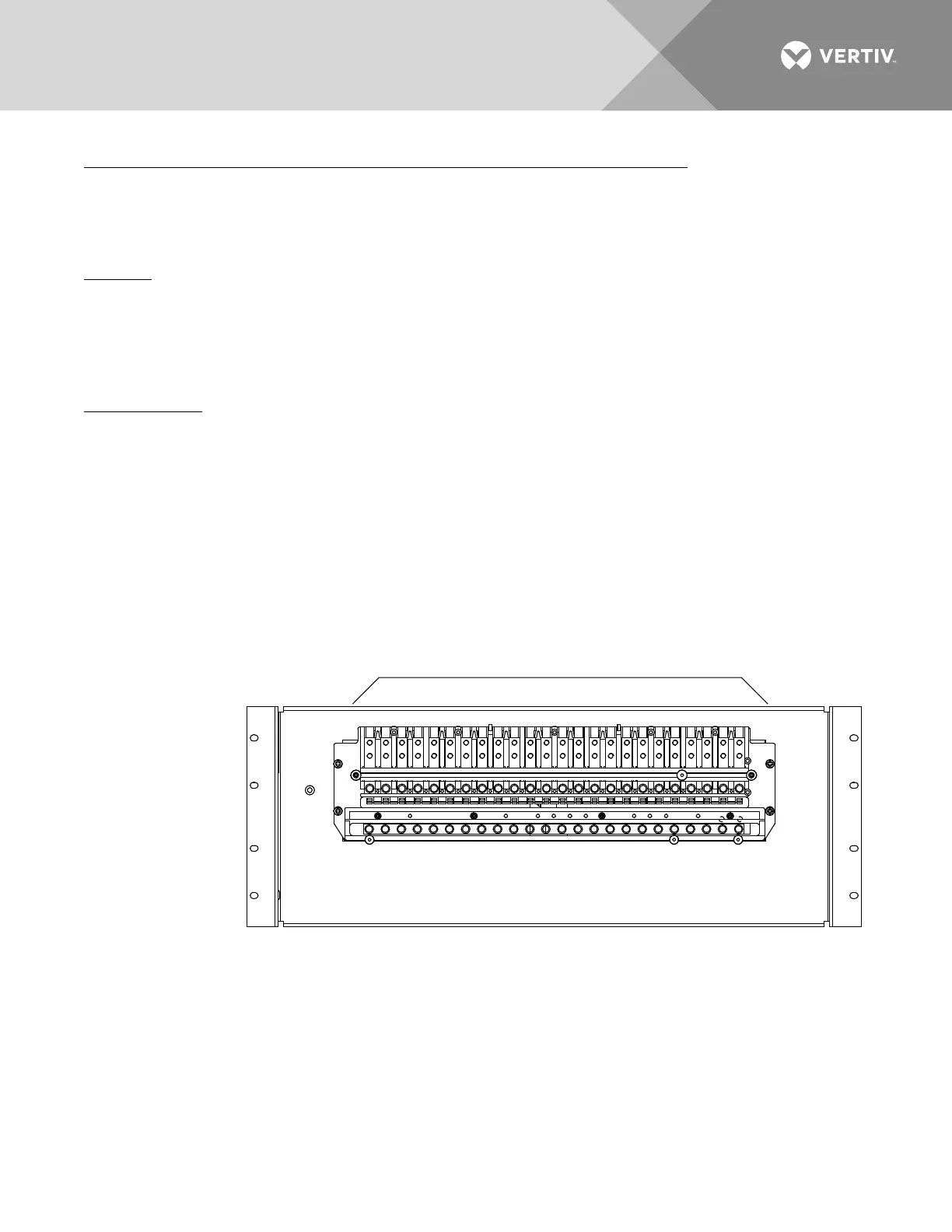

Figure 97:
Load Connections to Optional Bullet Device Panel (TLS/TPS Fuses and Bullet Nose-Type Circuit
Breakers)
Note: Load leads are connected to load busbars.
These busbars provide 1/4-20 threaded holes
on 5/8" centers for installation of customer
provided two-hole lugs. Customer must
provide lug mounting bolts and additional
hardware. Bolt length: 3/4".
Recm. Torque
1/4" Hardware
using Belleville
Lock Washer,
60 in-lbs
1/4" Hardware
using
flat washer
and lock washer,
84 in-lbs
To Next Page
