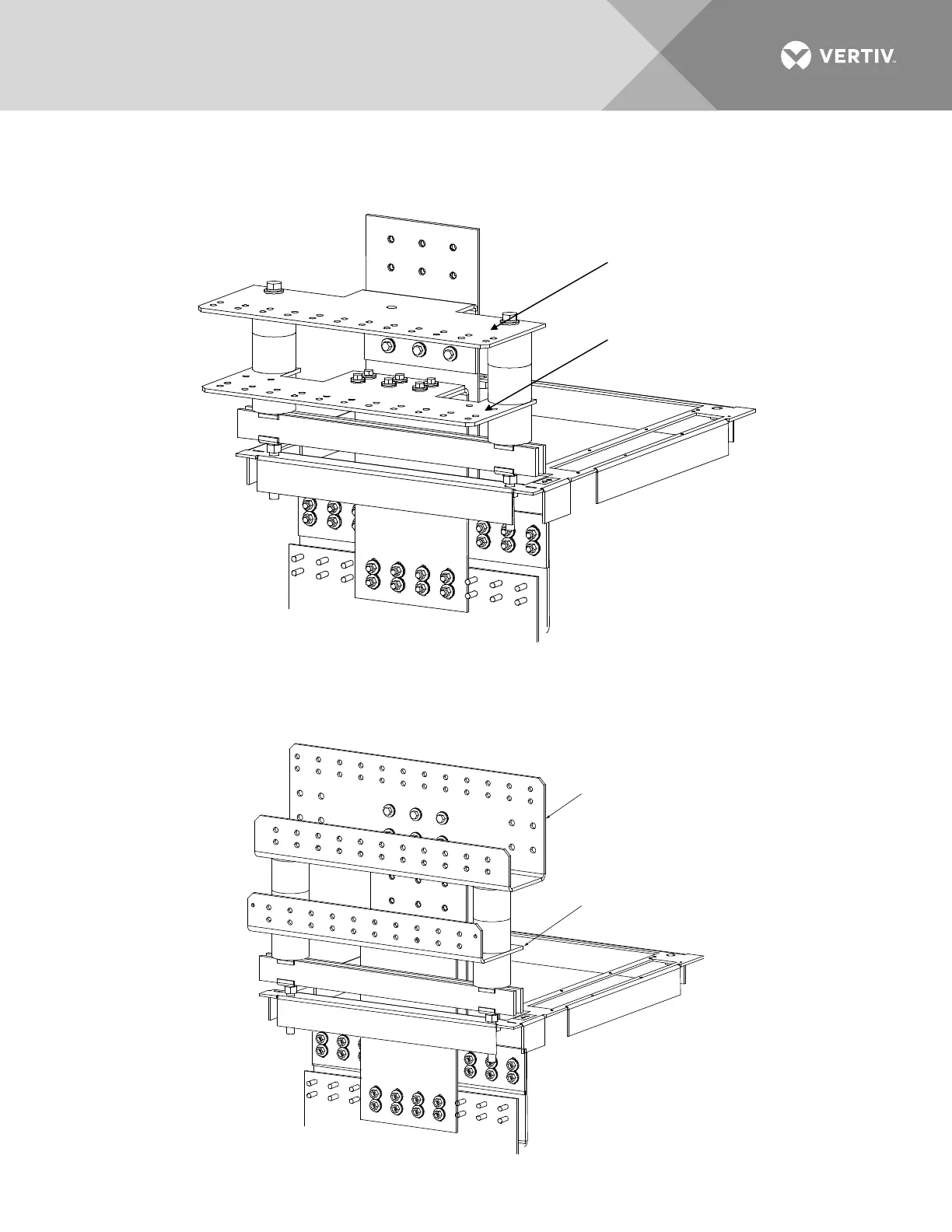

Figure 106: Battery Connection to Optional Horizontal Battery Termination Assembly on Power/Distribution
Bays
Figure 107: Battery Connection to Optional Vertical Battery Termination Assembly on Power/Distribution Bays
POSITIVE BATTERY
(GROUND RETURN +48V)
NEGATIVE BATTERY
(SUPPLY -48V)
Top Rear
of Bay
Recm. Torque
3/8" Hardware
using Belleville
Lock Washer
180 in-lbs, using
flat washer and
lock washer
300 in-lbs.
Top Rear
of Bay
POSITIVE BATTERY
(GROUND RETURN +48V)
NEGATIVE BATTERY
(SUPPLY –48V)
Recm. Torque
3/8” Hardware:
Using Bellevile Washer
180 in-lbs.
Using Flat Washer & Lock Washer
300 in-lbs
