Vertiv | NetSure™ 8200 Series -48 VDC Power System Installation Manual (IM582140000) | Rev. A
178
Power Only Bay
Located on the rear top of each bay are studs (3/8-16 on 1" centers). Attach battery leads to these using
customer supplied two-hole lugs and mounting hardware. When lugs are secured using 3/8 inch bolts;
recommended torque is 180 in-lbs when a Belleville lock washer is used, and 300 in-lbs when a standard flat
washer and lock washer are used.
Refer to Figure 108 for battery landing locations.

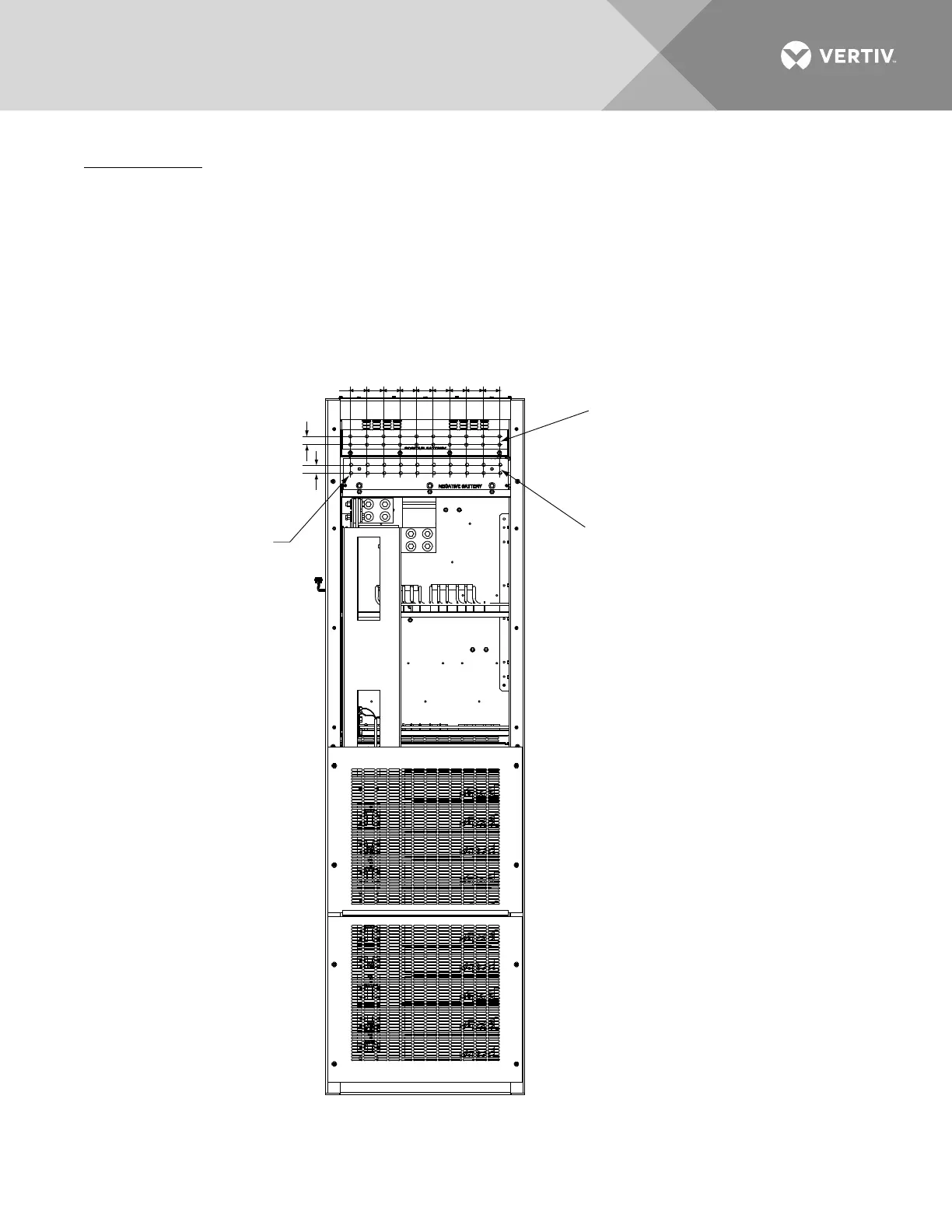

Figure 108: Battery Connection to Rear of Power Only Bay
POSITIV
E
BA
TT
E
RY
(G
ROU
ND R
ET
U
RN)
NEGATIVE BA
TTE
RY
(SUPPLY
-48
V)
2
.
000"
1
.00
0"
1.000"
3/8-16 Stud
(4
0)
Rear View
Power Only Bays
