Vertiv | NetSure™ 8200 Series -48 VDC Power System Installation Manual (IM582140000) | Rev. A
179
Distribution Only Bay
Located on the rear top of each bay are 3/8” clearance holes on 1" centers. Attach battery leads to these using
customer supplied two-hole lugs and mounting hardware. When lugs are secured using 3/8 inch hardware;
recommended torque is 180 in-lbs when a Belleville lock washer is used, and 300 in-lbs when a standard flat
washer and lock washer are used.
Refer to Figure 109 for battery landing locations.
The System's Positive Battery Busbar must be grounded. Refer to the National Electrical Code, applicable local
codes, and your specific site requirements for grounding specifications.

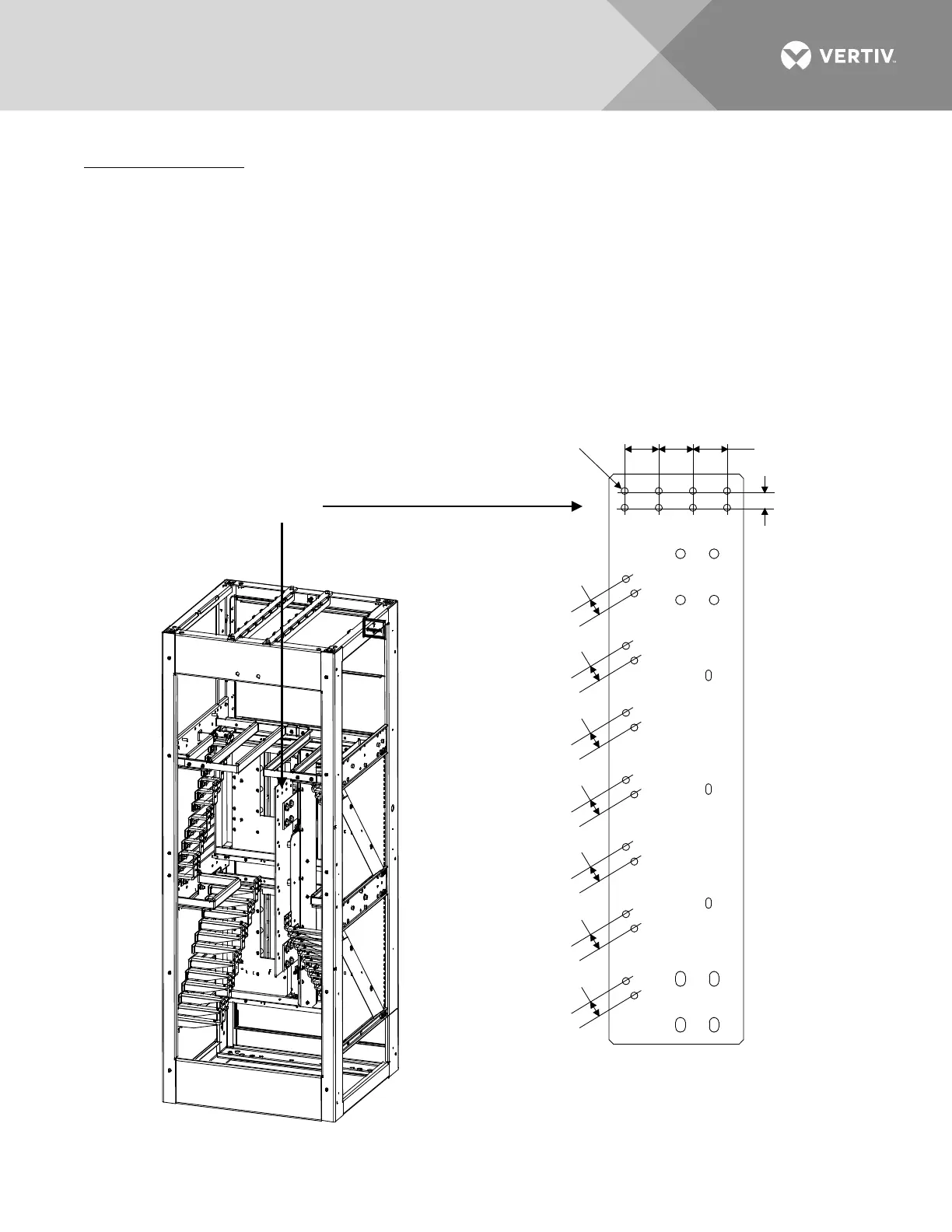

Figure 109: Battery Connection to Rear of Distribution Only Bay
3/8" Clearance
Hole (22)
2.031"
1.00"
Rear View
Distribution Bay
1.00"
1.00"
1.00"
1.00"
1.00"
1.00"
1.00"
DC Input
(Supply -48V)
