Vertiv NetSure 8200 Series Installation Manual

Vertiv | NetSure™ 8200 Series -48 VDC Power System Installation Manual (IM582140000) | Rev. A
75

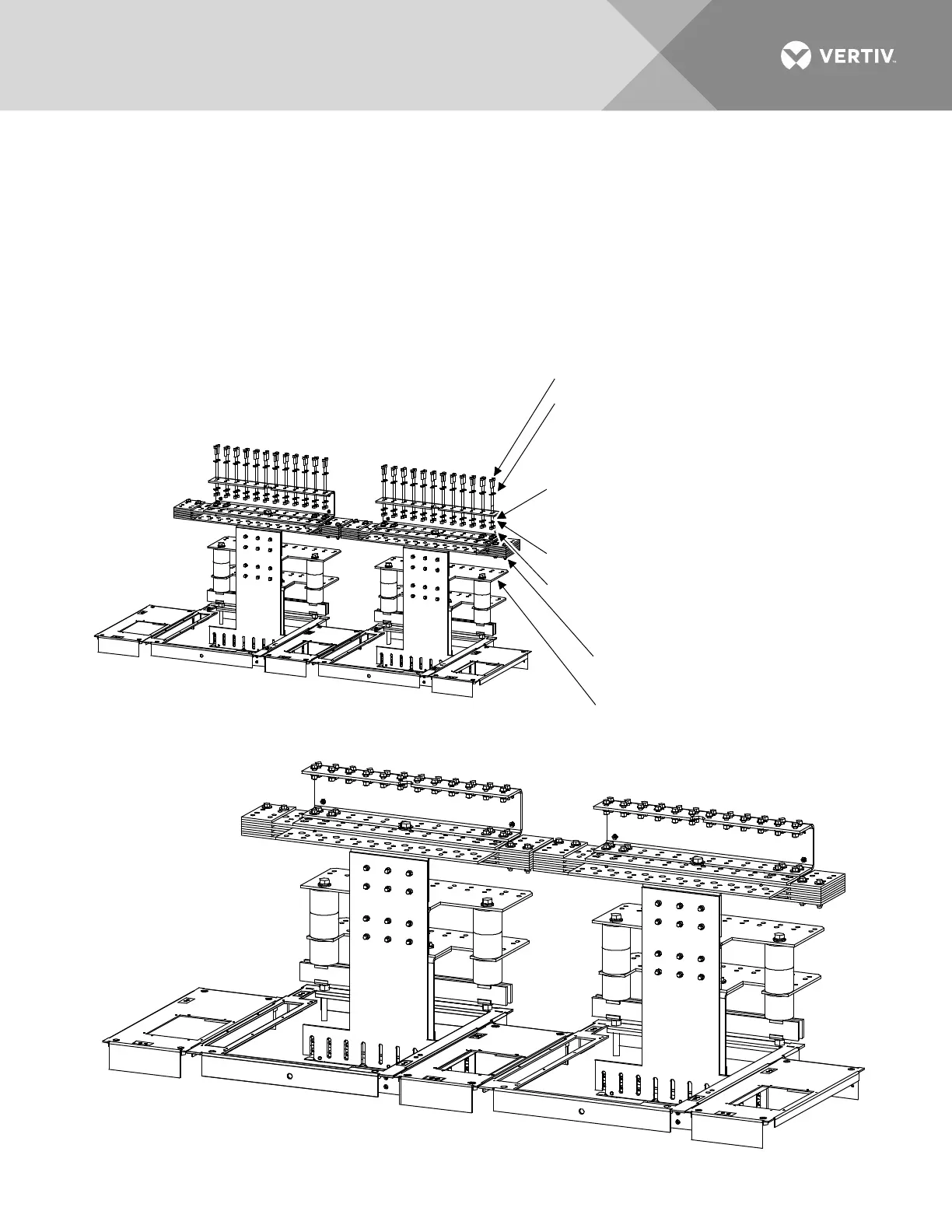

Figure 50: Power/Distribution Bay Load Return Lug Extension Busbar Assembly (P/N 514543) Assembly
Procedure Step 2B
(24*) 3/8-16 x 3" Bolt, P/N 227647800
(24*) 3/8" Flat Washer, P/N 214112100
(thinner than other Kit
supplied 3/8" flat washer)
(24*) 3/8" Flat Washer, P/N 214112100
(thinner than other Kit
supplied 3/8" flat washer)
(24*) 3/8" Lock Washer, P/N 215111300
(24*) 3/8-16 Nut, P/N 228567100
Previously Assembled
Kit P/N 514690 or 514691
Previously Assembled
Kit P/N 554873
Front Top
of Bay
Assembled
View
* Quantities are per Kit,
two Kits shown in Illustrations.
STEP 2B
Install "Lug Mounting Bolts"
(List 102 and 112 Bays E/W List 130 or 131 PDSC).
PROCEDURE PROVIDED FOR REFERENCE ONLY,
INSTALL BOLTS AS LUGS ARE INSTALLED TO BUSBAR
Torque to 300 in-lbs.
