System Installation
• The AC refrigerant used is R410A. Low quality or counterfeit refrigerant will cause severe damage to the
system. Therefore, use the refrigerant recommended by Vertiv Co. Any damage or fault due to use of a
low quality refrigerant or any other brand (other than the one recommended by Vertiv) will result in the
warranty getting void.
• On completion of the installation, prior to start up or commissioning, ensure that all the connected pipes
are installed accurately and do not have any leakage. Apply a sealant to the unit pipe outlets to prevent
leakage.
2.3.4. Installation of the 600mm wide Air conditioner with an integrated Condenser
The 600m wide integrated unit doesn’t need any separate air conditioner assembly as the air conditioner is
pre-installed in the cabinet before shipping. The copper pipes and cables have also been installed prior to
shipping. Therefore, only the interfaces have to be checked onsite following which the condenser valve needs
to be turned on.
Opening the rear cover of the top frame body for the integrated unit
The clamping mode of the rear cover of the top frame body can be easily removed by observing the following
steps:
1. Initially, open the outer cover on the rear part of the body frame. Remove the 2 xing screws on the top of
the cover and push upward to remove the cover. Figure 2-24 shows the procedure for the same.

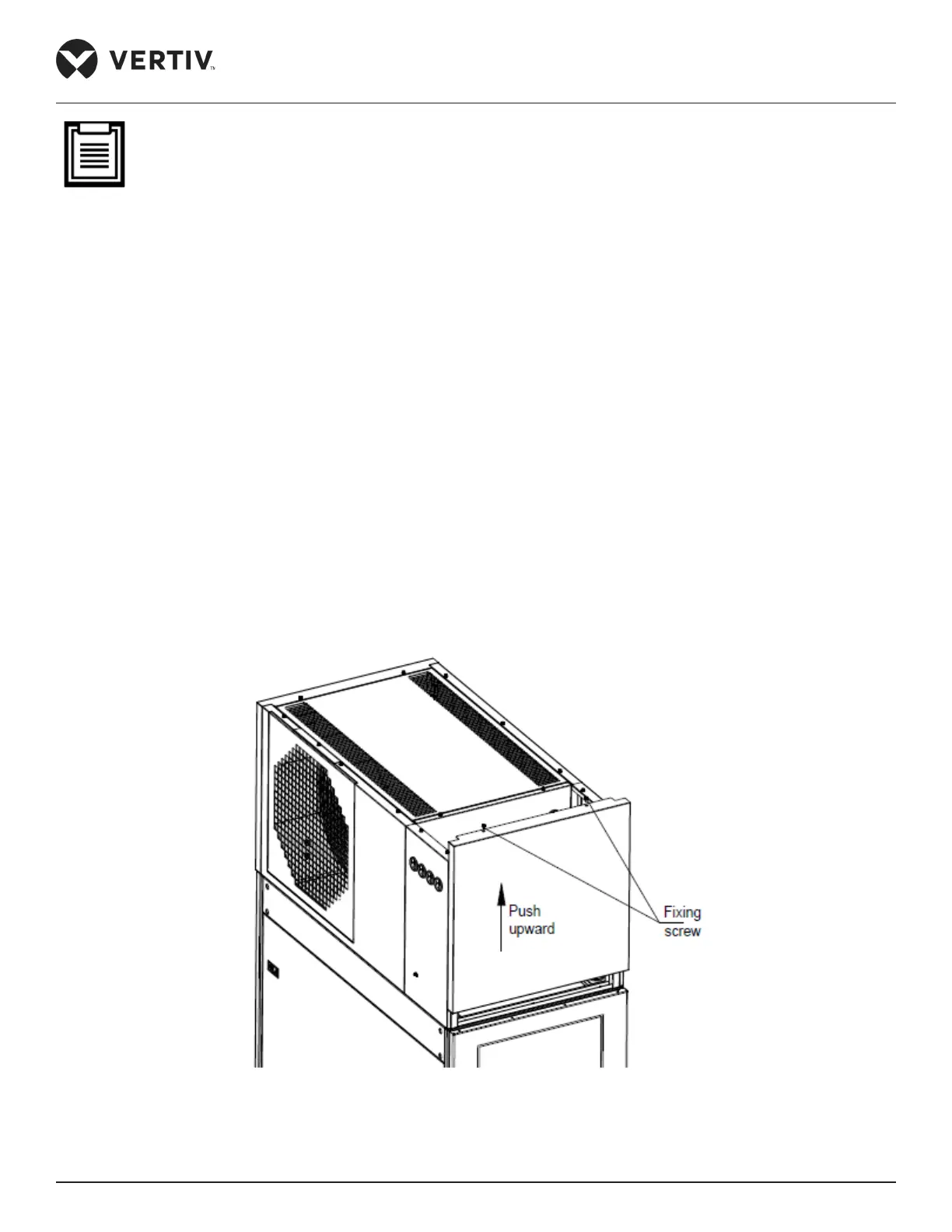

Figure 2-24 Removing the rear cover of the top body frame
