Vertiv SmartCabinet - 2.3.5. Connection of the Drain Pipe of the indoor unit

Vertiv | SmartCabinet | User Manual 37
System Installation

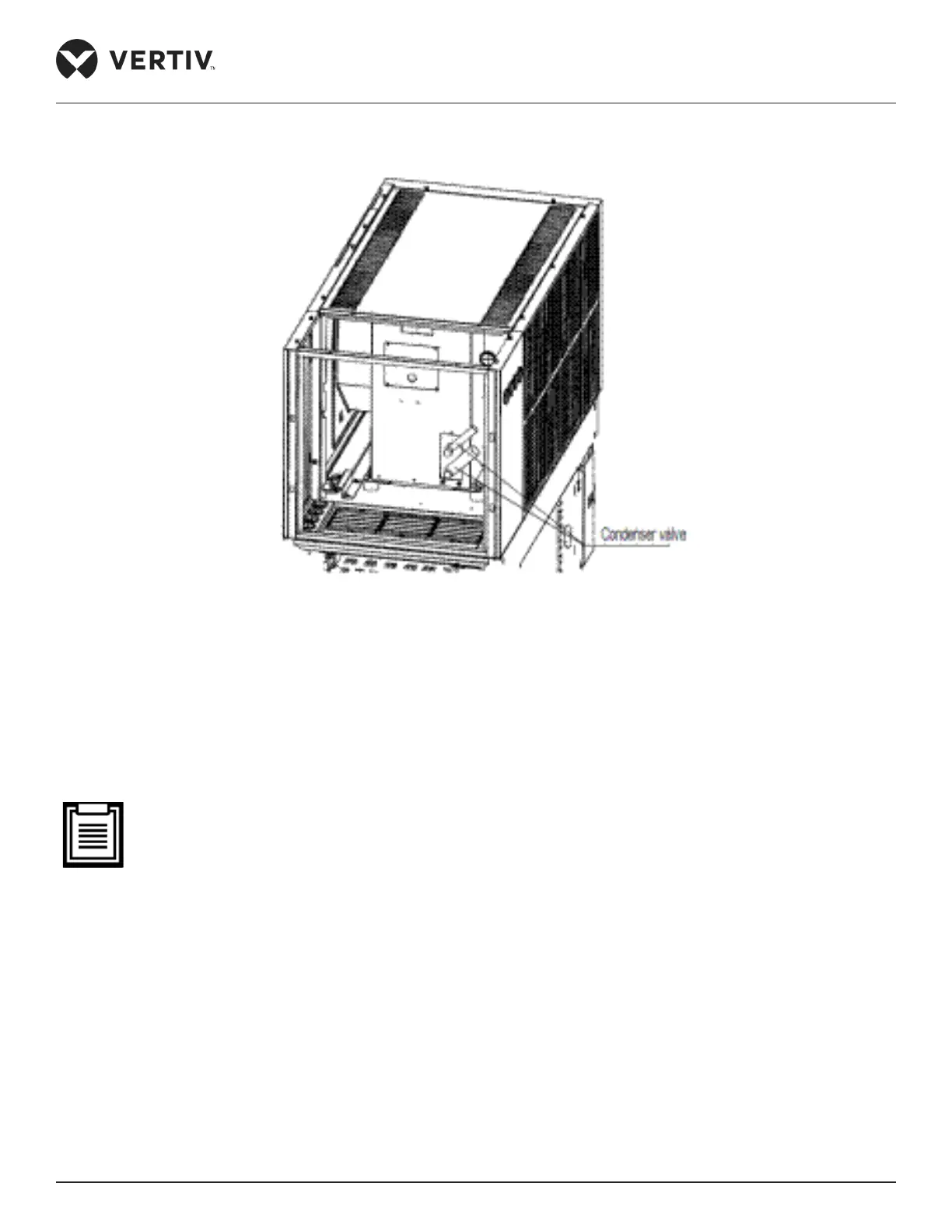

Figure 2-26 depicts the image displaying the opening of the condenser valve:
Figure 2-26 Opening the condenser valve
2.3.5. Connection of the Drain Pipe of the indoor unit
The indoor unit drains water to the tray in the cabinet directly. The condensate water ows to the drainage
channel or outdoors along the drain pipe located at the bottom of the cabinet as shown in Figure 2-26. The
standard length of the drain pipe is 5m.
• The drain pipe cannot be placed at frozen places or in freezing temperature.
• It must be laid close to the ground.
• The pipe must not be at higher level than the tray outlet.
Figure 2-27 shows an example of condensate water pipe location:
