Maintenance and care of the instrument

VF1807090083 EN revision 64

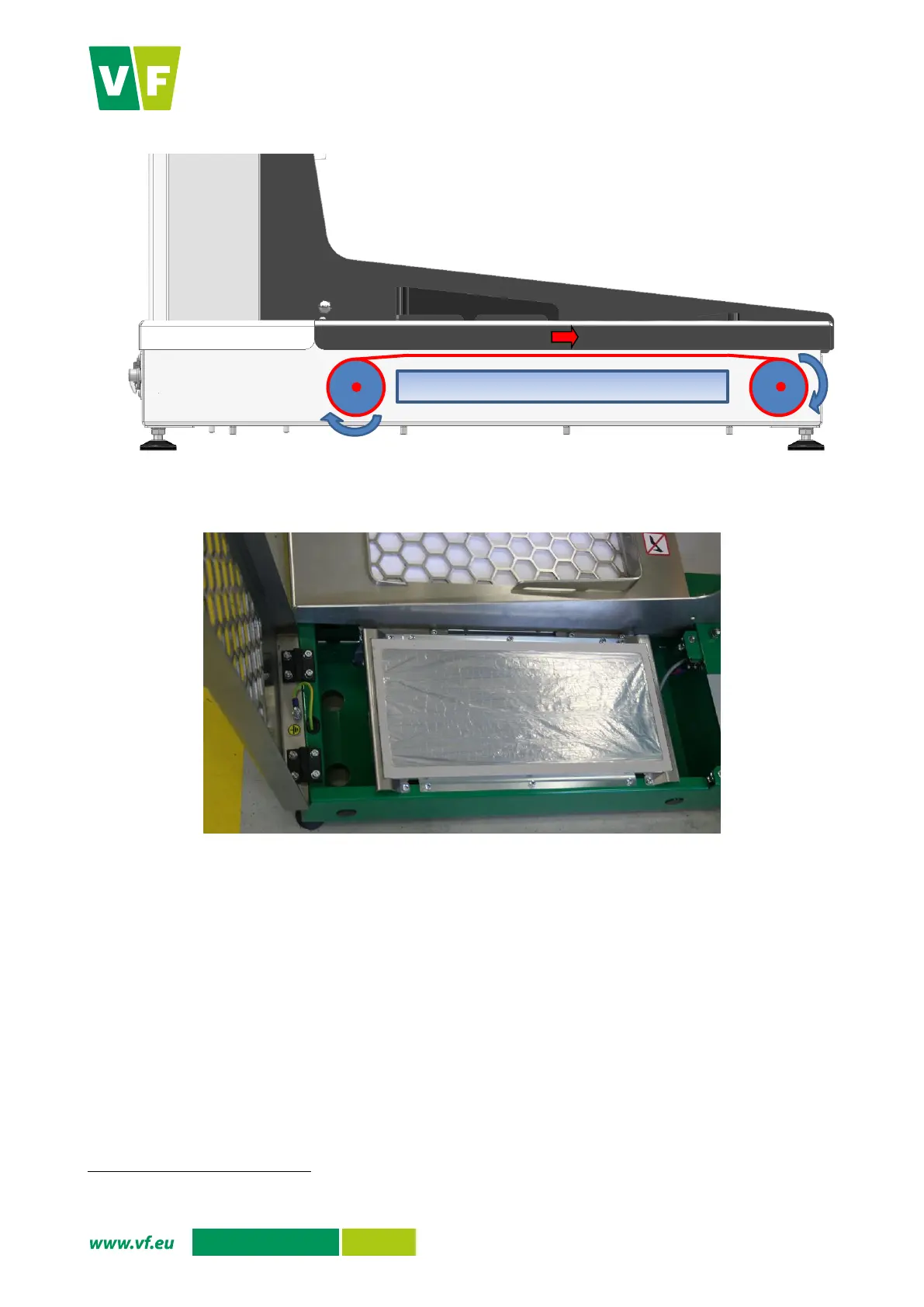

Fig. 51 Orientation of protective foil on a paper reel

Fig. 52 Protective foil in a frame on the foot detector (with open protective grid)

8.5. Cleaning the dirt tray for hand detectors

1. Remove the metal triangular grid at the bottom of the body of hand detectors on the left and right

sides of the instrument (1x countersunk M4 allen screw).

2. Pull out and clean the released metal tray, which is located underneath the grid.

3. Reassemble the tray and triangular grid.

This applies only to vertical hand detectors variants.
