5.4. Storage
Store the instrument in a vertical position.
Store the instrument in suitable environment.
The instrument should not be stored without switching on for more than 3 months.
Store the instrument in conditions that eliminate any mechanical damages.
Avoid contact with water, chemicals and/or rain.
During storage, protect the equipment against dust.
5.5. Installation
The instrument is supplied assembled and ready for use.
The installation shall be performed by the manufacturer, service organization trained by the
manufacturer, or user’s staff trained by the manufacturer.
Electric parts of the instrument may only be installed and connected by a person qualified in
compliance with the applicable legislation of the country of the instrument’s operation.
The instrument can be connected to the power supply network by means of an IEC supply
connector with the main switch on the back panel or a grommet to the terminal board with the
main switch located underneath the protective grid of the foot detectors.

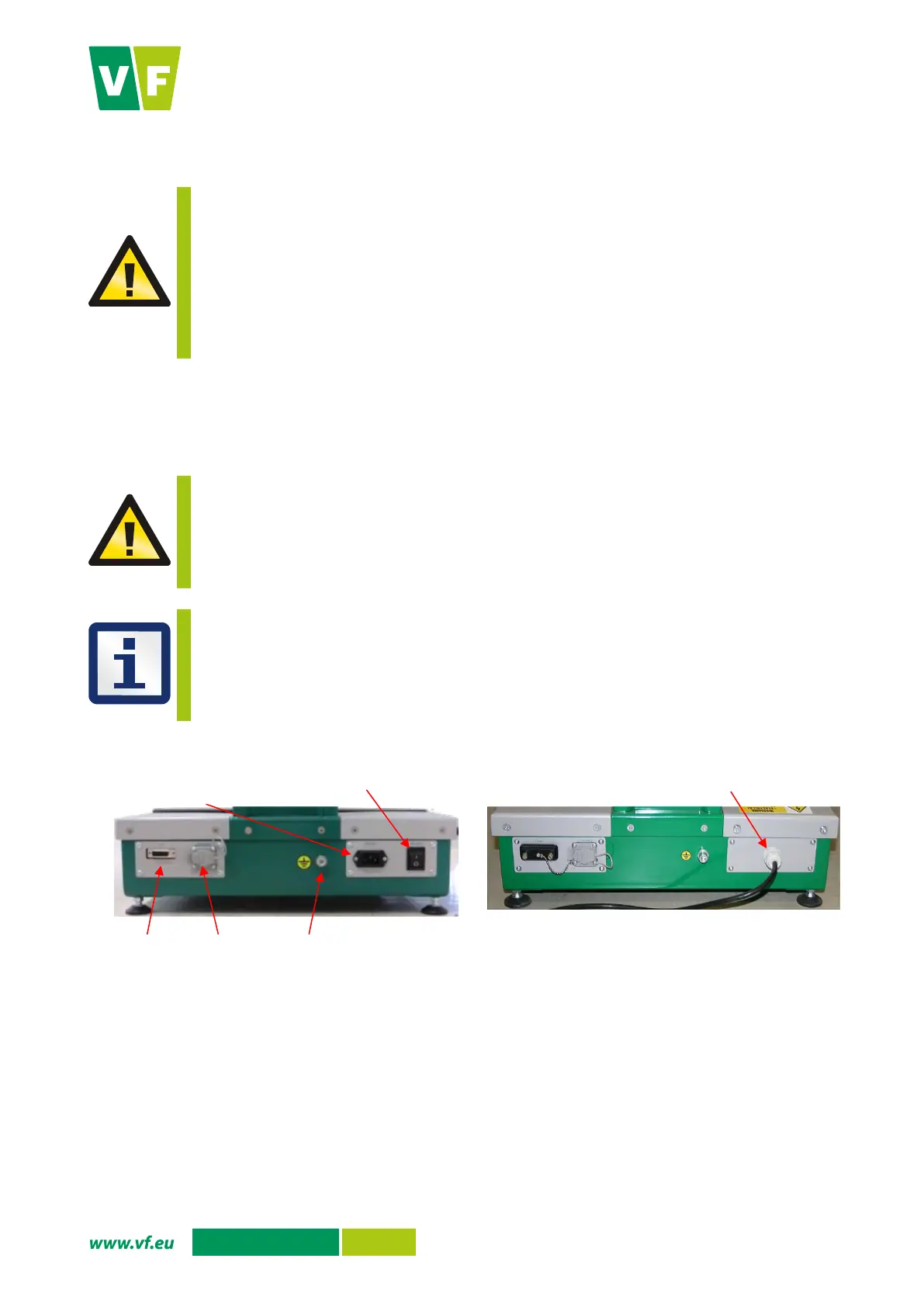

Fig. 9 Location of the main switch on the back of the base of the instrument and variant with grommet
For the instrument with the IEC supply connector, connect the line voltage to the instrument using
the respective supply cable with the connector, which is a standard part of delivery.
Connect the supply cable to the IEC connector of the instrument,
connect the supply cable to AC mains.
For the instrument with the grommet, use a supply cable with outside diameter of (5.5 ÷ 10) mm
and cross-section of the conductors of max. 2.5 mm
2
.
Run the supply cable through the grommet,
I / O Ethernet Ground point
