VHF Z4 - Opening & closing the multi-purpose drawer

Opening  closing the multi-pur-
pose drawer
NOTICE
Damaging of the machine by operating the
multi-purpose drawer inappropriately
If you open the multi-purpose drawer by force, if you
do not maintain it properly or if you do not remove
leaked cooling liquid, the machine may get damaged.
Before you pull out the multi-purpose drawer,
unlock it.
Check regularly if the area below the cooling liquid
tank is dry and remove leaked cooling liquid imme-
diately.
1.
To unlock the multi-purpose drawer,
select the lower arrow of the depicted
icon in the
Home
section of the touch-
screen.
After a couple of seconds, the drawer will open.
2.
Pull the drawer open.

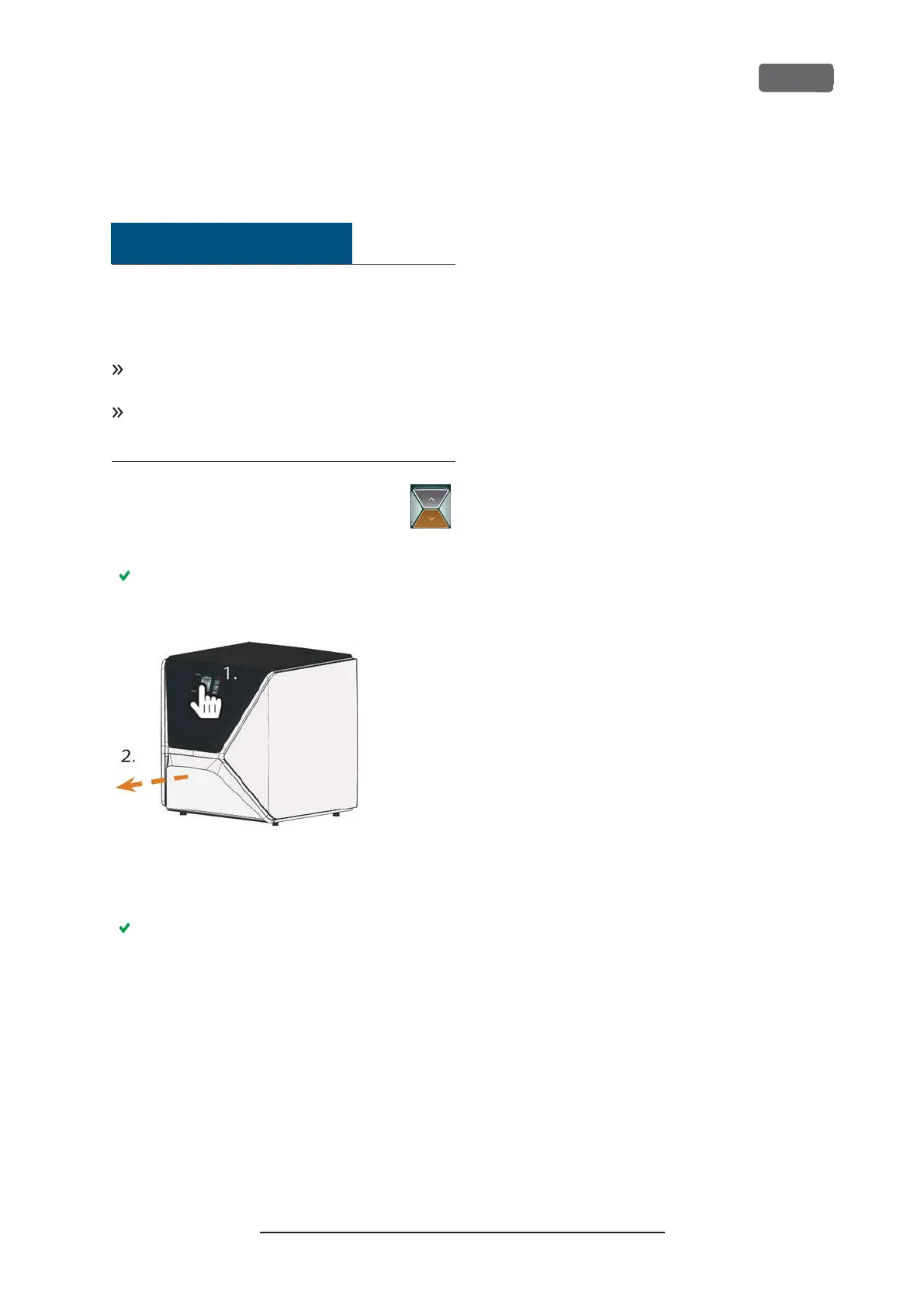

F
IG
. 31 – O
PENING THE MULTI
-
PURPOSE DRAWER
3.
To close the multi-purpose drawer, push it until it
locks back in place.
You will hear a clicking sound.
