VHF Z4 - Exchanging the cooling liquid and cleaning the tank

The Toolssection of the user interface
F
IG
. 35 – T
OOLS SECTION

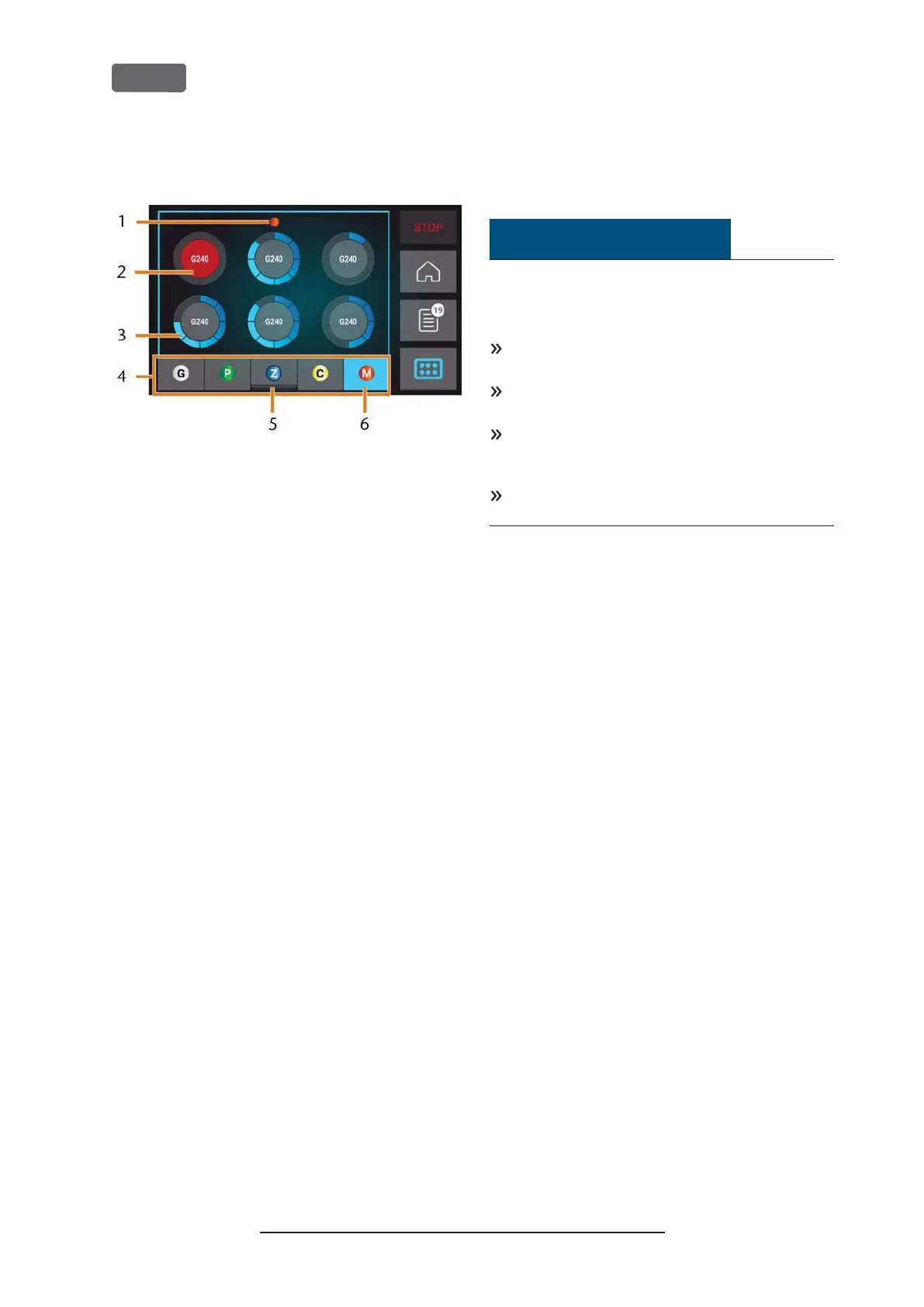

1.
Color code of the currently selected tool magazine
2.
Tool with expired tool life (red circle)
3.
Tool life value indicator (blue outer circle)
4.
Menu for selecting the tool magazine
5.
Marking for the tool magazine currently inserted in
the working chamber
6.
Marking for the tool magazine currently shown on
the touchscreen
Exchanging the cooling liquid and
cleaning the tank
NOTICE
Damages caused by wet machining with
unsuitable cooling liquid
Wet machining without suitable cooling liquid can
damage the machine, tools and blanks.
Before you execute a job, ensure that the cooling
liquid is clean and the liquid level is sufficient.
Only use cooling liquid that meets the require-
ments listed below.
Exchange used cooling liquid according to the
maintenance table. Clean the cooling liquid tank
before refilling it.
If you use a cleaning agent to clean the tank,
ensure that no residues of it remain in the tank.
The machine needs cooling liquid that meets the
following requirements:
n
Drinking water
n
No added chlorine
n
No distilled water
n
No carbonated water
Without sufficient cooling liquid in the tank, wet
machining is not possible. The machine regularly
reminds you via the touchscreen to exchange the
cooling liquid. You can find the appropriate interval in
the maintenance table.Of course, you can exchange
the cooling liquid at any time.
You need to exchange the cooling liquid in the
following cases:
n
The liquid level lies below the
min
mark.
n
The change interval in the maintenance table has
been exceeded.
n
The cooling liquid is soiled.
Every time you exchange the cooling liquid, you must
also clean the tank.
Before every job, you also have to check the strainer
basket and empty it if required.
Emptying the strainer basket
You can empty the strainer basket into a collecting
container as follows:
1.
Lift the cover off the tank.
2.
Remove the strainer basket by pushing it out of
the cover from below.
Original Operating Instructions:Z4
Version: 12/5/2018
