36: Configuring SLA reporting on Monitor
_______________________________________________________________________________________________________
_____________________________________________________________________________________________________
© Virtual Access 2017
GW1000 Series User Manual
Issue: 1.9 Page 338 of 350
To quickly view statistics for a custom range of time, use the scroll bar at the bottom of
the screen.
Move the scroll bar left or right to navigate swiftly backwards or forwards
chronologically.
Select and drag the leftmost or rightmost side of the scroll bar to specify start or end
dates.
If the scroll bar represents less than a period of one day, you can also specify the start
and end times to display on the graphs.
When you have selected a range with the scroll bar, click Go to get statistics for that
period.

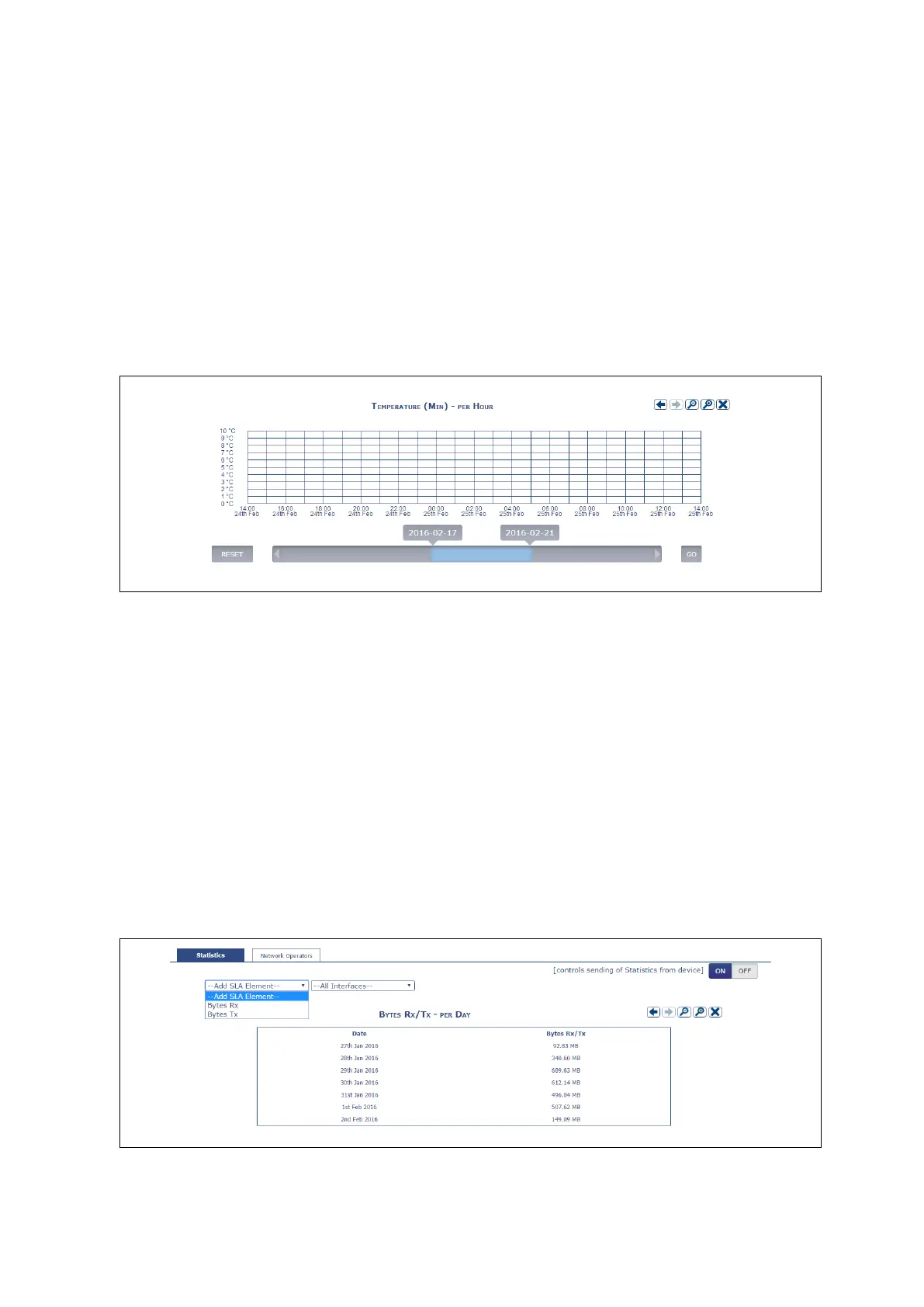

Figure 163: Graph showing specified start and end times
The following graphs can be displayed:
 Packets – received, transmitted and the difference between them
 Packet loss – average, max and min
 Signal strength – average, max and min
ï‚· Online time
 Temperature – average, max and min.
To remove a specific graph from view, click X in the top-right corner.
If you remove a graph, you can add it back to the page by selecting its name in the Add
SLA Element drop-down menu. If you have not removed any graphs, this drop-down
menu is not available.
Figure 164: interface showing the add SLA element drop-down menu
