Page 34 of 148 300004969171/B
NOTE: The Volcano system software displays numeric data in a format appropriate for
the chosen display language. For example, in English “12.01 mm” in German “12,01
mm”, in French “12,01 mm” etc. (FFR mode additionally displays Regional Settings.)
Adjust the date and time. Click the radio button below the Date Format field to
select a date format, either M/D/Y, D.M.Y, or Y-M-D. Check Use 24-Hour
Format to set the date using a 24-hour system.
Select the default boot-up mode: IVUS or FFR
Choose to enable (display) all information boxes in which Do not display again
was selected.
Click OK to save your selections or click Cancel to disregard selections.

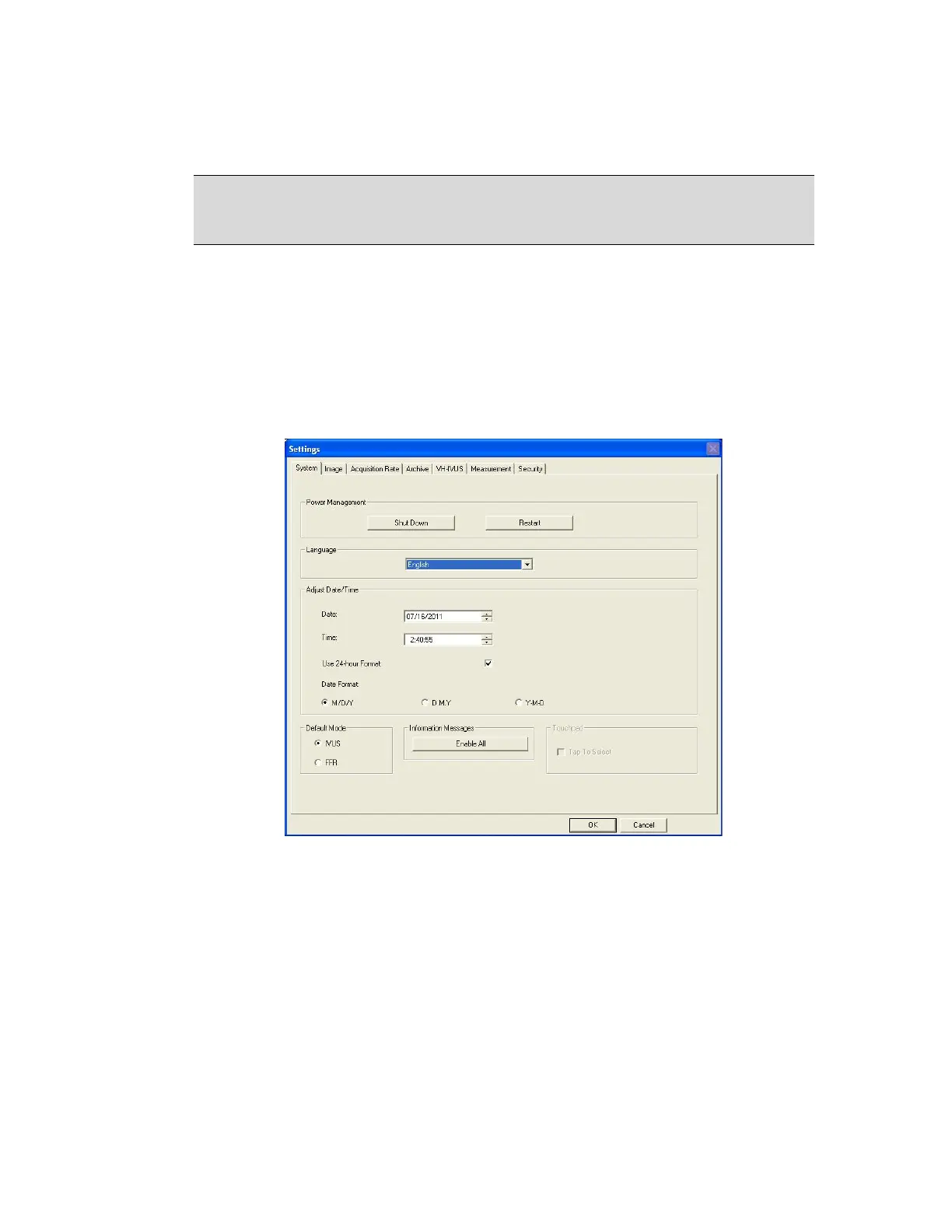

Figure 12: Settings - System Defaults
Image Tab
The Image tab allows you to do the following:
Select Ringdown Mode: NearVu or Manual
Check to show (uncheck to hide) measurement graticules on x and y axis
Select the playback loop size (total number of frames) and loop playback speed
(frames/sec) for the Rapid Review feature.
