3 Move the cursor to where you want to end the measurement and press Select (+) to
anchor it. The diameter line is drawn in color with the number 1 displaying on each
end.
4 Repeat for up to 4 diameter lines. Each line will be in a unique color. The diameter
measurement, in millimeters (mm), is displayed by number and color at the top left
corner of the image.
5 To change a line, press Select(+) on the end you wish to move and drag it to the
new position. Press Select(+) again to anchor it.
6 To delete a line, click the red Delete button. Move the scissors to the line until it is
highlighted and press Select(+).
NOTE: There is no undo for deleting a measurement line.

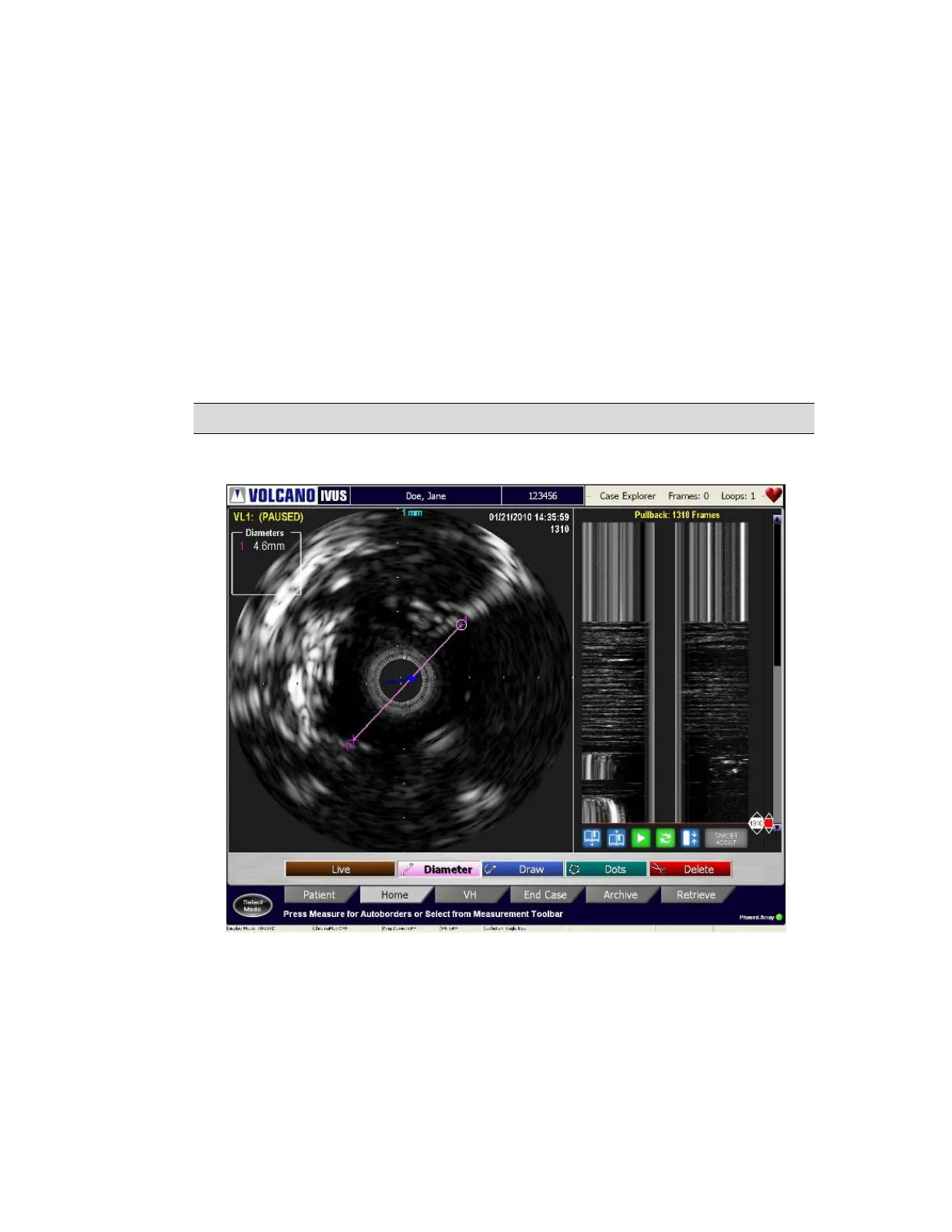

Figure 35: Measuring Vessel Diameter
Measuring Vessel Area
Area measurements can be made by two methods:
1. For automatic border generation, select the Measure button on the Home screen,
the Measure button or the Menu(-) button on the console.
