VOLKTEK NSH-5509 User Manual

VOLKTEK NSH-5509 MANAGED 8-PORT 10/100 + 1-PORT 100-FX SWITCH

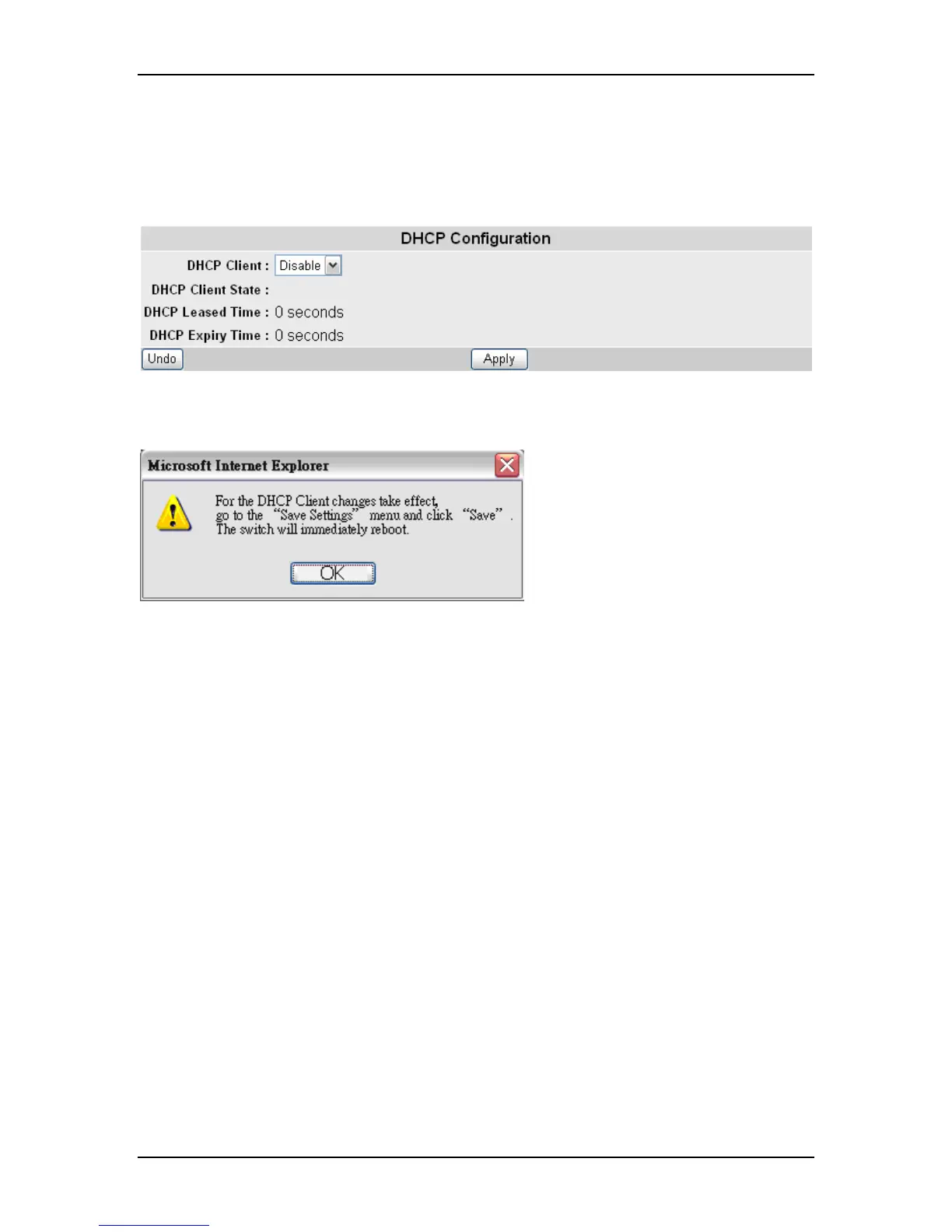

8.2.3 DHCP Configuration
Disable or enable the DHCP Client role of the Switch. Once the DHCP Client is enabled,
the IP address of the Switch is obtained from DHCP Server and you need to check the
new IP address via the Serial Console.
If you change the setting of “DHCP Client”, and click “Apply”, the system will notify you to
save the setting with a pop-up dialog box.
8.3 Configuration
Port Configuration
This section allows you to view and change the parameter settings for the individual
ports on the Switch. See screen shot and table below for adjustable parameters.
22

VOLKTEK NSH-5509 Specifications

General

Brand	VOLKTEK
Model	NSH-5509
Category	Switch
Language	English
