VOLKTEK NSH-5509 MANAGED 8-PORT 10/100 + 1-PORT 100-FX SWITCH
For each port the user must click on the checkboxes of the ports to decide which port is
allowed to switch frames from the configured port. Click on “Apply” to implement newly
entered information or click on “Undo” to restore previously saved configurations.
Enable / Disable Switch Management:
Enable: The user can manage the Switch as Web/Telnet Client or SNMP Manager via
this port.
Disable: The Switch is not manageable from Web/Telnet Client or SNMP Manager via
this port.

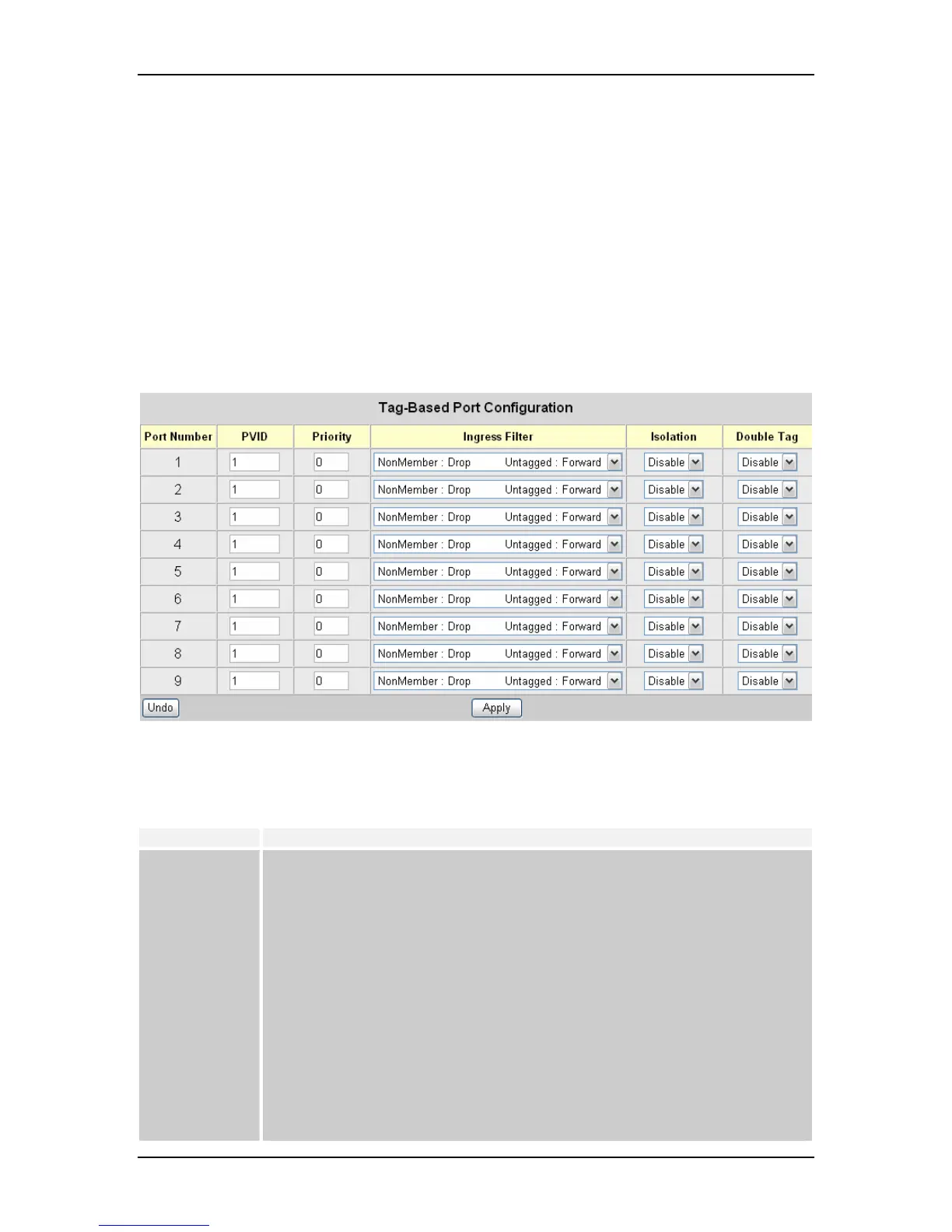

8.5.3 Tag-based VLAN Port Configuration (Port Info)
The menu “Tag-Based” is for configuration of Tag-Based VLAN. It is enabled only when
the VLAN Type is set as “Tag-Based”. The sub-menu lets users configure the way in
which each port treats the incoming frames that are marked for Tag-based VLANs.
Parameter Description
VID
Priority
Ingress Filter 1
(Non-Member)
and Filter 2
(Untagged)
Set the VLAN ID. The limit is 1 to 4095. The VLAN ID is assigned to all
untagged frames received on this port.
Set VLAN Priority. The limit given is between 0 – 7. 0 is the lowest priority
and 7 is the highest priority.
z Non-Member (1): Forward and Untagged (2): Forward
− Forward the VLAN-tagged frames that are not members of any VLAN
in which the port is participating, and forward all untagged frames.
z Non-Member (1): Drop and Untagged (2): Forward
− Drop the VLAN-tagged frames which are not members of any VLAN
of which the port is participating, and forward all untagged frames.
z Non-Member (1): Drop and Untagged (2): Drop
− Drop the VLAN-tagged frames which are not members of any VLAN
of which the port is participating, and drop all untagged frames.
30
