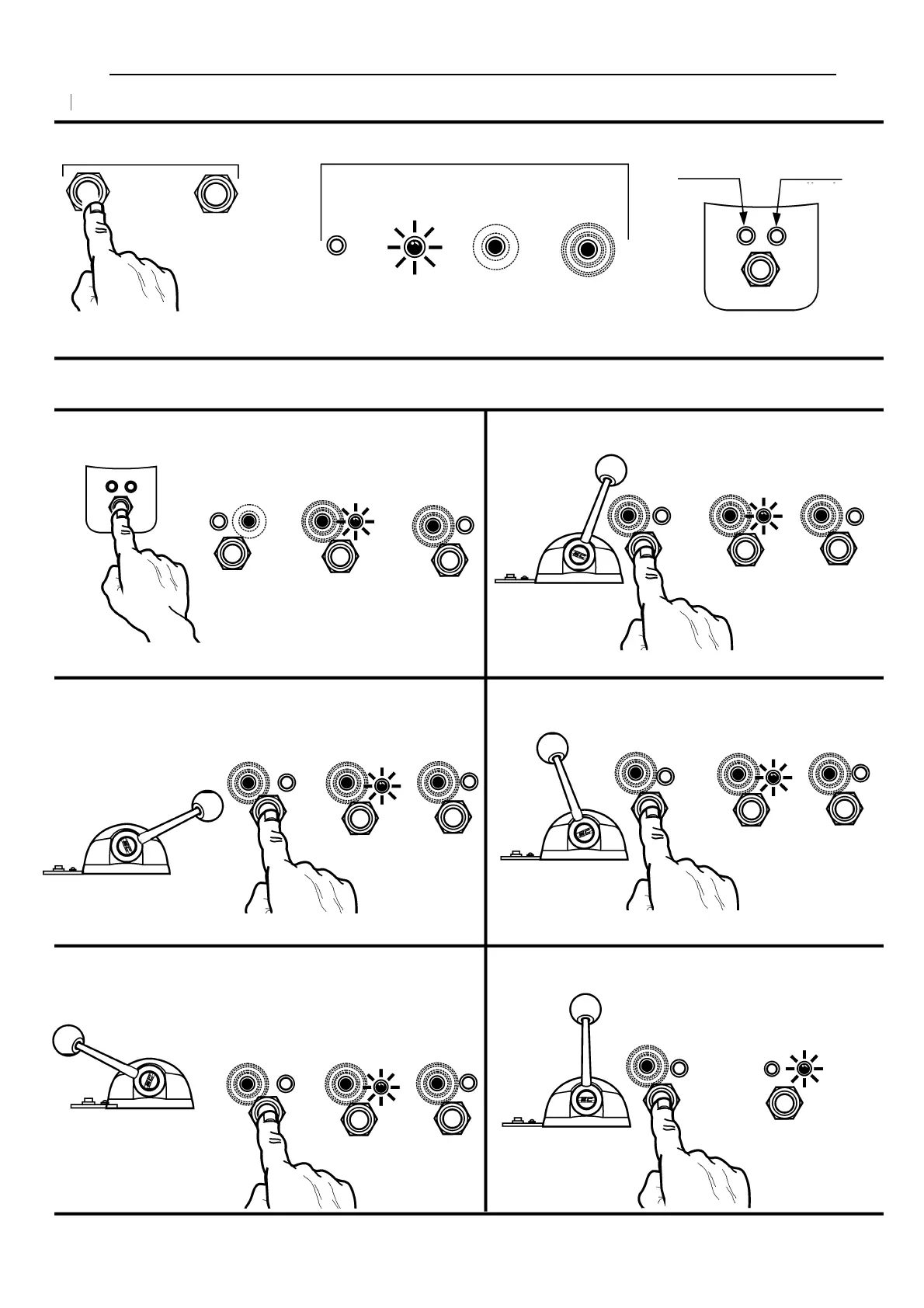

CONTROL CALIBRATION
BUTTON
PUSHED
DOWN
RELEASED
LED
DARK
3 SHORT
FLASHES
2 SEC. PAUSE
RED
LED
GREEN
LED
1. SWITCH ON MAIN SWITCH (MAIN POS.+)
2. IGNITION KEY IN DRIVING POSITION
MINIMUM
3 SEC.
3. FORWARD, 0% THROTTLE
4. FORWARD, 100% THROTTLE 5. REVERSE, 0% THROTTLE
6. REVERSE, 100% THROTTLE 7. NEUTRAL
MINIMUM 3 SEC.
CONTINUOUS
LIGHT
FLASHING
