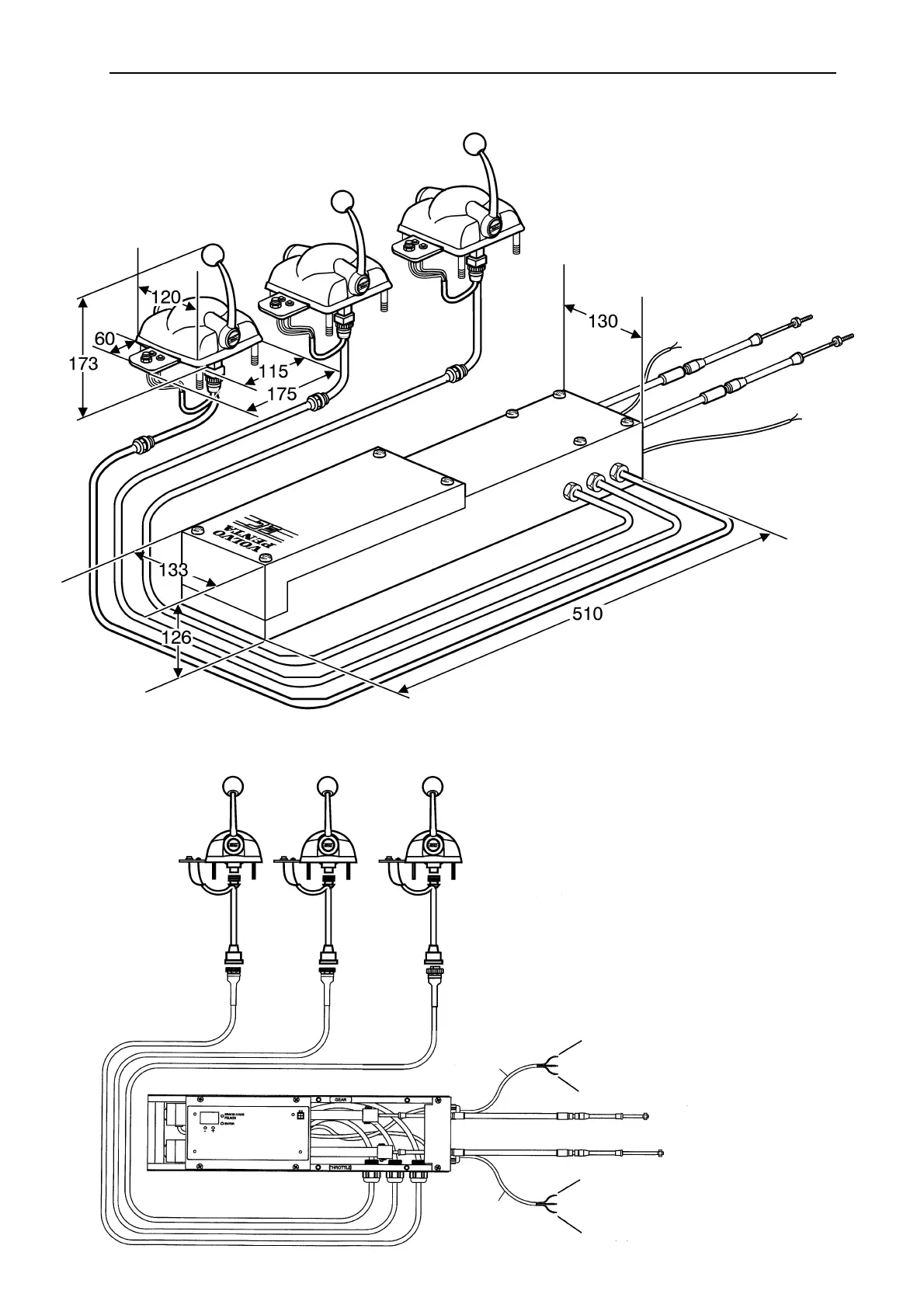

FIG.1 THE VOLVO PENTA ELECTRONIC CONTROL SYSTEM,
(DIMENSION DRAWING)
FIG. 2 DRIVE UNIT/ELECTRONIC UNIT AND CONTROLS WITH CABLES
Red (+) from start battery
Red/White (+) from service battery
Black (-) from batteries
Yellow (-) to neutral-only start relay, solenoid
(85)
Red (+) from ignition key, running position
Blue (+) from ignition key, start position
BLACK
GREY
